NBR Design A Rotary Shaft Seal 52x80x8mm [5 Pieces]
Notice: This product will be discontinued in the future

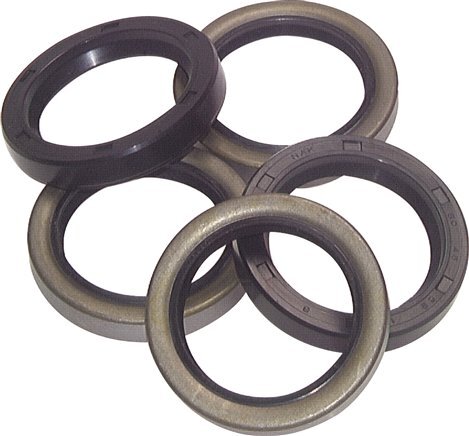

![NBR Design A Rotary Shaft Seal 52x80x8mm [5 Pieces]](http://tameson.com/cdn/shop/files/wedi.c41191f1_ca6367e6-8b3c-4962-b9fd-a96a79fef757.jpg?v=1716251247)
![NBR Design A Rotary Shaft Seal 52x80x8mm [5 Pieces]](http://tameson.com/cdn/shop/files/wedi.c41191f1_ca6367e6-8b3c-4962-b9fd-a96a79fef757.jpg?height=232&v=1716251247&width=232)
This rotary shaft seal has an internal diameter of 52 mm, an external diameter of 80 mm and a 8 mm width. It is used to seal rotating machine components.
This seal consists of an NBR ring with a reinforcement plate and a worm spring made of spring steel. The external rubber-elastic jacket provides stable sealing and tight fit. Suitable for a shaft circumferential speed of up to 14 m/s.
Changing the seal frequently prevents damage to the housing hole. The seal must be assembled according to DIN 3760 to function optimally.
Contains 5 pieces
Notice: This product will be discontinued in the future
Description
This rotary shaft seal has an internal diameter of 52 mm, an external diameter of 80 mm and a 8 mm width. It is used to seal rotating machine components.
This seal consists of an NBR ring with a reinforcement plate and a worm spring made of spring steel. The external rubber-elastic jacket provides stable sealing and tight fit. Suitable for a shaft circumferential speed of up to 14 m/s.
Changing the seal frequently prevents damage to the housing hole. The seal must be assembled according to DIN 3760 to function optimally.
Pros:
- Suitable for temperatures from -30 to 100°C (-22 to 212°F)
- There is no frictional corrosion thanks to the rubber-elastic jacket
