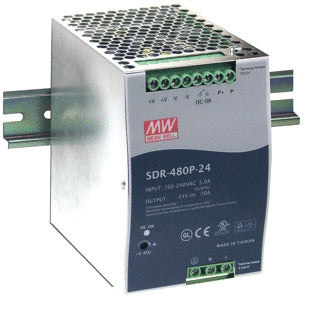

Mean Well SDR DC Power Supply 24V | SDR-480P-24

Notice: This product is discontinued

Discontinued
Mean Well SDR DC Power Supply 24V | SDR-480P-24
Mean Well SDR DC Power Supply 24V | SDR-480P-24
Image may vary slightly
See specifications for accurate information.
Reference: E266A
Brand: Mean Well
Mfr. Part: SDR-480P-24

Mean Well SDR DC Power Supply 24V | SDR-480P-24

View all

Notice: This product is discontinued

Description
Specifications
Downloads
Related products

Description

Mean Well SDR DC Power Supply 24V | SDR-480P-24

Downloads

Specifications

Voltage type of supply voltage
AC/DC
1st secondary output voltage at DC (V)
24 V to 24 V
Max. output current 1 (A)
20
Secondary voltage adjustable
Yes
Nominal value output voltage 1 (V)
24
Rated voltage AC (V)
90 V to 264 V
Rated voltage (AC 60 Hz) (V)
90 V to 264 V
Rated voltage DC (V)
127 V to 370 V
Electrical connection
Type of electric connection.
Screw connection
Output voltage stabilized
No
Power output (W)
480
Stabilized
No
Short-circuit-proof
No
Suitable for safety functions
No
SIL (IEC 61508)
None
Refurbished
No
Modular version
Yes
Wall mounting possible
No
Rail mounting possible
No
Performance level (EN ISO 13849-1)
None
Built-in height (mm)
125.2
