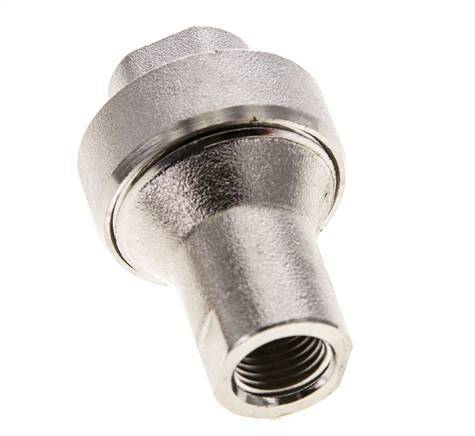

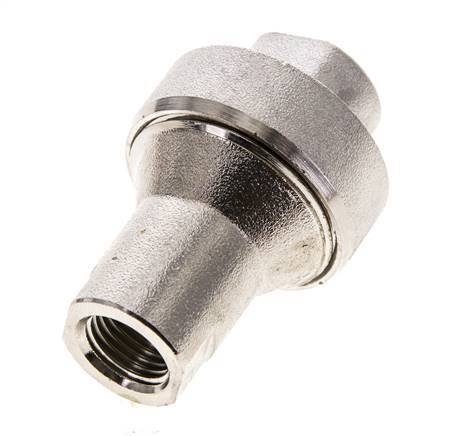

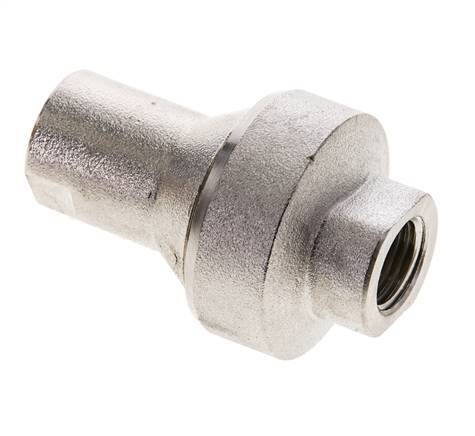

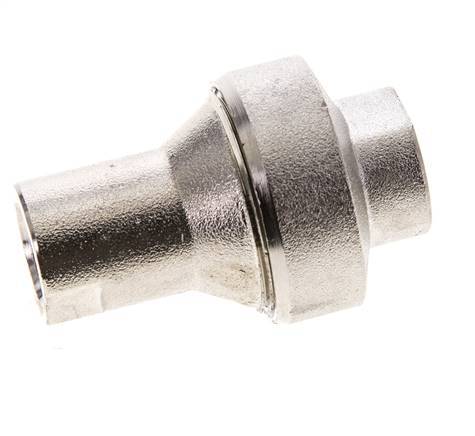

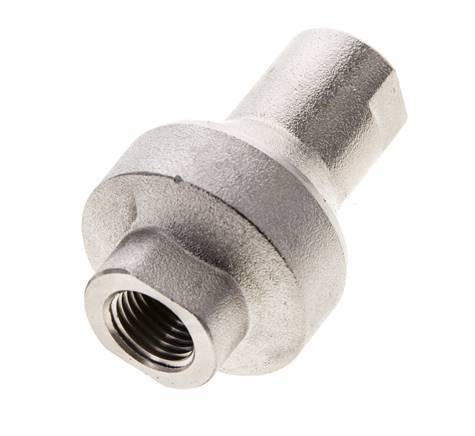

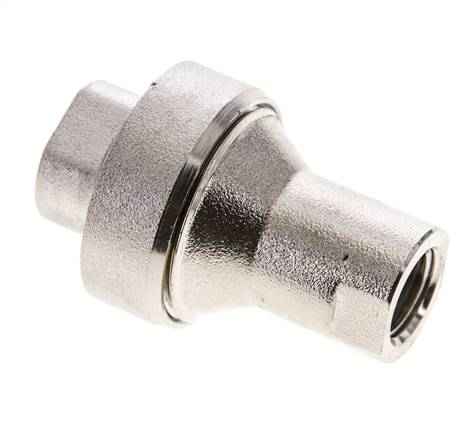

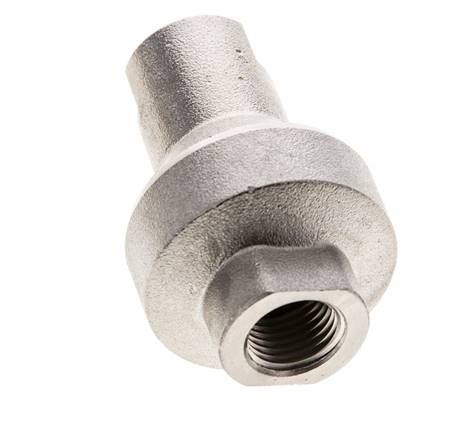

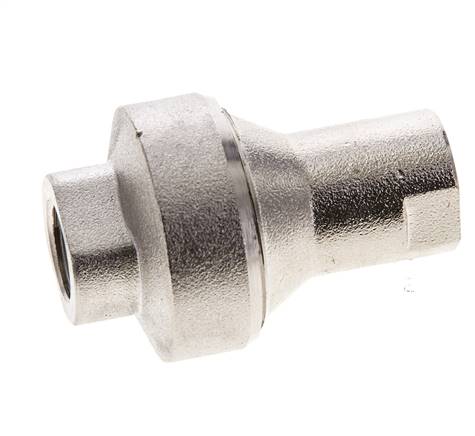

Inline Pressure Reducer 8bar/116psi Nickel-plated Brass G1/4'' 10 l/min
This inline pressure reducer is preset and non-resettable. Its body is made of nickel-plated brass and the diaphragms and seals are made from NBR. The port size is G 1/4 inch with female threads. The outlet pressure is 8 bar (116 psi), with a pressure tolerance of ±0.8. The flow rate is 10 l/min. This pressure reducer can operate within a temperature range from 4 to 60 °C (39 to 140 °F) and handle an input pressure from 0 to 10 bar (145 psi). The set pressure cannot be manipulated, ensuring reliable operation.
- Regular price
- $74.18 USD
We sell only to registered businesses
Description
This inline pressure reducer is preset and non-resettable. Its body is made of nickel-plated brass and the diaphragms and seals are made from NBR. The port size is G 1/4 inch with female threads. The outlet pressure is 8 bar (116 psi), with a pressure tolerance of ±0.8. The flow rate is 10 l/min. This pressure reducer can operate within a temperature range from 4 to 60 °C (39 to 140 °F) and handle an input pressure from 0 to 10 bar (145 psi). The set pressure cannot be manipulated, ensuring reliable operation.
Pros:
- The set pressure cannot be manipulated
