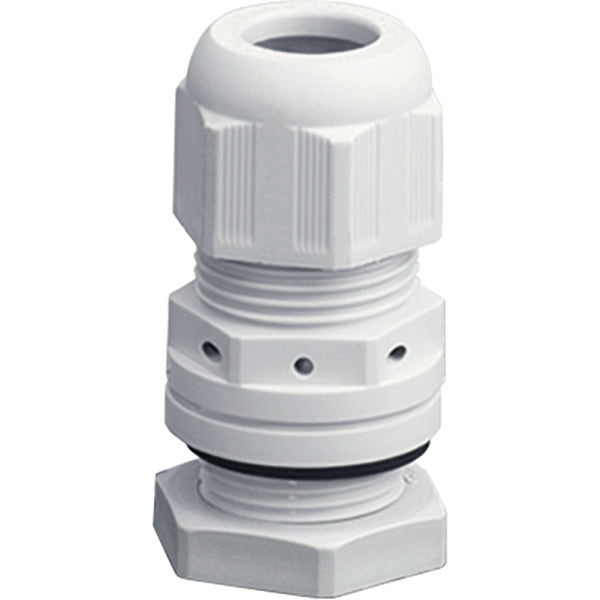

Hensel Cable Ventilation Gland M32 IP66/67 Grey - KBM 32 [2 Pieces]
![Hensel Cable Ventilation Gland M32 IP66/67 Grey - KBM 32 [2 Pieces]](http://tameson.com/cdn/shop/files/e3gyn-00.e9b2c9ac_e5b6ef80-b6af-4e8c-b0f6-91df6276efb4.jpg?v=1716364086)
![Hensel Cable Ventilation Gland M32 IP66/67 Grey - KBM 32 [2 Pieces]](http://tameson.com/cdn/shop/files/e3gyn-00.e9b2c9ac_e5b6ef80-b6af-4e8c-b0f6-91df6276efb4.jpg?height=232&v=1716364086&width=232)
The Hensel swivel cable/tube entry is straight, made of plastic, and grey. It is designed with metric thread type, nominal metric/Pg 32 thread size, 1.5mm thread pitch, and a thread length of 12mm. The key width is 36mm and hexagonal corner size is 40mm. Suitable for cable diameters of 13 - 21mm and is classified as polyamide (PA) quality. The combi-ventilation swivel comes with strain relief and a locknut, employed for condensation water reduction. It passed the glow wire test IEC 60695-2-11 960° C, designed for ambient temperature range from +70° C to -25° C and can withstand relative humidity of 50% at 40° C or 100% at 25° C. With an IP rating of IP 66/67, it's made from PA polyamide material that is heavily flame-retardant, self-extinguishing, halogen and silicone-free, black in color (RAL 7035). The Hensel KBM type is M32 size.
Contains 2 pieces
- Regular price
- $97.98
Description
The Hensel swivel cable/tube entry is straight, made of plastic, and grey. It is designed with metric thread type, nominal metric/Pg 32 thread size, 1.5mm thread pitch, and a thread length of 12mm. The key width is 36mm and hexagonal corner size is 40mm. Suitable for cable diameters of 13 - 21mm and is classified as polyamide (PA) quality. The combi-ventilation swivel comes with strain relief and a locknut, employed for condensation water reduction. It passed the glow wire test IEC 60695-2-11 960° C, designed for ambient temperature range from +70° C to -25° C and can withstand relative humidity of 50% at 40° C or 100% at 25° C. With an IP rating of IP 66/67, it's made from PA polyamide material that is heavily flame-retardant, self-extinguishing, halogen and silicone-free, black in color (RAL 7035). The Hensel KBM type is M32 size.
Contains 2 pieces
