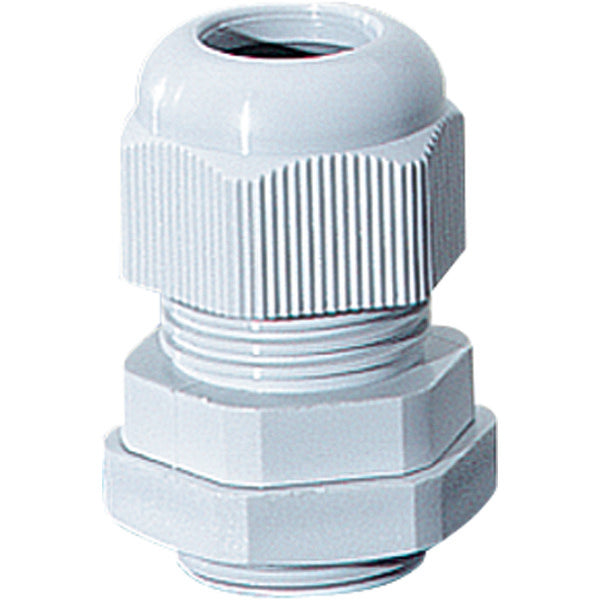

Hensel Cable Gland IP67 M40 Grey With Filament Test - AKM 40 [10 Pieces]

Hensel Cable Gland IP67 M40 Grey With Filament Test - AKM 40 [10 Pieces]
Hensel Cable Gland IP67 M40 Grey With Filament Test - AKM 40 [10 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3GXF-X10
Brand: Hensel
Mfr. Part: AKM 40

The Hensel cable gland features a straight cable/tube entry made of gray plastic with a metric type of thread. The nominal thread size is metric/Pg 40, the thread pitch is 1.5mm, and the thread length is 10mm. The item also has a key width of 46mm and a hexagonal angle size of 50.5mm, suitable for a cable diameter of 19 - 28mm. The quality class is polyamide (PA). The cable gland comes with strain relief and counter nut. It passes glow-wire test per IEC 60 695, offering an operating temperature of up to 70°C and as low as -25°C, with 50% relative humidity at 40°C or 100% at 25°C. Its IP protection is rated at IP66/IP67/IP69 per IEC 60529. The color is gray and manufactured from flame-retardant, self-extinguishing PA-polyamide, free from halogens and silicones. Manufactured by Hensel, model AKM, size M40.

Contains 10 pieces

View all
Note: product cannot be returned
$143.96
excl VAT
In stock +23 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 23 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 25 - 26 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Hensel cable gland features a straight cable/tube entry made of gray plastic with a metric type of thread. The nominal thread size is metric/Pg 40, the thread pitch is 1.5mm, and the thread length is 10mm. The item also has a key width of 46mm and a hexagonal angle size of 50.5mm, suitable for a cable diameter of 19 - 28mm. The quality class is polyamide (PA). The cable gland comes with strain relief and counter nut. It passes glow-wire test per IEC 60 695, offering an operating temperature of up to 70°C and as low as -25°C, with 50% relative humidity at 40°C or 100% at 25°C. Its IP protection is rated at IP66/IP67/IP69 per IEC 60529. The color is gray and manufactured from flame-retardant, self-extinguishing PA-polyamide, free from halogens and silicones. Manufactured by Hensel, model AKM, size M40.

Contains 10 pieces

Downloads

Specifications

Thread type
Metric
Nom. thread size metric/PG
40
Pitch thread (mm)
1.5
Thread length (mm)
10
Wrench width (mm)
46
Hexagon angular dimension (mm)
50.5
