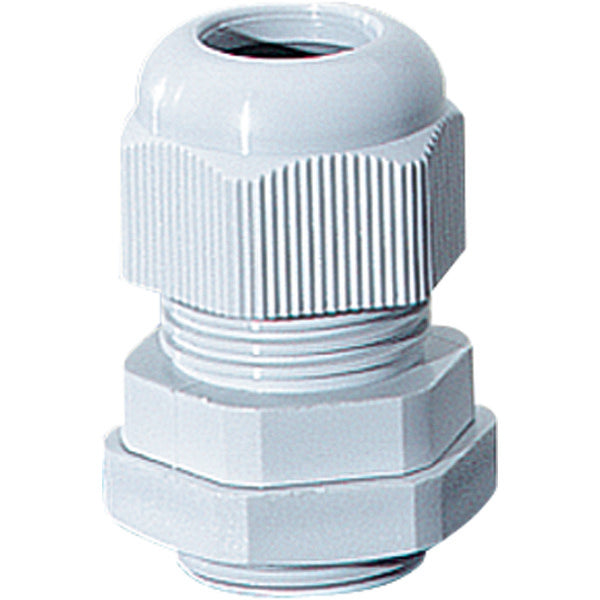

Hensel Cable Gland IP67 M32 Grey Glow Wire Test - AKM 32 [20 Pieces]
![Hensel Cable Gland IP67 M32 Grey Glow Wire Test - AKM 32 [20 Pieces]](http://tameson.com/cdn/shop/files/e3gxe-00.974c7f0a_ff36d228-6667-4168-a61b-f36d407d06bb.jpg?v=1716321384)
![Hensel Cable Gland IP67 M32 Grey Glow Wire Test - AKM 32 [20 Pieces]](http://tameson.com/cdn/shop/files/e3gxe-00.974c7f0a_ff36d228-6667-4168-a61b-f36d407d06bb.jpg?height=232&v=1716321384&width=232)
The Hensel cable gland comes with strain relief and locknut. It's made of gray, hard-to-ignite, self-extinguishing PA-polyamide that's free from halogen and silicon. It's suitable for cable diameters of 15 - 21mm, thread type metric, nominal thread size metric/Pg 32, thread pitch 1.5mm, thread length 10mm, nominal width across flats 36mm, hexagonal angle size 39.7mm, and quality class polyamide (PA). It passes the glow-wire test according to IEC 60 695-2-11 at 960°C. It's designed for both indoors and outdoors use, with an ambient temperature range of -25°C to 70°C, at a relative humidity of 50% at 40°C or 100% at 25°C. It also has a high protection degree according to IEC 60529 IP 66 / IP 67 / IP 69. Its color is gray, RAL 7035. The type is AKM size: M32.
Contains 20 pieces
- Regular price
- $113.34 USD
We sell only to registered businesses
Description
The Hensel cable gland comes with strain relief and locknut. It's made of gray, hard-to-ignite, self-extinguishing PA-polyamide that's free from halogen and silicon. It's suitable for cable diameters of 15 - 21mm, thread type metric, nominal thread size metric/Pg 32, thread pitch 1.5mm, thread length 10mm, nominal width across flats 36mm, hexagonal angle size 39.7mm, and quality class polyamide (PA). It passes the glow-wire test according to IEC 60 695-2-11 at 960°C. It's designed for both indoors and outdoors use, with an ambient temperature range of -25°C to 70°C, at a relative humidity of 50% at 40°C or 100% at 25°C. It also has a high protection degree according to IEC 60529 IP 66 / IP 67 / IP 69. Its color is gray, RAL 7035. The type is AKM size: M32.
Contains 20 pieces
