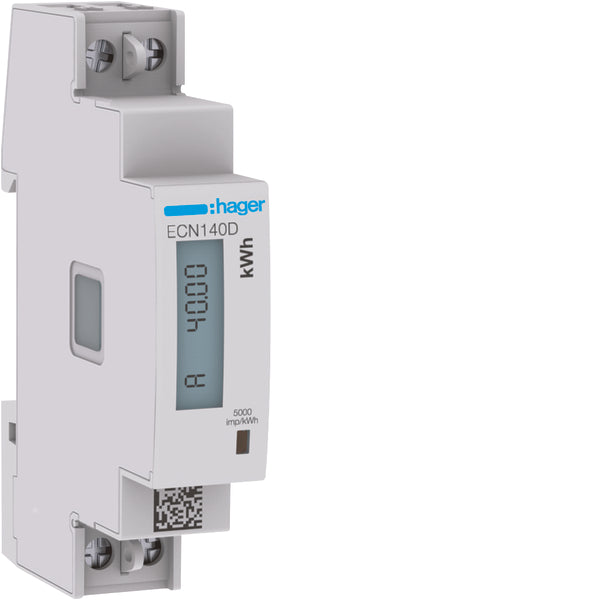

Hager Electricity Meter - ECN140D

Hager Electricity Meter - ECN140D
Hager Electricity Meter - ECN140D
Image may vary slightly
See specifications for accurate information.
Reference: T23K5
Brand: Hager
Mfr. Part: ECN140D

This KWH meter from Hager is a 1-phase energy meter suitable for direct metering, with single tariff. In addition, the maximum current is 40A. The 1-phase energy meter with direct connection can be connected directly to measure consumption in sub-distributions. The 7 digit LCD display (5 digits + 2 decimal places) is backlit and shows readings + kWh. The 1-phase energy meter also features a backstop. The KWH meter displays a message when the meter malfunctions. Furthermore, the Hager ECN140D KWH meter periodically stores meter readings.

View all
$84.01 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This KWH meter from Hager is a 1-phase energy meter suitable for direct metering, with single tariff. In addition, the maximum current is 40A. The 1-phase energy meter with direct connection can be connected directly to measure consumption in sub-distributions. The 7 digit LCD display (5 digits + 2 decimal places) is backlit and shows readings + kWh. The 1-phase energy meter also features a backstop. The KWH meter displays a message when the meter malfunctions. Furthermore, the Hager ECN140D KWH meter periodically stores meter readings.

Downloads

Product data sheet (EN)
pdf
Download
Other Documentation (EN)
pdf
Download

Specifications

Type of meter
Electronic
Nominal current (In)
40 A
Max. current (Imax)
40 A
Nominal voltage (Un) N-L
184..276 V
Nominal voltage (Un) L-L
0..0 V
Frequency
45..65 Hz
Accuracy class
B
Pole type
Single phase
Model
Direct measurement
Energy type
Effective power
Suitable for
Purchase
Tariff type
One-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Pulse output
Optic
Pulse type
S0
Type of indication
Digital
Mounting method
DRA (DIN-rail adapter)
