Hager Current Transformer 200/5A | SRA02005

Notice: This product is discontinued

Discontinued

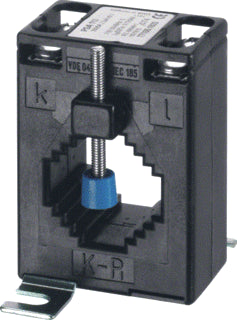

Hager Current Transformer 200/5A | SRA02005
Hager Current Transformer 200/5A | SRA02005
Image may vary slightly
See specifications for accurate information.
Reference: E26DQ
Brand: Hager
Mfr. Part: SRA02005

Hager current measuring transformer. Primary measuring current 200A, secondary rated 5A. Secondary (measuring), apparent power 2.5VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 20mm, width opening 29.5mm. Opening diameter 20mm. Overcurrent limiting factor FS 5.

View all

Notice: This product is discontinued

Description
Specifications
Downloads

Description

Hager current measuring transformer. Primary measuring current 200A, secondary rated 5A. Secondary (measuring), apparent power 2.5VA. Version overshooting current measurement transformer. Accuracy class 1. Height opening 20mm, width opening 29.5mm. Opening diameter 20mm. Overcurrent limiting factor FS 5.

Downloads

Specifications

Primary rated current (A)
200
Secondary rated current (A)
5
Secondary rated apparent power (VA)
2.5
Secondary connection
Screw connection
Over current limiting factor
FS 5
Accuracy class
EV001823
Calibrated
No
Number of primary inputs
1
Height opening (mm)
20 mm to 20 mm
Width opening (mm)
29.5 mm to 29.5 mm
Model
Attachable current transformer
With shock protection
Yes
Opening diameter (mm)
20
Snap mounting
No
With copper rail
No
