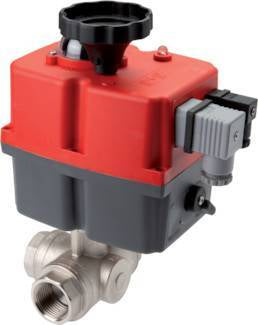

G3'' L-port 24-240V AC/DC 3-Way Stainless steel Ball valve

This modulating electrical actuator is offered in combination with a 3-way ball valve. It can turn the valve from 0-90 degrees in 29 seconds with an operating torque of 85 Nm (higher break torque so please see the manual). It requires a supply voltage of 24-240 V AC/DC, has a duty cycle of 75%, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The actuator is mounted on the ball valve via the ISO 5211 F07 or F10 flange (17mm). The 3-way stainless steel valve has three connection points of G3". The medium flows through a 60 bore and the temperature can be between -20 – 180 °C under 40 bars. It has a spindle seal material of PTFE. With the actuator’s durable polyamide (PA) housing, it gives the unit a protection of IP67 for an environment temperature of -20 till 70 °C. Before connecting the actuator, please read the manual carefully.

Pros:

• It has a robust IP67 housing
• As standard, it does have a manual operation cogwheel for manually turning the valve if needed
• It has a clear visual position indicator to see the valve’s state

Cons:

• The actuator is not equipped with a battery safety return (BSR) but can be operated manually if power fails
• In comparison to a pneumatic actuator of the same size, the operating speed is slower

J4C series

BL3SA Ball valve

The BL3SA series ball valves are reliable 3-way ball valves with a L-port or T-port. The housing is made of stainless steel, he ball is also made of stainless steel and the valve seats are made of PTFE/FKM. The valve is suitable for various aggressive and corrosive media up to a maximum of 63 bar. Suitable for temperatures between -20 and 180 degrees Celsius and available from size G 1/4" till G 4". Ball valves from the BL3SA series all have an ISO 5211 top flange (from F03 to max. F10) which makes the mounting of an actuator possible.

J4C Actuator

The J4C high voltage electric valve actuators from manufacturer J+J offers an impressive list of standard features that include protection against damage from over-torque or condensation. Actuators are also available with different options like fail-safe BSR (Battery Safety Return) or modulating called DPS (Digital Positioning System). The series has an operating torque range between 20-300 Nm.
The J4C fail-safe or modulating electric actuator is the same as the standard on-off J4C actuator but a BSR and/or a DPS kit is added inside the actuator. The J4C BSR fail-safe actuator can be set to fail open or fail closed. The J4C DPS modulating actuator can be controlled with 4-20 mA or 0-10 V (0-10 V on request).

Spare parts

Ball valve: BL3SAL-300
Actuator: V2S97

Note: This product is delivered in separate parts, but with the required mounting accessories.
