Rp 1'' T-Port 3-Way Stainless Steel Electric Ball Valve 230 V AC

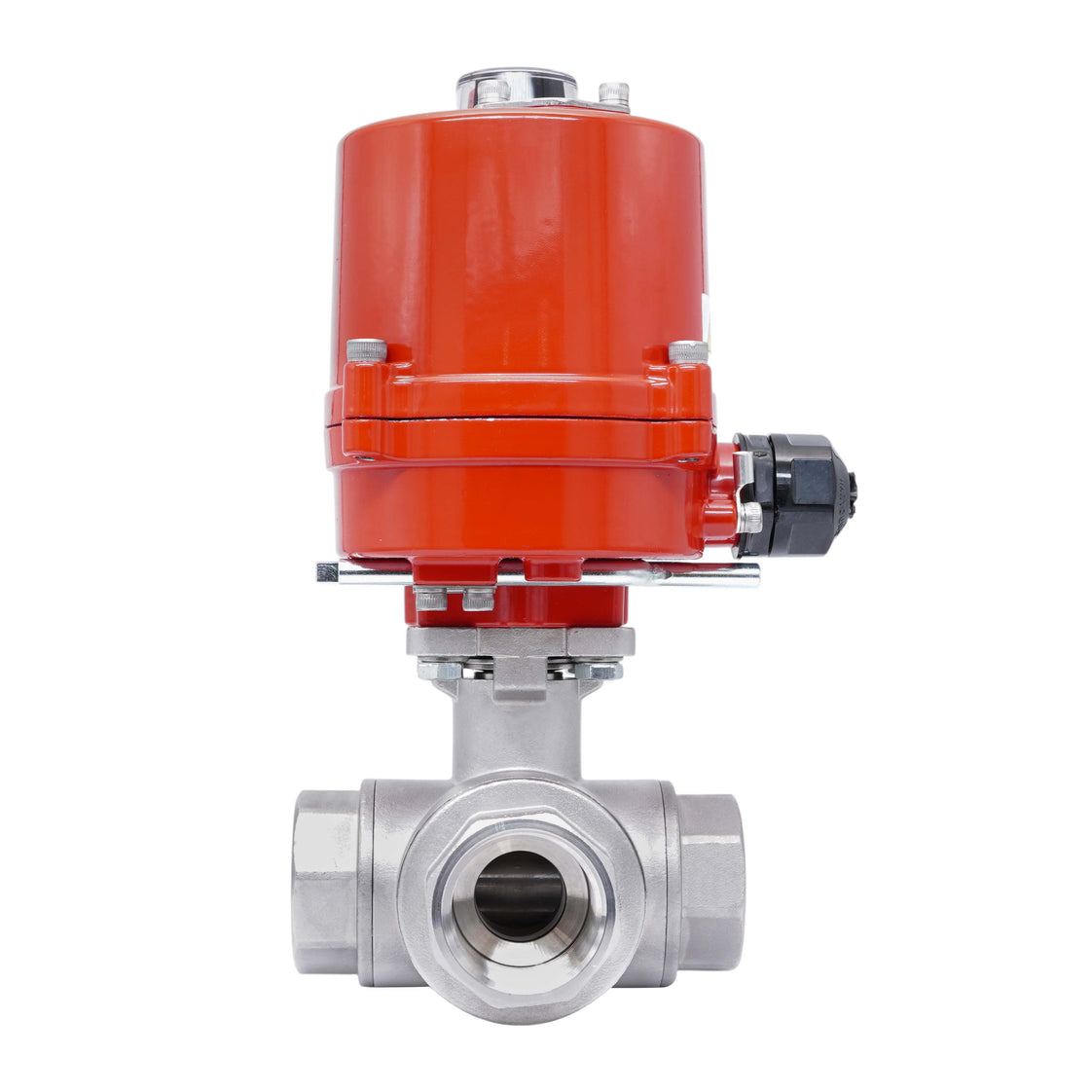

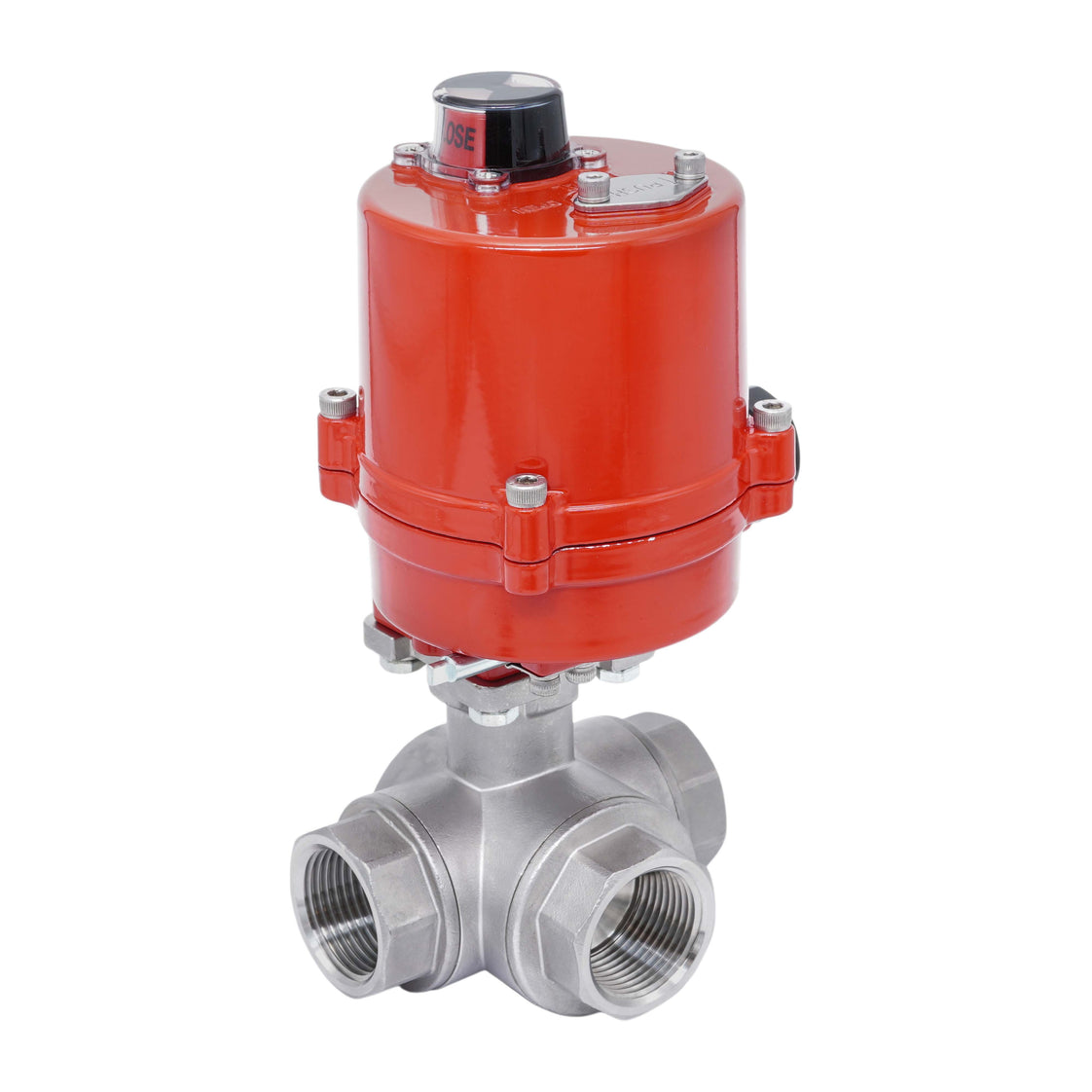

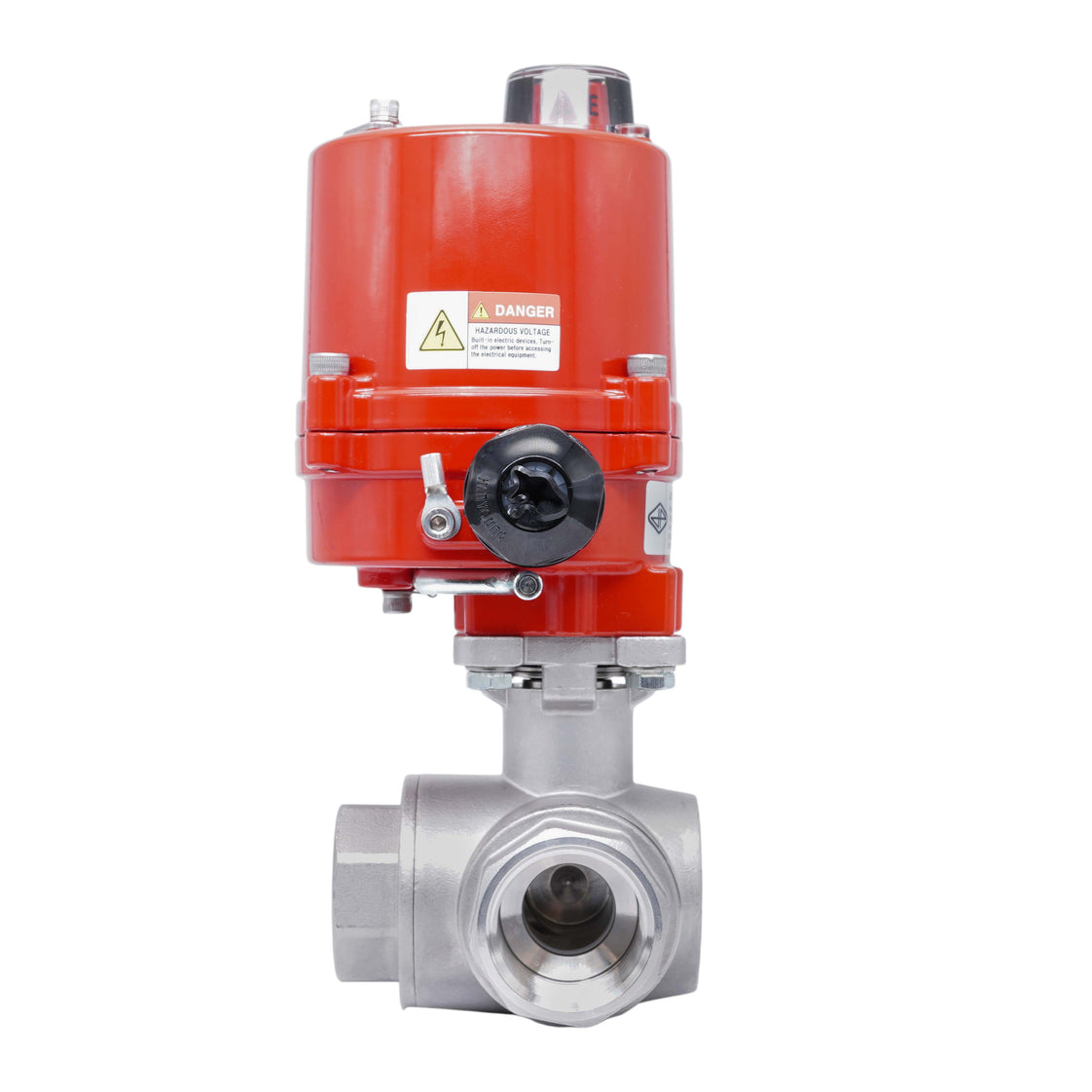

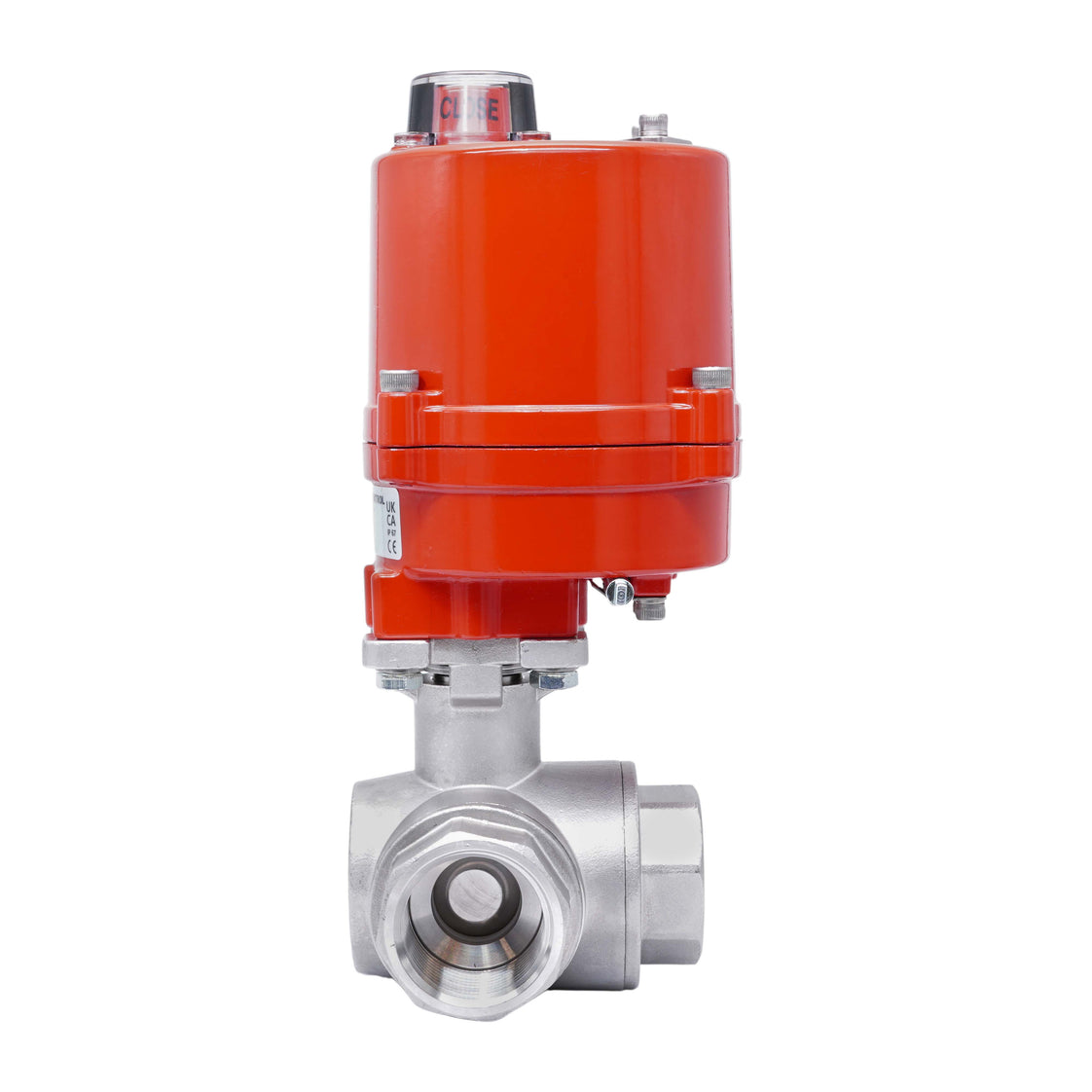

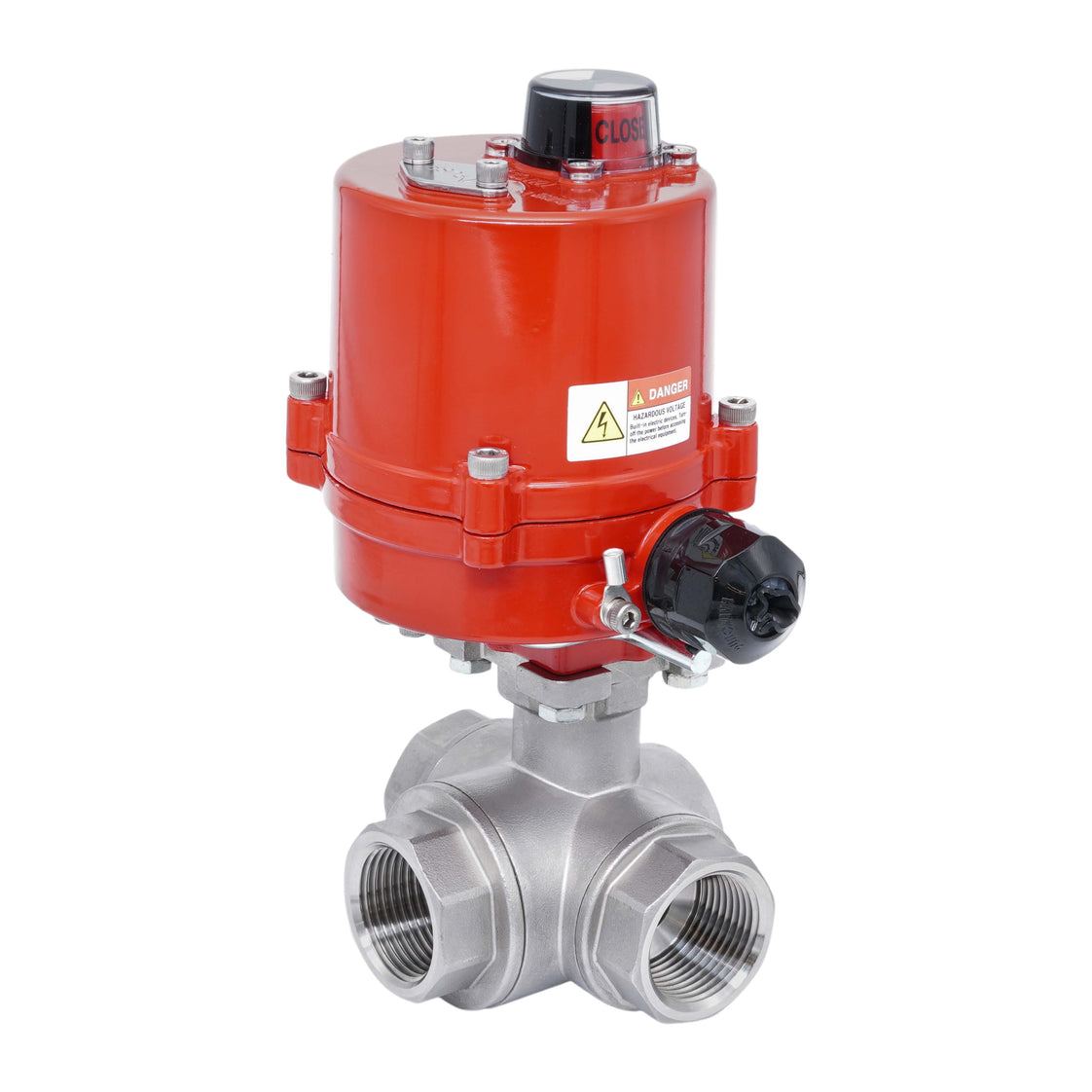

This JP Fluid Control electrical actuator is offered in combination with a TamesonPRO 3-way ball valve. The valve has Rp 1'' pipe threads (internal thread, BSPT). The housing of the valve is made of stainless steel with a stainless steel ball and PTFE sealing. The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 40 Nm torque. The valve rotates from 0 to 90 degrees in 8 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
The valve has a 20 mm bore, with Kv value of 27.3 m3/h (Cv = 31.6 gpm). Kv expresses the flow rate of water in m3/h at a pressure drop of one bar. The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 210°C (-20°F up to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media.- Regular price
- $489.76 USD
We sell only to registered businesses
Description
This JP Fluid Control electrical actuator is offered in combination with a TamesonPRO 3-way ball valve. The valve has Rp 1'' pipe threads (internal thread, BSPT). The housing of the valve is made of stainless steel with a stainless steel ball and PTFE sealing. The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 40 Nm torque. The valve rotates from 0 to 90 degrees in 8 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
The valve has a 20 mm bore, with Kv value of 27.3 m3/h (Cv = 31.6 gpm). Kv expresses the flow rate of water in m3/h at a pressure drop of one bar. The valve is rated up to 69 bar at 20°C (1000 psi at 68°F). It is suitable for temperatures from -29°C up to 210°C (-20°F up to 410°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media.Pros:
- Robust stainless steel ball valve with Rp 1'' pipe threads
- Switching time only 8 seconds
- Strong IP67 actuator housing
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
Bore and circuit function
The ball has a T-port. Rotating the ball 90 degrees allows you to switch between two circuits or can the three pipes be connected. The ports overlap during rotation.
Schematical drawing of the circuit function of T-port valves
Applications
This valve can be used in combination with gases and fluids. The valve is durable and suitable for different aggressive and corrosive media. The maximum pressure at room temperature is 69 bar (1000 psi), at higher temperatures the maximum allowed temperature decreases. The direction of pressure is not important, the direction of flow may be in any direction. The temperature range of the medium lies between -29°C to 210°C (-20°F to 410°F). At high temperatures, it is recommended to install the valve in a ventilated area. It is allowed to install the valve in a humid environment provided that all parts, like an appropriate electrical cable, are correctly fixed. Ball valves can be used with light contaminated fluids. Some examples of applications for this valve are HVAC, irrigation, industrial automation, water management.
Assembly
Make sure that the position of the ball and the actuator are properly set before assembly. The actuator is provided with two adapters to connect the actuator to the valve shaft. Mount the actuator to the valve with the provided bolts. There should be no play between both flange. Use our fittings range for the connection between the pipe and the valve.
Note: This product is delivered in separate parts, but with the required mounting accessories.
