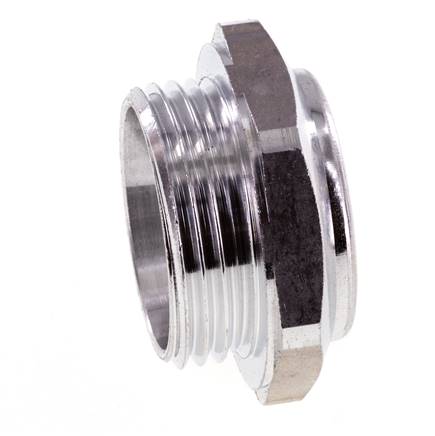

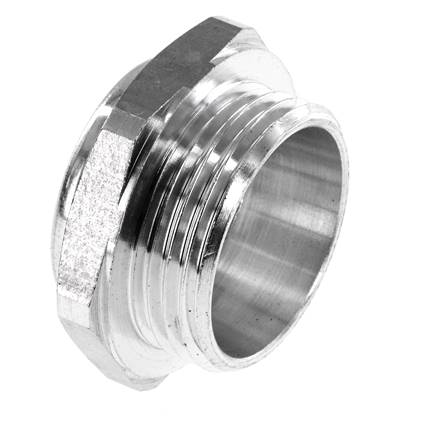

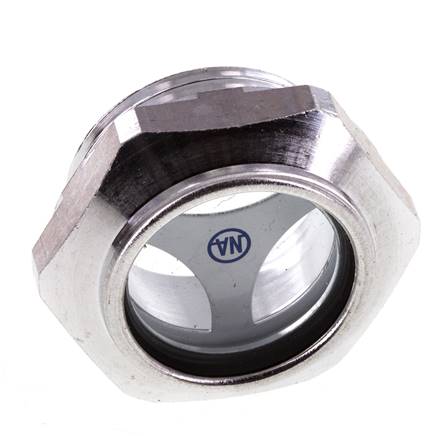

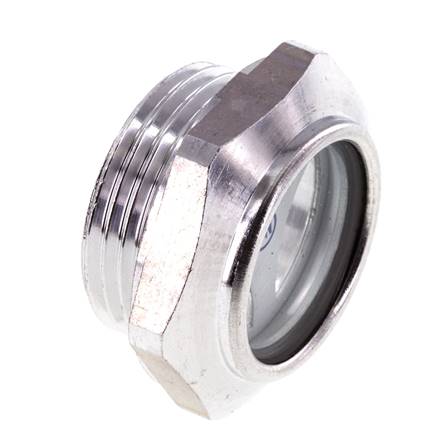

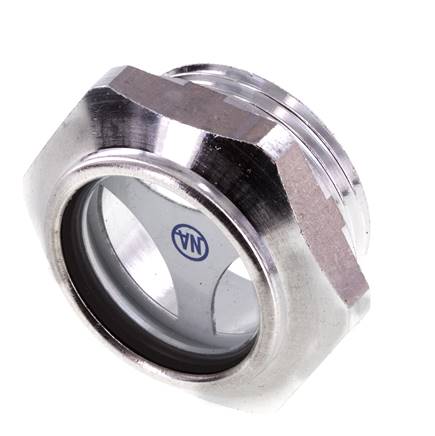

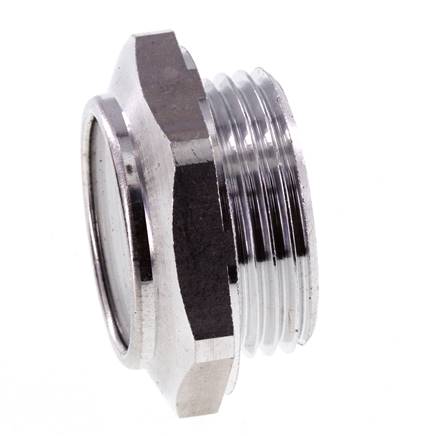

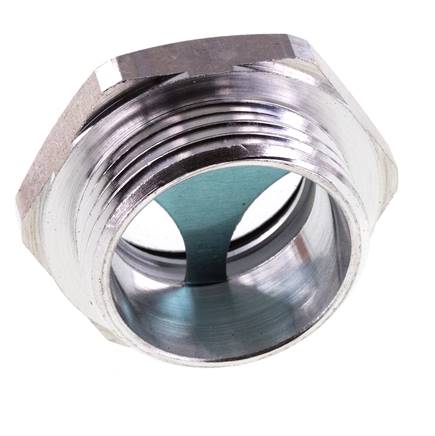

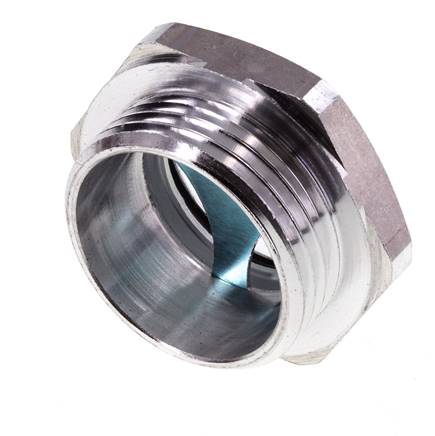

G1'' Oil Level Sight Glass with Reflector 15bar
Oil level sight glass with reflector for oil reservoirs, G1 BSPP male thread. Thread length 10 mm, hex SW 40. Aluminium body with natural glass window, 0 to 15 bar, -10 to +250 °C, for mineral oil. Supplied with an aluminium sealing ring.
- Regular price
- $30.34 USD
We sell only to registered businesses
Description
Screw it into a threaded port in the reservoir wall at the height of the oil level you want to monitor; the reflector behind the glass makes the oil level easy to see.
Pros:
- Reflector makes the oil level easy to read
- Natural glass window for oil temperatures up to +250 °C
- Supplied with an aluminium sealing ring
Cons:
- Shows the level at one point only - for a level range, choose a column level indicator
Series:
Oil level sight glasses with reflector for showing the oil level in oil reservoirs. Aluminium body with a natural glass window, for mineral oil from -10 to +250 °C. The range covers G1/4 to G2 BSPP male threads; sizes up to G1-1/4 are rated 0 to 15 bar, G1-1/2 and G2 up to 30 bar. Each sight glass is supplied with an aluminium sealing ring.
