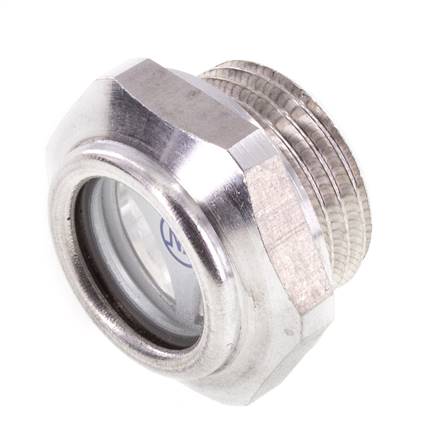

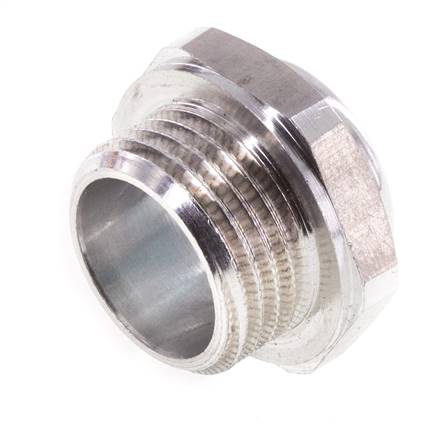

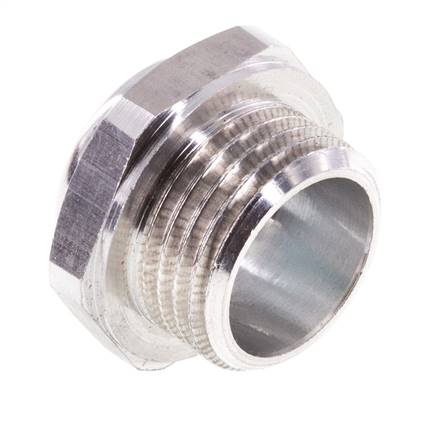

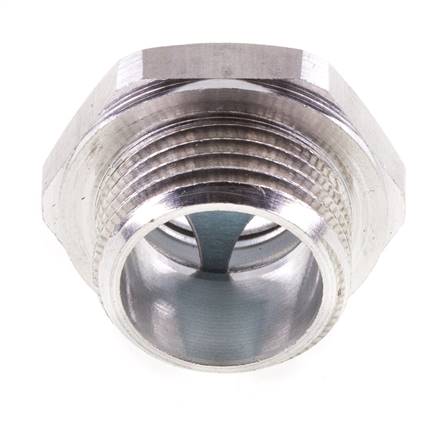

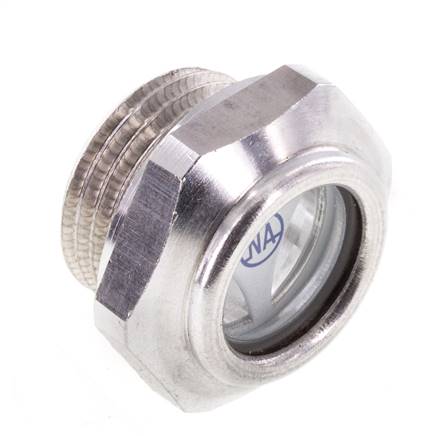

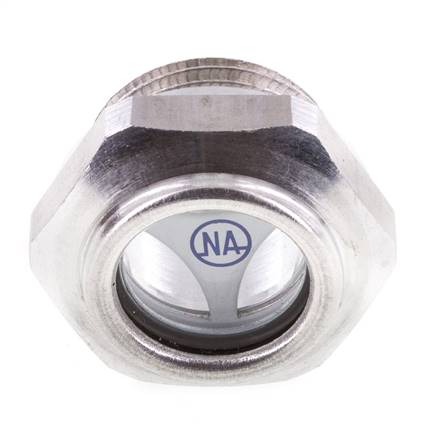

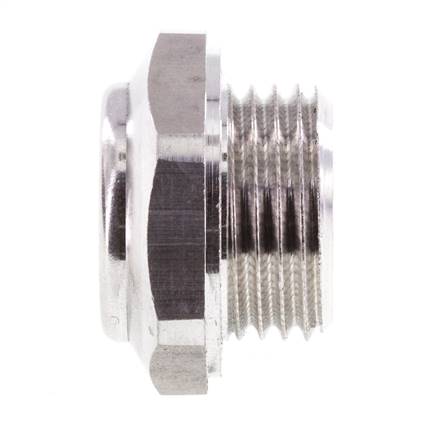

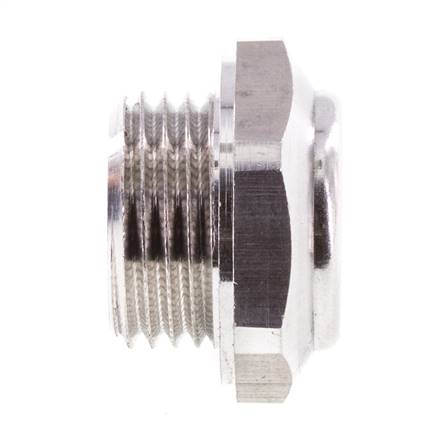

G1/2'' Oil Level Sight Glass with Reflector 15bar
Oil level sight glass with reflector for oil reservoirs, G1/2 BSPP male thread. Thread length 9 mm, hex SW 27. Aluminium body with natural glass window, 0 to 15 bar, -10 to +250 °C, for mineral oil. Supplied with an aluminium sealing ring.
- Regular price
- $18.40 USD
We sell only to registered businesses
Description
Screw it into a threaded port in the reservoir wall at the height of the oil level you want to monitor; the reflector behind the glass makes the oil level easy to see.
Pros:
- Reflector makes the oil level easy to read
- Natural glass window for oil temperatures up to +250 °C
- Supplied with an aluminium sealing ring
Cons:
- Shows the level at one point only - for a level range, choose a column level indicator
Series:
Oil level sight glasses with reflector for showing the oil level in oil reservoirs. Aluminium body with a natural glass window, for mineral oil from -10 to +250 °C. The range covers G1/4 to G2 BSPP male threads; sizes up to G1-1/4 are rated 0 to 15 bar, G1-1/2 and G2 up to 30 bar. Each sight glass is supplied with an aluminium sealing ring.
