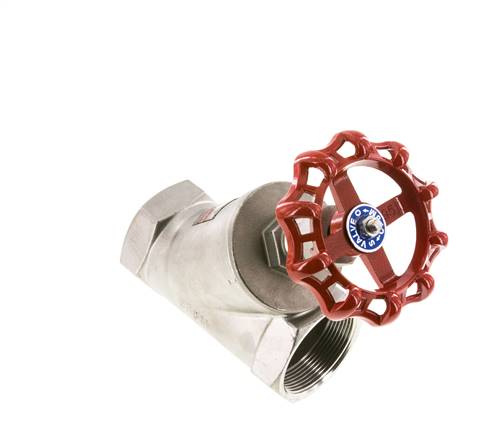

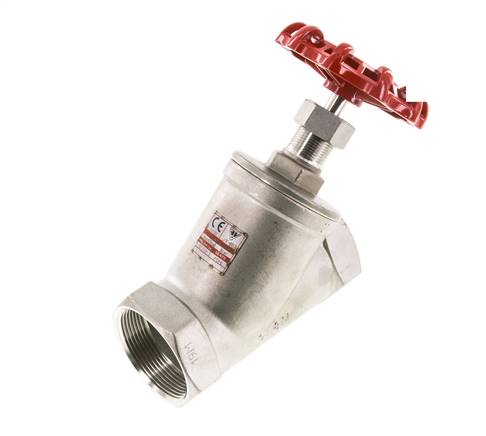

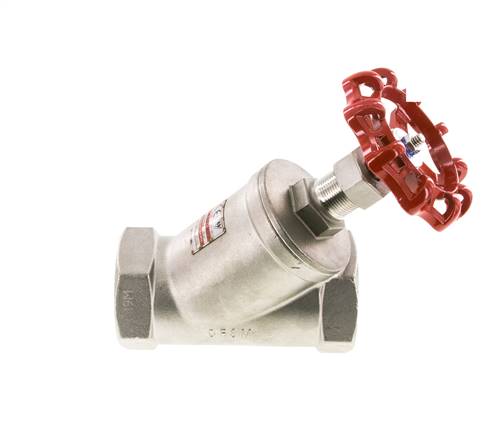

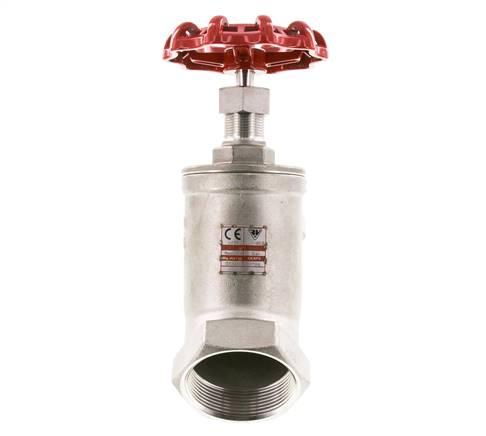

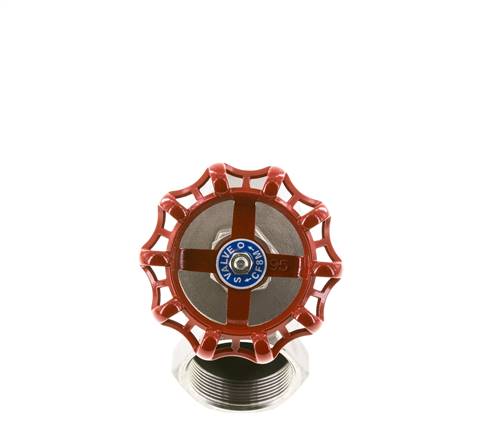

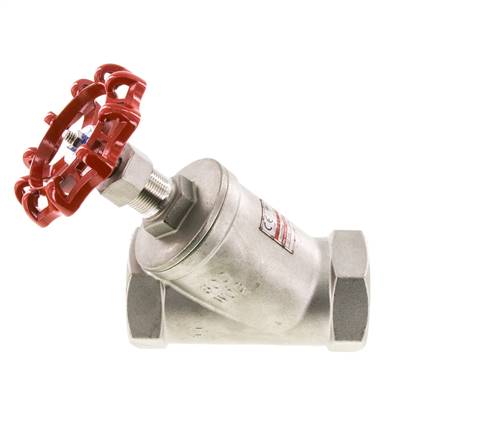

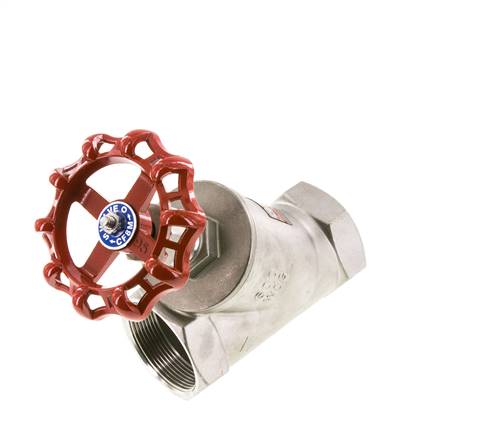

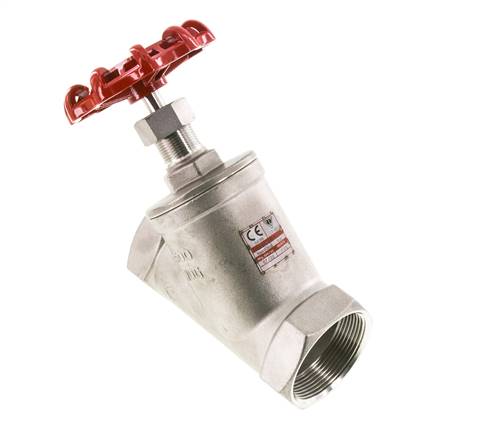

G 2'' Stainless Steel Angle Seat Valve 40 bar

This G 2" BSP female angle seat valve provides reliable manual shut-off and flow adjustment via a handwheel. The stainless steel 316 body with PTFE stem and seat seal handles water, oils, and compressed air. The Y-shaped body design allows for less flow restriction, resulting in a higher Kv value and a reduced pressure drop compared to standard globe valves. The PN 40 pressure rating and corrosion-resistant 316 stainless steel make it suited to demanding industrial service. Assembly uses only silicone-free seals and lubricants - safe for paint lines and silicone-sensitive processes. Rated to 40 bar at 20 °C, temperature range -20 to 200 °C (-4 to 392 °F). The pressure rating decreases at elevated temperatures.

Pros:

• Manual handwheel - gradual flow adjustment prevents water hammer.
• Stainless steel 316 body - corrosion resistant.
• PTFE seat and stem seal - wide operating temperature range.
• Silicone-free assembly - safe for paint systems and silicone-sensitive processes.

Cons:

• Requires multiple turns to open or close - slower than a ball valve.
• No visual open/closed indicator unlike a ball valve.
