G 1/2" FKM Cutting Ring Fitting Gasket 18.5x23.9x1.5 mm [2 Pieces]

G 1/2" FKM Cutting Ring Fitting Gasket 18.5x23.9x1.5 mm [2 Pieces]
G 1/2" FKM Cutting Ring Fitting Gasket 18.5x23.9x1.5 mm [2 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: S2APS-X2
Brand: Tameson

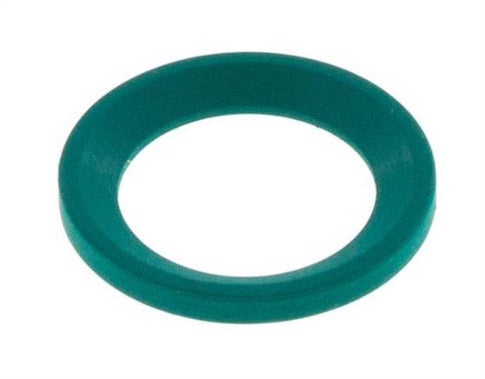

This profiled FKM gasket is designed to seal cutting ring fittings. This gasket is designed for G 1/2" threads. It has an internal diameter of 18.5 mm, an external diameter of 23.9 mm and 1.5 mm thickness.

Contains 2 pieces

View all
$7.61
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 175 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This profiled FKM gasket is designed to seal cutting ring fittings. This gasket is designed for G 1/2" threads. It has an internal diameter of 18.5 mm, an external diameter of 23.9 mm and 1.5 mm thickness.

Pros:

  • Suitable for temperatures from -15 to 200°C

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Rubber
Outer-diameter (mm)
Outer diameter of the component.
18.5
Shape
Flat
Inner diameter (mm)
Inner diameter of the component.
23.9
Thickness (mm)
Thickness of the component.
1.5
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
200
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-15
Material quality
The material quality provides more detailed information on the housing material. Choose a housing material that will not corrode from the media and environment.
FKM (FPM)
