Front Mount Green LED Element 12-30V AC/DC - 216559
Notice: This product will be discontinued in the future

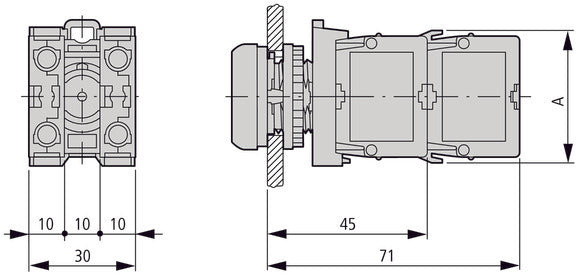

Panel-mountable LED indicator element featuring front screw terminal mounting and green illumination. Operates on 12-30V AC/DC at 50/60 Hz with 8-15 mA operational current and 0.26W power consumption at 24V. Designed for industrial control panels with IP20 protection rating and IEC 60947-5-1 compliance. Features 30mm installation depth with 10x34mm dimensions.
Notice: This product will be discontinued in the future
Description
Panel-mountable LED indicator element featuring front screw terminal mounting and green illumination. Operates on 12-30V AC/DC at 50/60 Hz with 8-15 mA operational current and 0.26W power consumption at 24V. Designed for industrial control panels with IP20 protection rating and IEC 60947-5-1 compliance. Features 30mm installation depth with 10x34mm dimensions.
Pros:
- Wide voltage range compatibility (12-30V AC/DC)
- Compact 30mm installation depth
- Front mounting for easy installation
- IEC 60947-5-1 compliant
