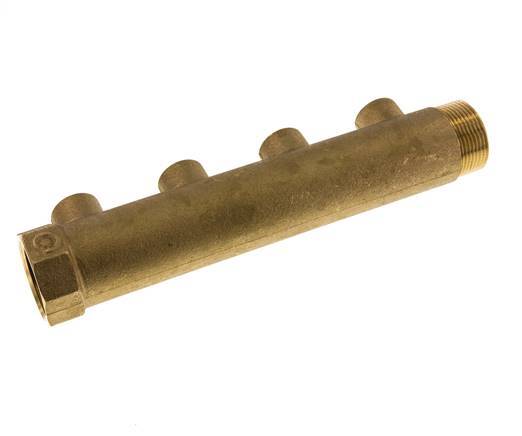

G 1 1/4'' x 4xG 1/2'' F/M/F Brass Distributor pipes 10 Bar
This brass distributor pipe has 4 distribution (extraction) ports. This distributor has a 1 1/4 inch male thread on one side and a 1 1/4 inch female thread on the other side. The distribution ports have G 1/2 inch female threads. There is a distance of 60 mm between each distribution port and all ports come out in one direction. It can handle a max pressure of 10 bar. The total length is 257 mm.
- Regular price
- $102.24 USD
We sell only to registered businesses
Description

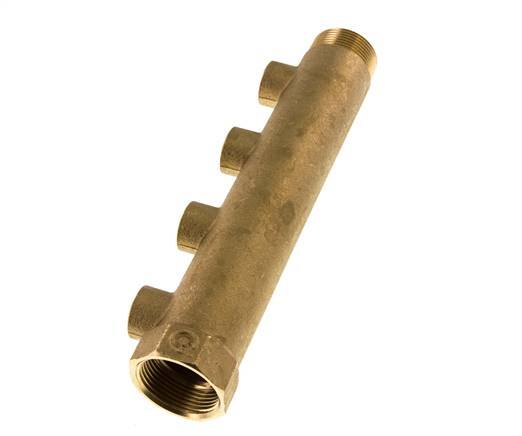

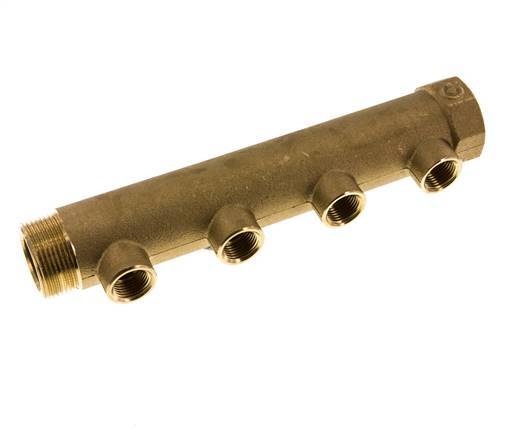

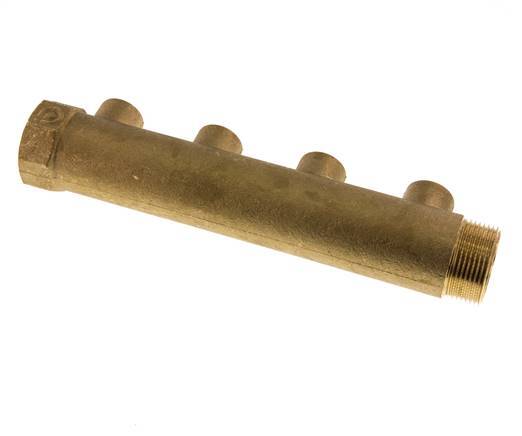

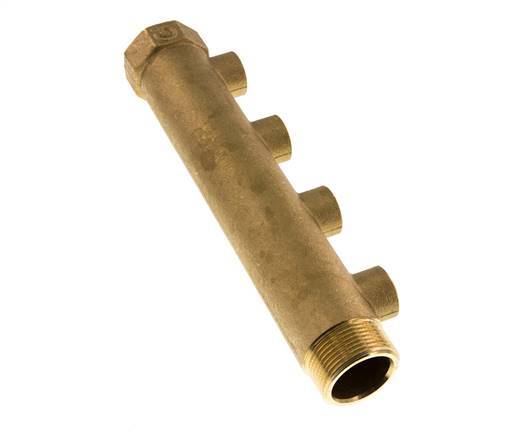

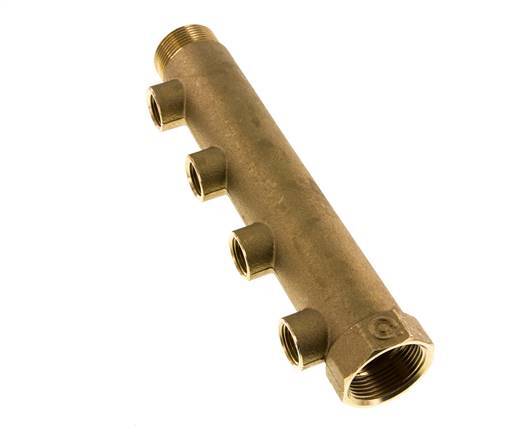

This brass distributor pipe has 4 distribution ports, which are often called extraction ports. It has G 1 1/4 inch male threads on one side and G 1 1/4 inch female threads on the other side. This allows it to be added in-line to existing piping or it can be used as a modular design if additional distribution ports are required. The distribution ports have 1/2 inch female BSPP-G threads. Between each distribution port (center of port to center of port) is a distance of 60 mm allowing for adequate room to attach your pipes and/or fittings. The distribution ports also come out in one direction. It has a maximum pressure rating of 10 bar. The total length of this fitting is 257 mm.
FLM series
The FLM series products are distributor pipes. They have BSPP-G (British Standard Parallel Pipe) female threads on one side and BSPP-G (British Standard Parallel Pipe) male threads on the other side, allowing them to be used with existing piping or used as a modular design if additional distribution ports are required. They can have between 2-4 distribution ports in a straight line with either male or female 1/2 inch threads. They are made out of brass and can handle a max pressure of 10 bar.
