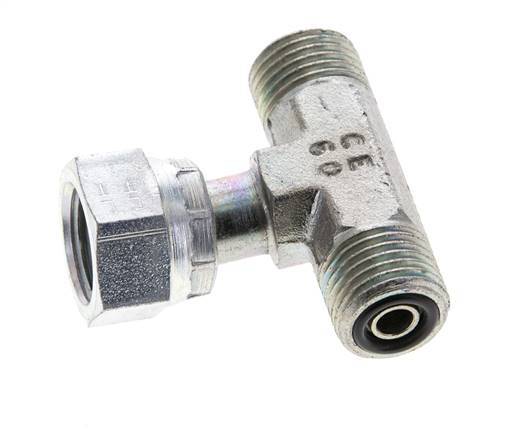

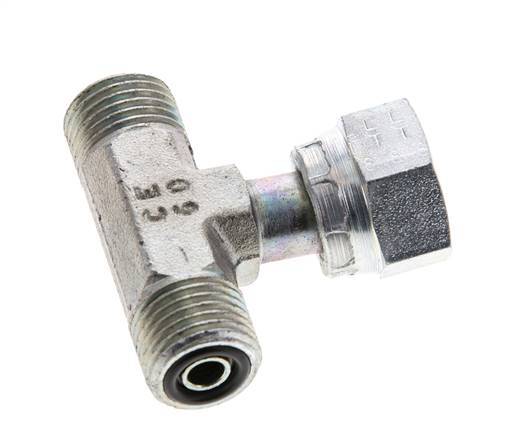

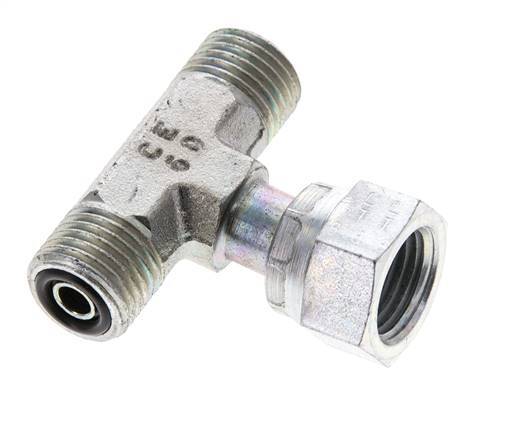

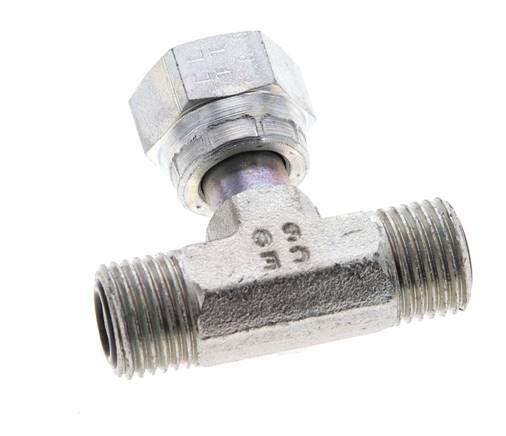

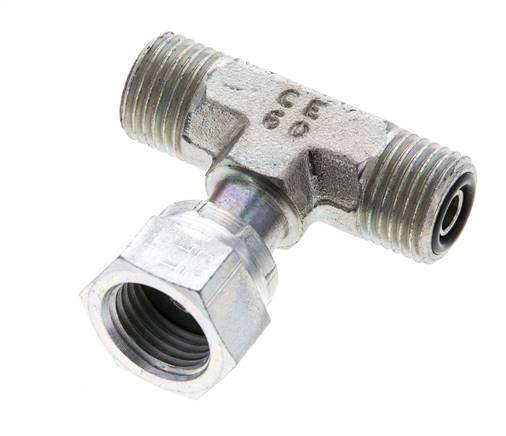

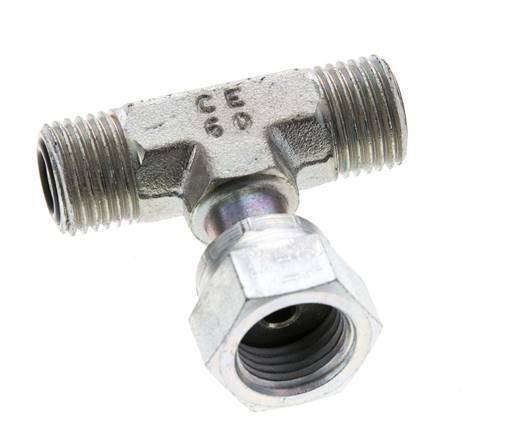

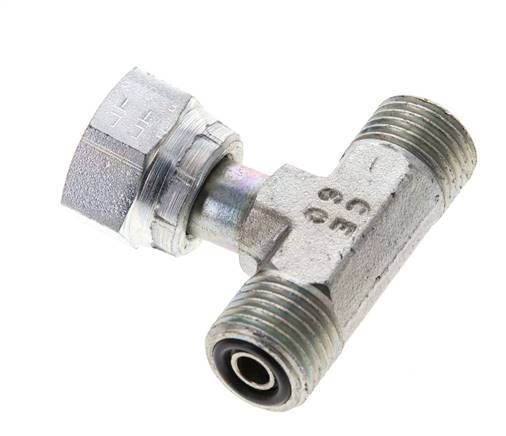

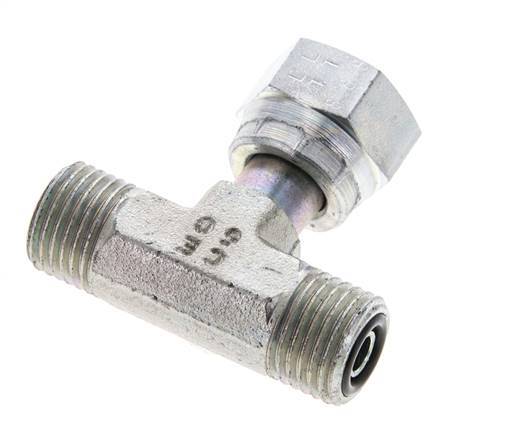

UNF 9/16''-18 M/F Zinc plated Steel Tee ORFS with union nut 630 Bar - Hydraulic
This steel ORFS T-screw connection is designed with two male orfs connections and 1 female orfs connection port in a t shape. Connection 1 has ORFS male UNF 9/16inch-18 threads. Connection 2 has ORFS male UNF 9/16inch-18 threads. Connection 3 has ORFS female UNF 9/16inch-18 threads. Max pressure of 630 bar (9138 psi).
- Regular price
- $42.53
Description
This ORFS T-screw connection is designed with two male ORFS connections and 1 female ORFS connection port in a T shape. Connection 1 has ORFS male UNF 9/16inch-18 threads. Connection 2 has ORFS male UNF 9/16inch-18 threads. Connection 3 has ORFS female UNF 9/16inch-18 threads. It comes with a gasket to ensure a proper seal can be made. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi).
FL3T-MF-O series
The FL3T-MF-O series has 3 connection ports. Two male threaded ORFS ports and one female threaded ORFS port in the shape of a T. Made out of steel with a max pressure of 630 bar.
