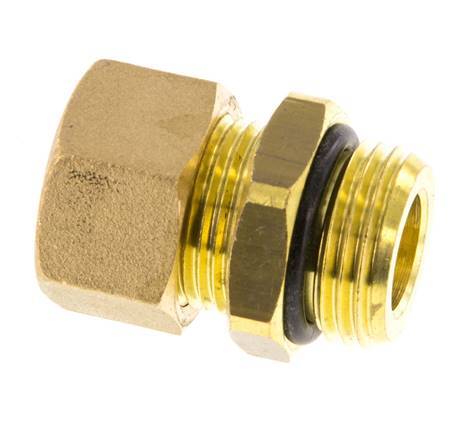

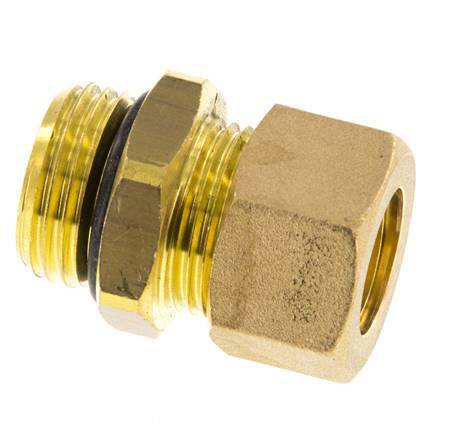

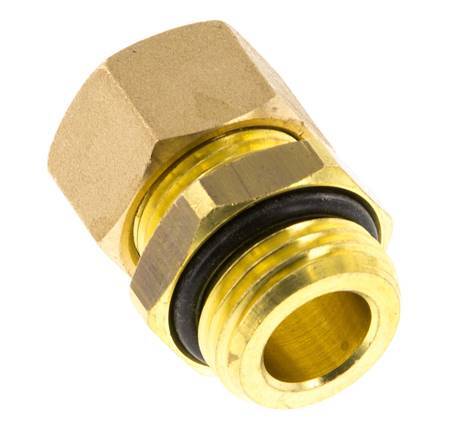

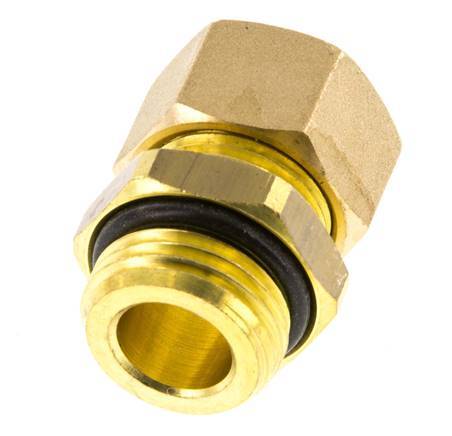

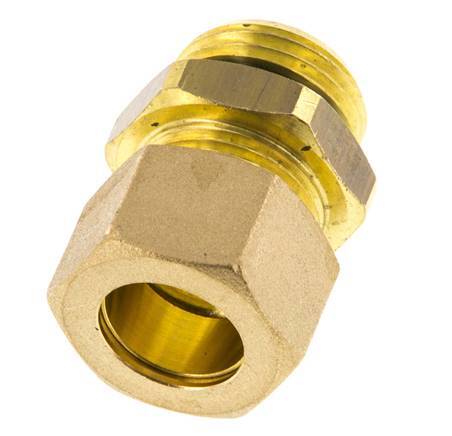

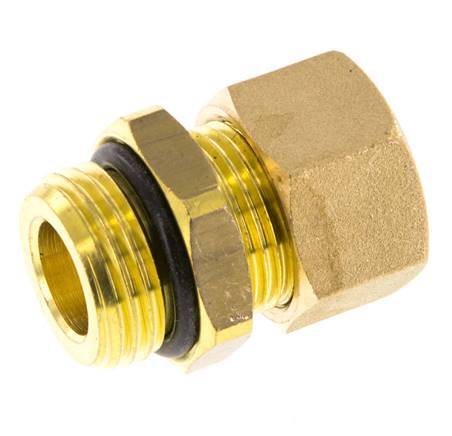

G 1/2'' Male x 15mm Brass Straight Compression Fitting with NBR Seal 82 Bar DIN EN 1254-2
This brass straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 1 has male G 1/2 inch threads. Connection 2 is a 15 mm compression ring. The sealing is NBR. Suitable for temperatures from -20 °C to 80 °C (-4 °F to 176 °F). Max pressure of 82 bar (1189 psi). It is made in accordance with the DIN EN 1254-2.
- Regular price
- €8,31
- Regular price
- €6,76
Description
This straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 1 has male G 1/2 inch threads. Connection 2 is a 15 mm compression ring. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of brass. It has a NBR seal. It is suitable for media within a temperature range of -20 °C to 80 °C (-4 °F to 176 °F). At 20 °C (68 °F), it can handle a maximum pressure of 82 bar (1189 psi). It is made in accordance with the DIN EN 1254-2. They have a 3-part design.
Cons:
- Since it has a compression ring connection, it can only be used once
FL2S-MC series
The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
