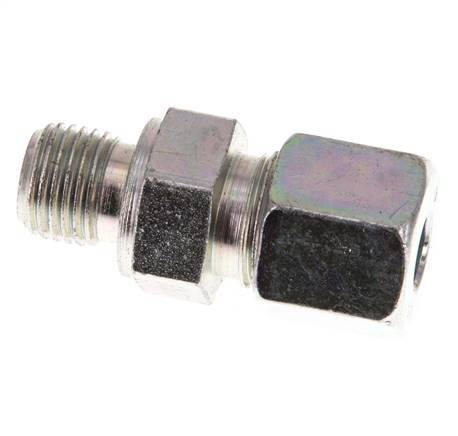

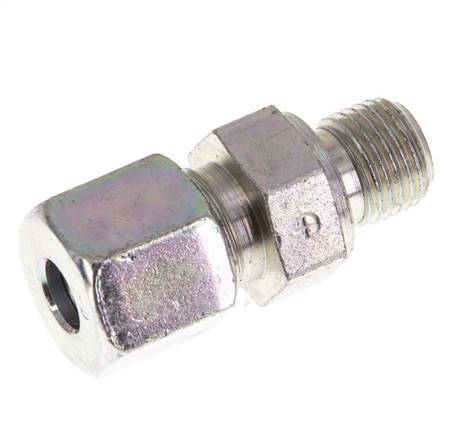

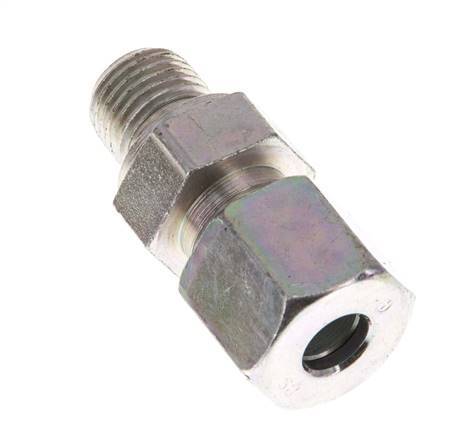

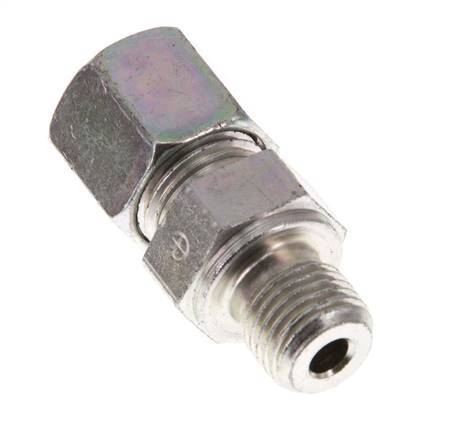

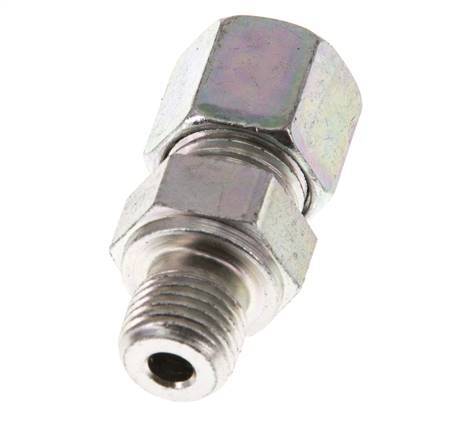

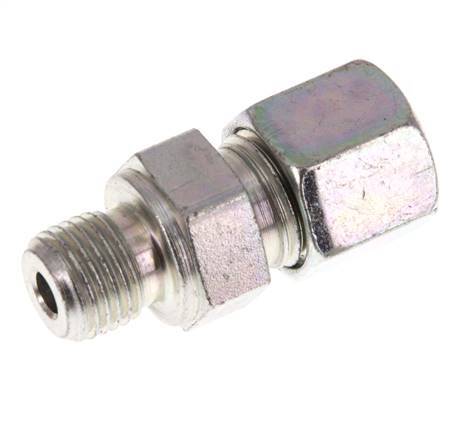

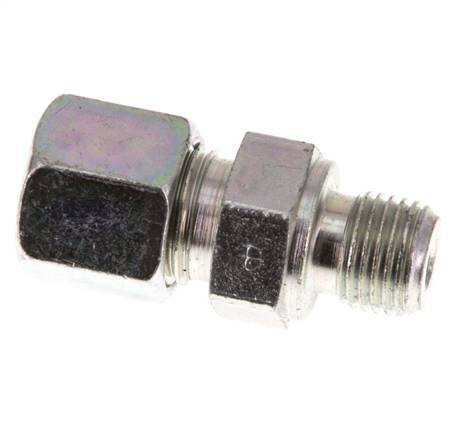

G 1/4'' Male x 8S Zinc plated Steel Straight Cutting Ring 630 Bar DIN 2353 [2 Pieces]

This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male G 1/4 inch threads. Connection 2 is a 8 mm cutting ring. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

• Since it has a cutting ring connection, it can only be used once

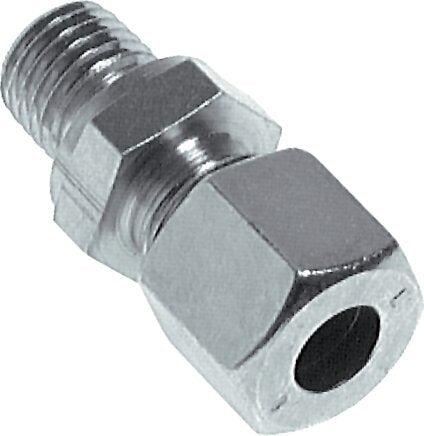

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
