Image may vary slightly
See specifications for accurate information.
Reference: FL2S-M-IZ-114R-C
Brand: Tameson

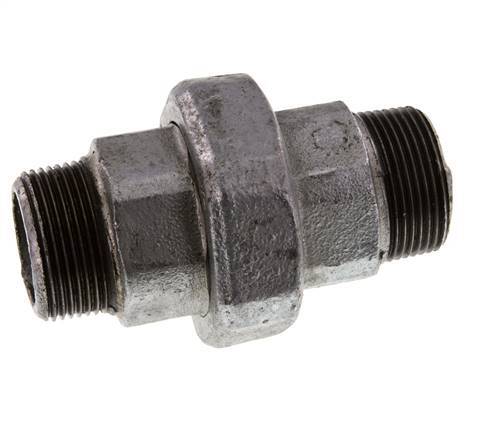

This cast iron screw connection is designed with male to male threads. Connection 1 has R 1 1/4 inch threads. Connection 2 has R 1 1/4 inch threads. Max pressure of 25 bar (363 psi).

View all
$73.40
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 4 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This screw connection is designed with male to male threads. Connection 1 has R 1 1/4 inch threads. Connection 2 has R 1 1/4 inch threads. It is a straight fitting. It is made out of cast iron (malleable) and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 25 bar (363 psi). They have a 3-part design.

FL2S-M-C series

The FL2S-M-C series are straight fittings with male threads to either a compression or cutting ring connection point. They are made out of brass, steel, or stainless steel and are a 3-part design.

Downloads

Manual FL2S-M-T
pdf
Download

Specifications

Thread
1 1/4 inch
Thread (smaller)
1 1/4 inch
Connection type
Outer thread conical BSPT-R
Material
Housing material.
Cast iron
Min pressure (bar)
0
Min pressure difference (bar)
Minimum required differential pressure for proper operation.
0
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
25
Type of sealing
Conical sealing
Quality of material
Malleable cast iron
Model
3-part
Material connection 1
Cast iron
Material quality connection 1
Malleable cast iron
Surface protection connection 1
Galvanic/electrolytic zinc plated
Material connection 2
Cast iron
Material quality connection 2
Malleable cast iron
Surface protection connection 2
Galvanic/electrolytic zinc plated
Shape
Straight
With drain
No
