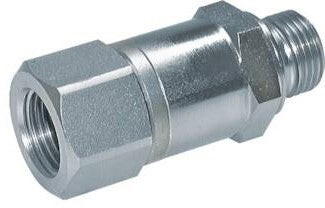

G 1 1/4'' F/M Stainless steel Swivel Joint 250 Bar - Hydraulic - High-pressure
This stainless steel high-pressure rotary joint is designed with female g threads and male g threads. Connection 1 has female G 1 1/4 inch threads. Connection 2 has male G 1 1/4 inch threads. The sealing is FKM / PTFE. It is rotatable. Suitable for temperatures from -20 °C to 120 °C (-4 °F to 248 °F). Max pressure of 250 bar (3626 psi).
- Regular price
- $1,155.90 USD
Description
This high-pressure rotary joint is designed with female G threads and male G threads. Connection 1 has female G 1 1/4 inch threads. Connection 2 has male G 1 1/4 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of stainless steel. It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 120 °C (-4 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi). It can withstand 1 rotations per minute.
FL2S-FM-R series
The FL2S-FM-R series are straight fittings with female G threads and male G threads. They are meantu for high pressure applications (up to 500 bar) and made from steel or stainless steel.
