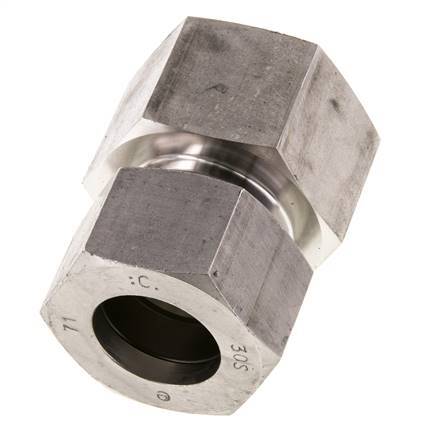

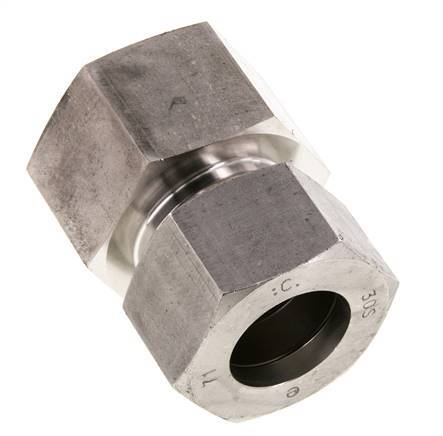

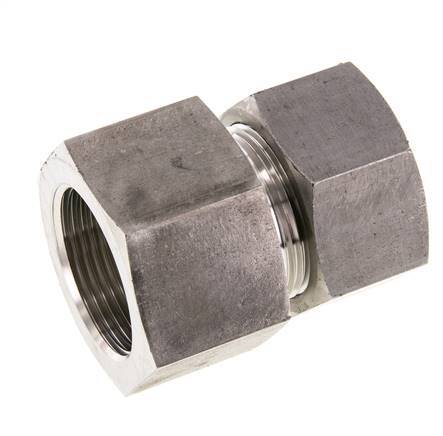

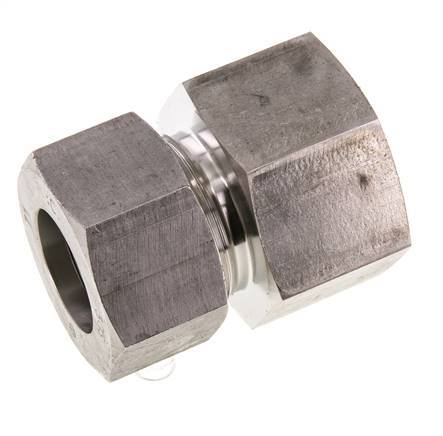

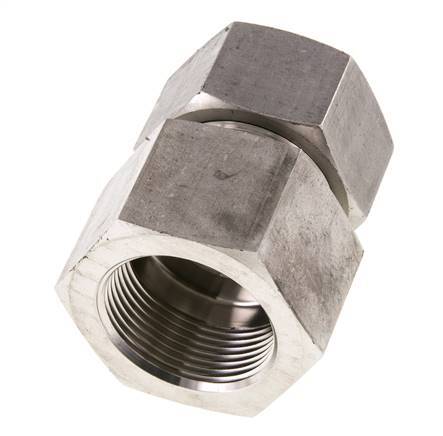

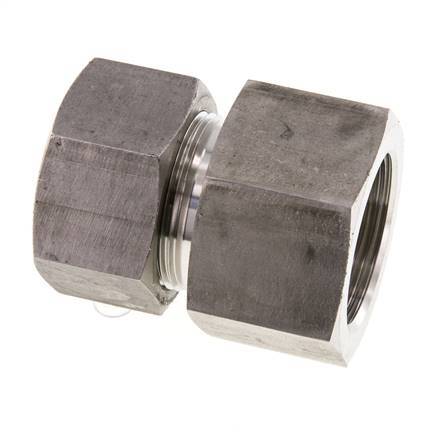

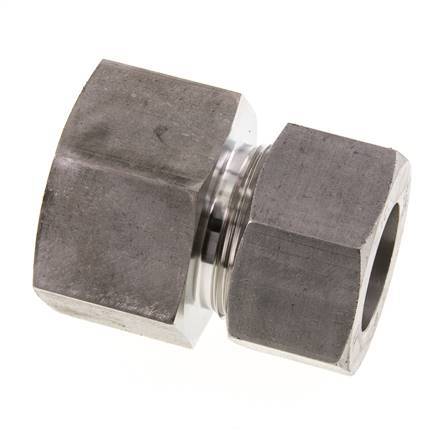

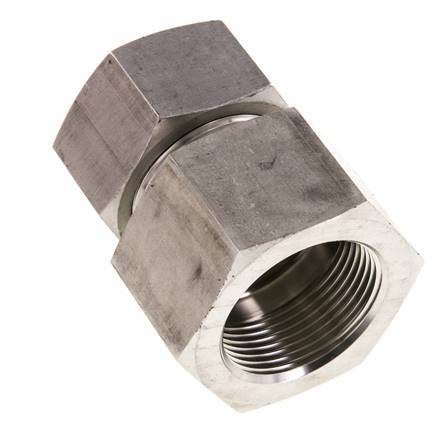

G 1 1/4'' x 30S Stainless steel Straight Cutting Ring 400 Bar DIN 2353
This stainless steel straight screwed-on screw connections is designed with female threads and a cutting ring connection point. Connection 1 has female G 1 1/4 inch threads. Connection 2 is a 30 mm cutting ring. Suitable for temperatures from -60 °C to 400 °C (-76 °F to 752 °F). Max pressure of 400 bar (5802 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $174.55
Description
This straight screwed-on screw connections is designed with female threads and a cutting ring connection point. Connection 1 has female G 1 1/4 inch threads. Connection 2 is a 30 mm cutting ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a cutting ring connection, it can only be used once
FL2S-FC series
The FL2S-FC series are straight fittings with one female connection point and then either a compression ring or cutting ring connection point. Made out of brass, steel, and stainless steel they are a 3-part design.
