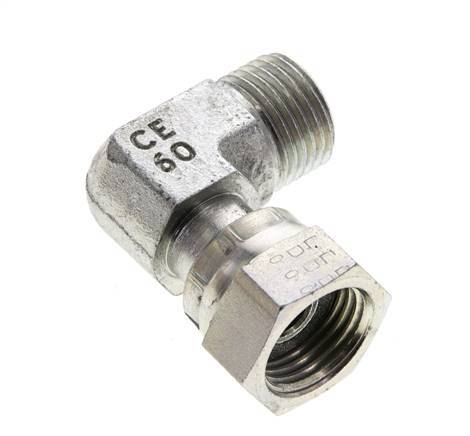

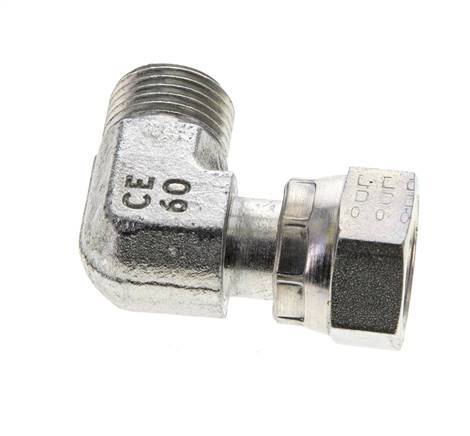

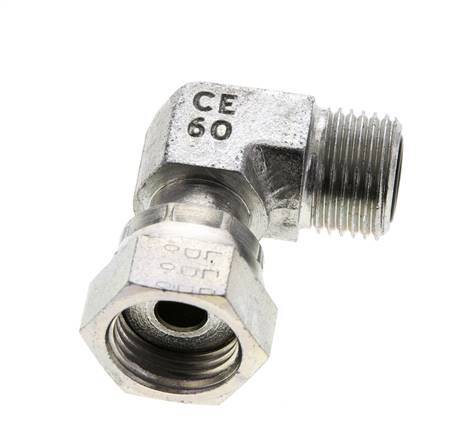

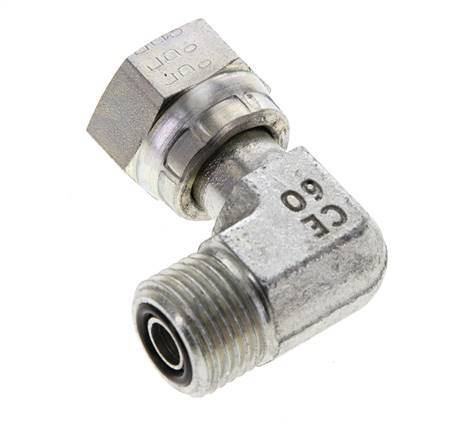

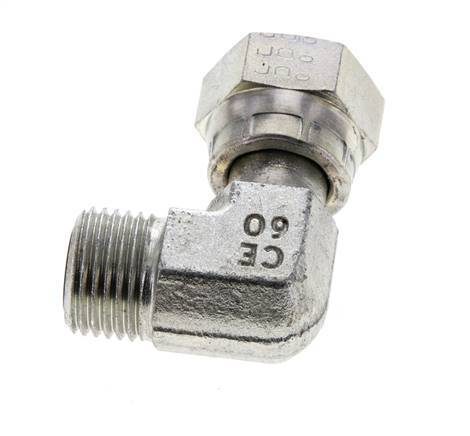

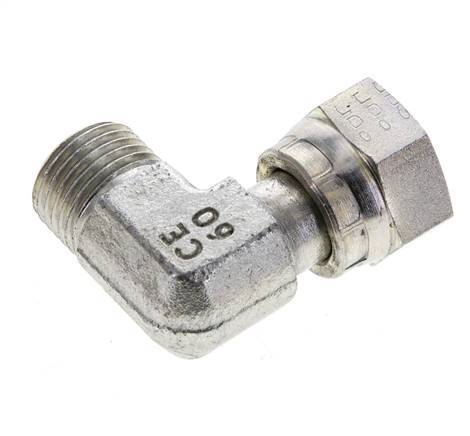

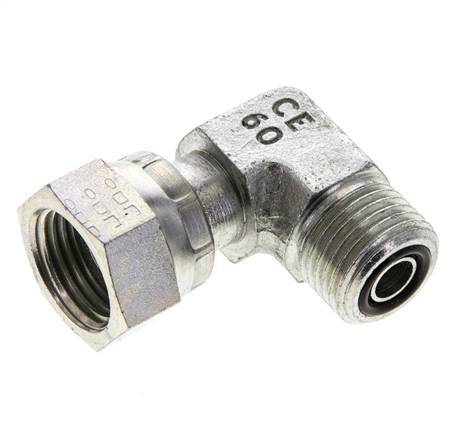

UN 11/16''-16 x UN 11/16''-16 M/F Zinc plated Steel 90 deg Elbow Fitting ORFS 630 Bar - Hydraulic
This steel ORFS elbow screw connection is designed with an ORFS female connection and an ORFS male connection at an angle. Connection 1 has ORFS male UN 11/16inch-16 threads. Connection 2 has ORFS female UN 11/16inch-16 threads. The input and the output are at a 90° angle. Max pressure of 630 bar (9138 psi).
- Regular price
- $18.24 USD
We sell only to registered businesses
Description
This ORFS elbow screw connection is designed with an ORFS female connection and an ORFS male connection at an angle. Connection 1 has ORFS male UN 11/16inch-16 threads. Connection 2 has ORFS female UN 11/16inch-16 threads. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). The input and the output are at a 90° angle.
FL2E-MF-O series
The FL2E-MF-O series are elbow ORFS fittings with one male and one female ORFS connection point. Bend angle of 45 or 90 degrees and made out of steel.
