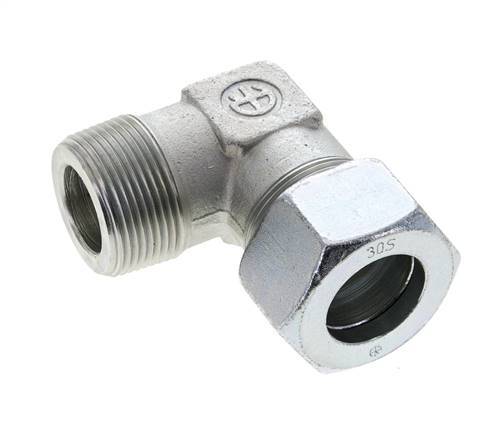

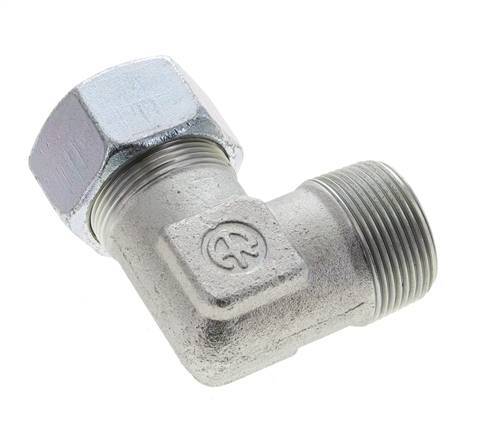

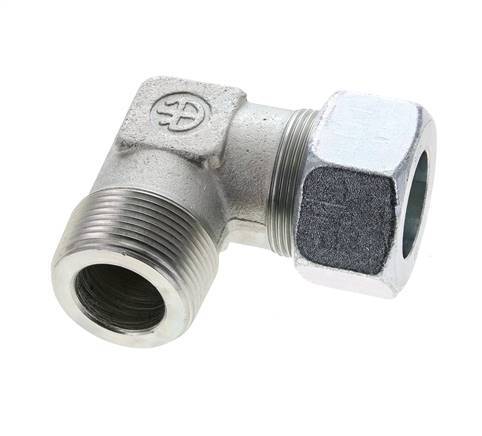

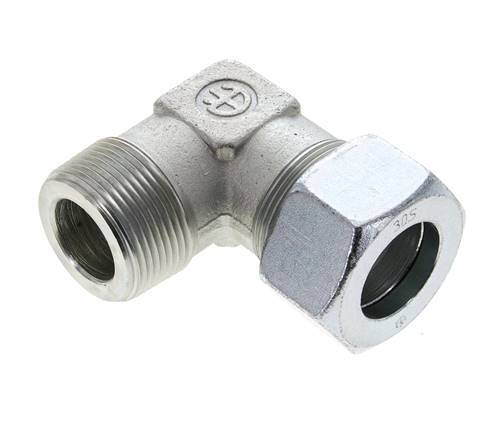

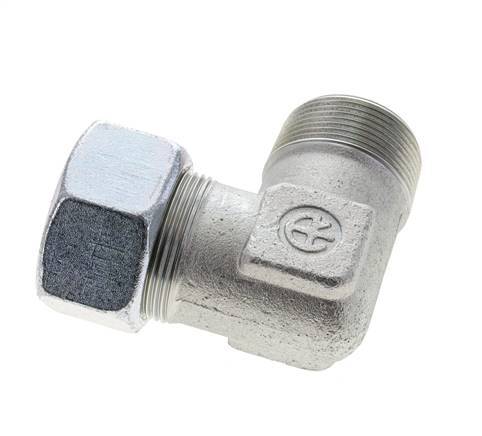

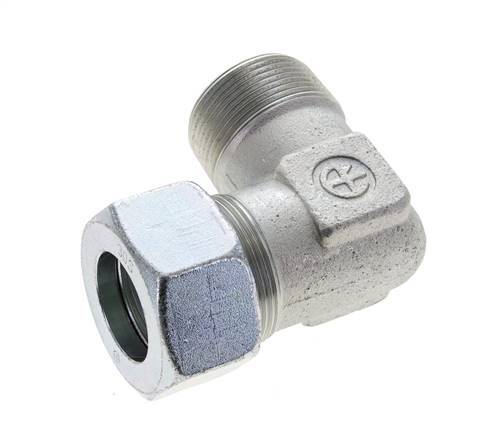

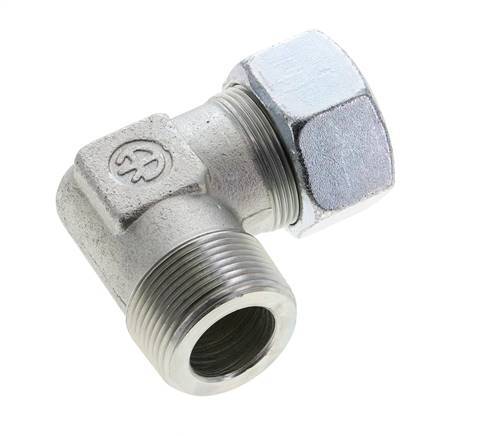

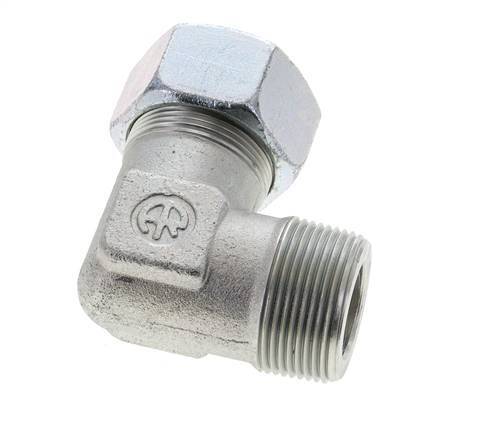

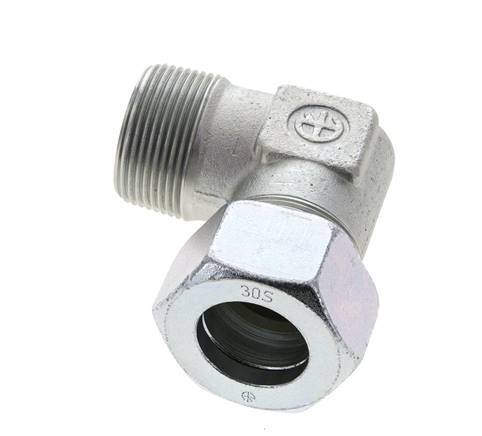

1 1/4'' NPT Male x 30S Zinc plated Steel 90 deg Elbow Cutting ring 400 Bar DIN 2353
This steel elbow screw in connection is designed with female threads and a cutting ring connection. Connection 1 has male NPT 1 1/4 inch threads. Connection 2 is a 30 mm cutting ring. The input and the output are at a 90° angle. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 400 bar (5802 psi). Rated for an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- €60,90
- Regular price
- €49,51
Description
This elbow screw in connection is designed with female threads and a cutting ring connection. Connection 1 has male NPT 1 1/4 inch threads. Connection 2 is a 30 mm cutting ring. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). The input and the output are at a 90° angle. According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a cutting ring connection, it can only be used once
FL2E-MC series
The FL2E-MC series are elbow fittings with male threads and then either a compression ring or a cutting ring connection point. They are at a 90 degree bend and made out of brass, steel, or stainless steel.
