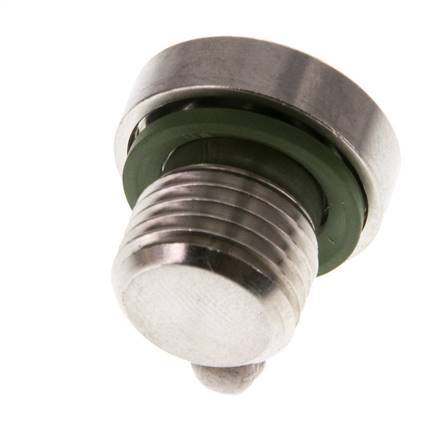

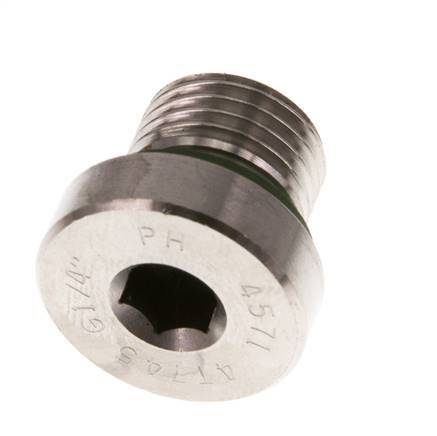

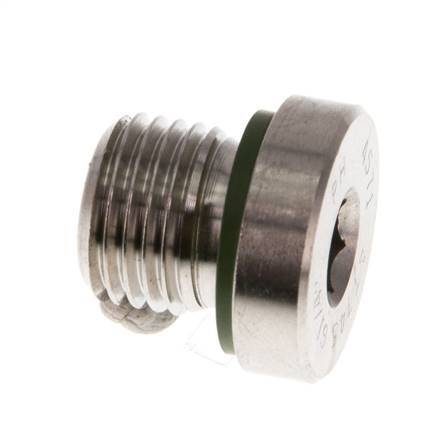

G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar

G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
G 1/4'' Male Stainless steel Closing plug with Inner Hex and FKM Seal 400 Bar
Image may vary slightly
See specifications for accurate information.
Reference: FL1-M-STF-014G-I
Brand: Tameson

This stainless steel end cap is designed with male threaded connections. It also has an inner hexagon for tightening/loosening. Connection 1 has male G 1/4 inch threads. The sealing is FPM/FKM. It is an end cap, so it has no output port. Max pressure of 400 bar (5802 psi).

View all
Regular price
$13.21 USD
excl VAT

In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Description
Specifications
Downloads
Related products

This end cap is designed with male threaded connections. Connection 1 has male G 1/4 inch threads. It also has an inner hexagon for tightening/loosening. It comes with a gasket to ensure a proper seal can be made. It is an end cap, so it has no output port. It is made out of stainless steel (1.4571). It has a FPM/FKM seal. At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi).

FL1-M series

The FL1-M series consists of fittings with 1 connection port, so they are end caps. G, R, NPT, and metric (standard and conical) threads with a size range of 1/8 inch to 2 inches (metric range from 5 to 14 mm). Designed with either an external hex (to be used with a wrench for example) or an inner hex for an allen wrench. Material options of brass, steel, or stainless steel. They are designed to stop the media flow.
