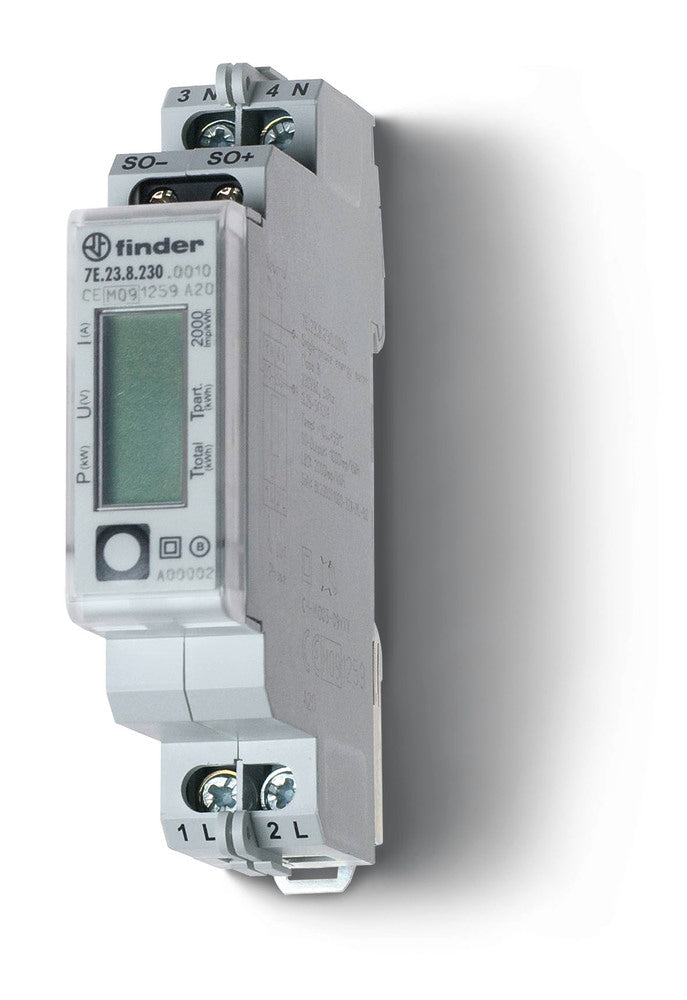

Finder 7E Electricity Meter - 7E.23.8.230.0010

Finder 7E Electricity Meter - 7E.23.8.230.0010
Finder 7E Electricity Meter - 7E.23.8.230.0010
Image may vary slightly
See specifications for accurate information.
Reference: T23J3
Brand: Finder
Mfr. Part: 7E.23.8.230.0010

This Series 7E KWH meter from Finder is a single-phase energy meter suitable for direct metering, single rate. In addition, the maximum current is 32A. The 7 digit LCD display shows power consumption and instrumentation values. Data from the Series 7E KWH meter can be read via the pulse output. The following electrical characteristics can be read out: total energy consumption, partial energy consumption, current power, current (A) and voltage (V). Operating the KWH meter is easy using the push button.

View all
$110.27
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This Series 7E KWH meter from Finder is a single-phase energy meter suitable for direct metering, single rate. In addition, the maximum current is 32A. The 7 digit LCD display shows power consumption and instrumentation values. Data from the Series 7E KWH meter can be read via the pulse output. The following electrical characteristics can be read out: total energy consumption, partial energy consumption, current power, current (A) and voltage (V). Operating the KWH meter is easy using the push button.

Downloads

Specifications

Type of meter
Electronic
Nominal current (In) (A)
5
Max. current (Imax) (A)
32
Nominal voltage (Un) N-L (V)
230 V to 230 V
Nominal voltage (Un) L-L (V)
400 V to 400 V
Frequency (Hz)
50 Hz to 50 Hz
Accuracy class
B
Pole type
Single phase
Model
Direct measurement
Energy type
Effective power
Suitable for
Purchase
Tariff type
One-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Pulse rate (Imp/kWh (kvarh))
1000 Imp/kWh (kvarh) to 1000 Imp/kWh (kvarh)
Type of indication
Digital
Mounting method
Built-in
Width in number of modular spacings
1
Width (mm)
The product's width without packaging.
17.5
Depth (mm)
The product's depth without packaging.
63
Height (mm)
The product's height without packaging.
92.1
Type of interface
Other
EEC40 signature
No
With lock code
No
Number of positions total (counter)
7
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
