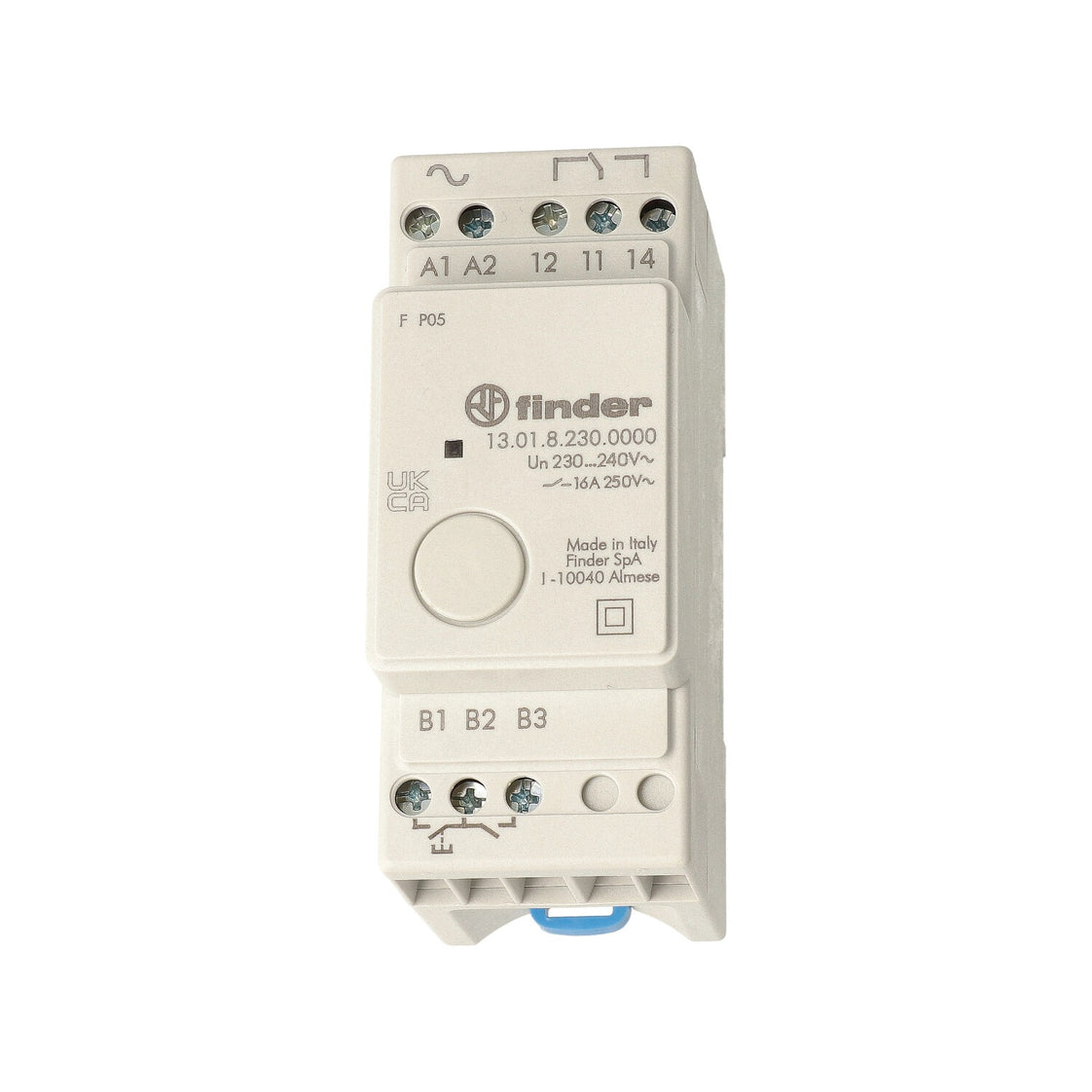

Finder 13 Bistable Relay - 13.01.8.230.0000

Finder 13 Bistable Relay - 13.01.8.230.0000
Finder 13 Bistable Relay - 13.01.8.230.0000
Image may vary slightly
See specifications for accurate information.
Reference: E2MQA
Brand: Finder
Mfr. Part: 13.01.8.230.0000

1301 series silent electronic remote control switches. Electronic remote controlled switches with relay outputs and monostable relays depending on wiring. Mounting on 35 mm rail for 1301. Selv application (in accordance with iec 364). Approvals. Ec.

View all
$35.39
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 21 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

1301 series silent electronic remote control switches. Electronic remote controlled switches with relay outputs and monostable relays depending on wiring. Mounting on 35 mm rail for 1301. Selv application (in accordance with iec 364). Approvals. Ec.

Downloads

Other Documentation (EN)
pdf
Download

Specifications

Function
Electronic switch
Mounting method
DIN rail
Width in number of modular spacings
2
Built-in depth (mm)
58
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Control voltage 1 (V)
184 V to 253 V
Type of control voltage 1
AC
Frequency control voltage 1 (Hz)
50 Hz to 60 Hz
Control voltage 2 (V)
0 V to 0 V
Frequency control voltage 2 (Hz)
0 Hz to 0 Hz
Rated switch current (A)
16
Supply voltage (V)
230 V to 240 V
Voltage type of supply voltage
AC
Max. incandescent lamp load (W)
2000
Max. load fluorescent lamp (VA)
1000
Max. load fluorescent lamp (Duo circuit) (VA)
750
Max. load fluorescent lamp (parallel compensated) (VA)
750
Max. switching current (cos phi = 0.6) (A)
18
Manual override
No
