Festo Swivel/Gripper Unit 2.5mm Stroke - Size 12 Double Acting - 1187955

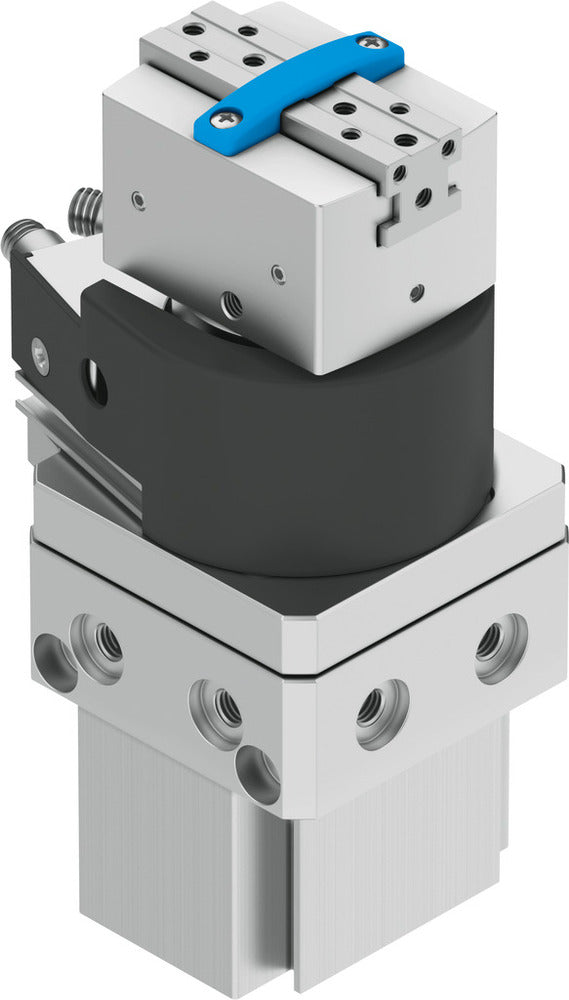

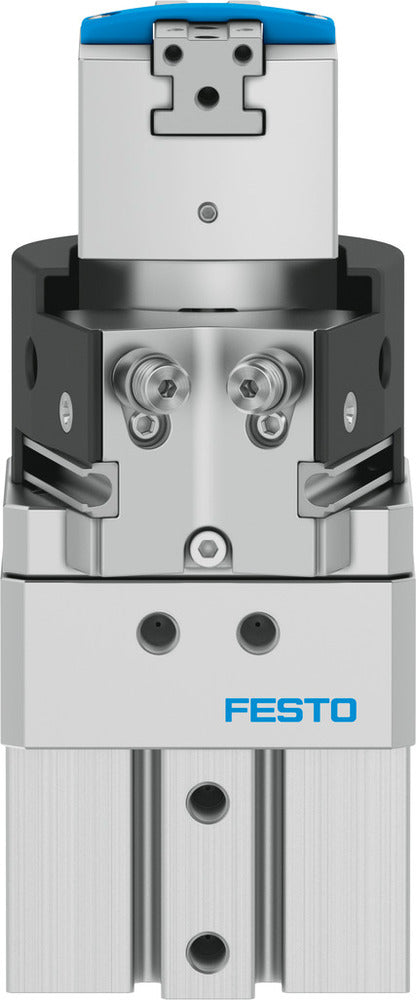

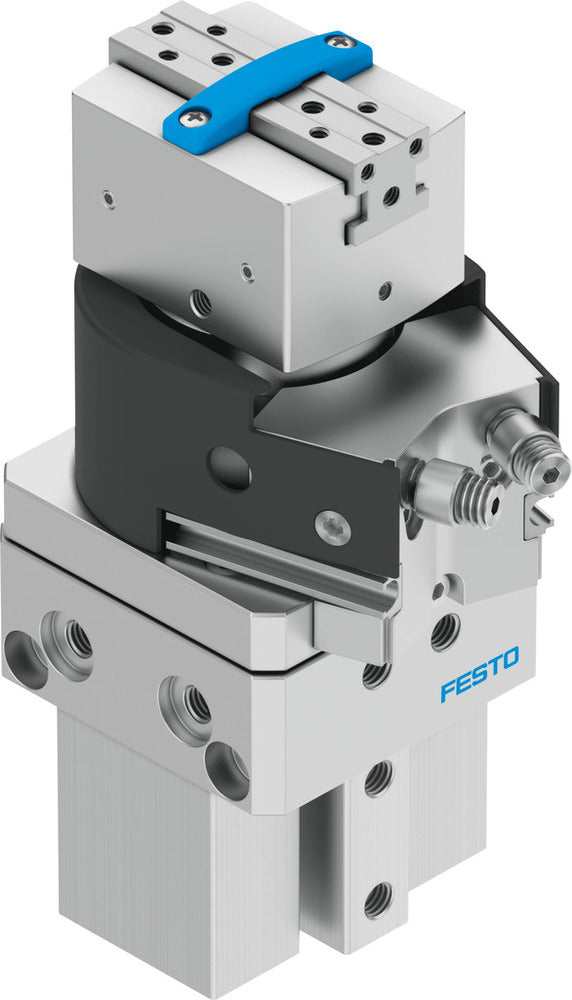

This double-acting swivel/gripper unit combines a parallel gripper with a swivel module, offering a 210-degree swivel angle and 2.5 mm stroke per gripper jaw. Operating at 6 bar, it delivers a gripping force of 37 N per jaw and a theoretical torque of 0.85 Nm. The unit features position sensing with a proximity sensor for the pneumatic gripper. Its compact design integrates precise end stops, making it suitable for various swivel and gripping applications in automated systems.
- Regular price
- $1,654.70 USD
We sell only to registered businesses
Description
This double-acting swivel/gripper unit combines a parallel gripper with a swivel module, offering a 210-degree swivel angle and 2.5 mm stroke per gripper jaw. Operating at 6 bar, it delivers a gripping force of 37 N per jaw and a theoretical torque of 0.85 Nm. The unit features position sensing with a proximity sensor for the pneumatic gripper. Its compact design integrates precise end stops, making it suitable for various swivel and gripping applications in automated systems.
