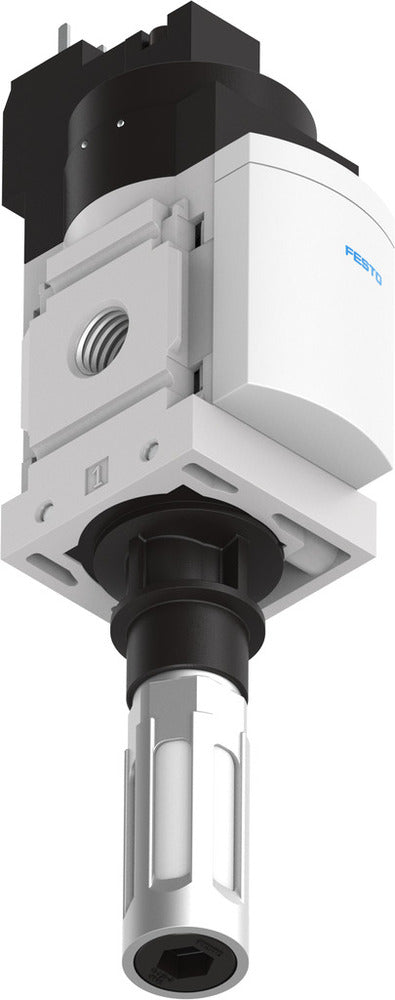

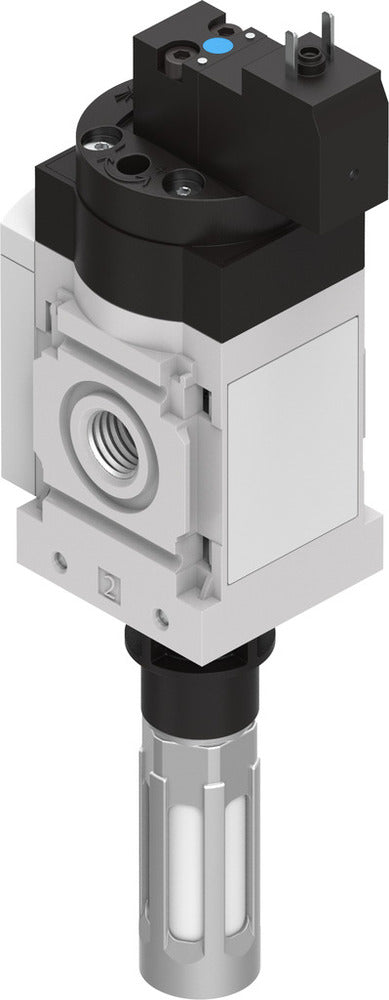

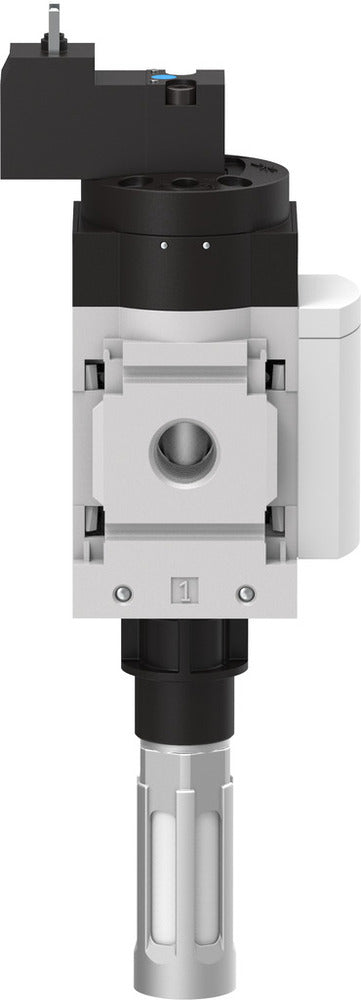

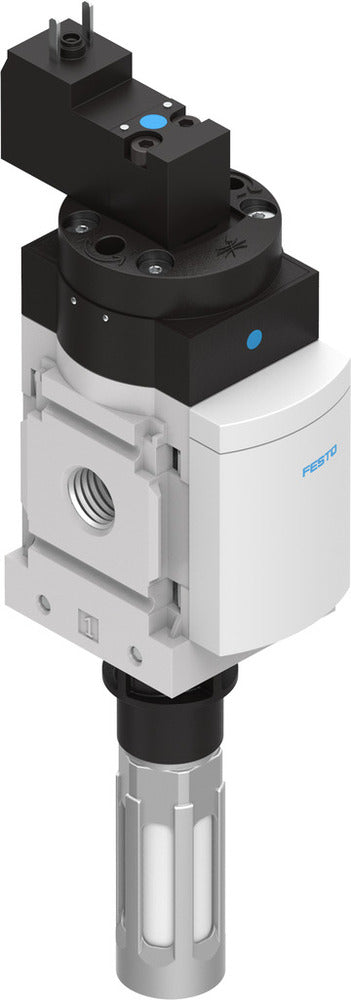

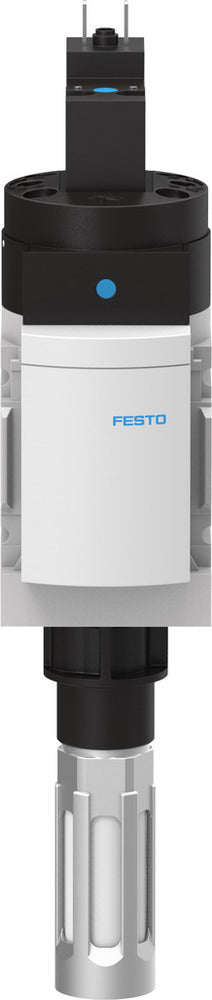

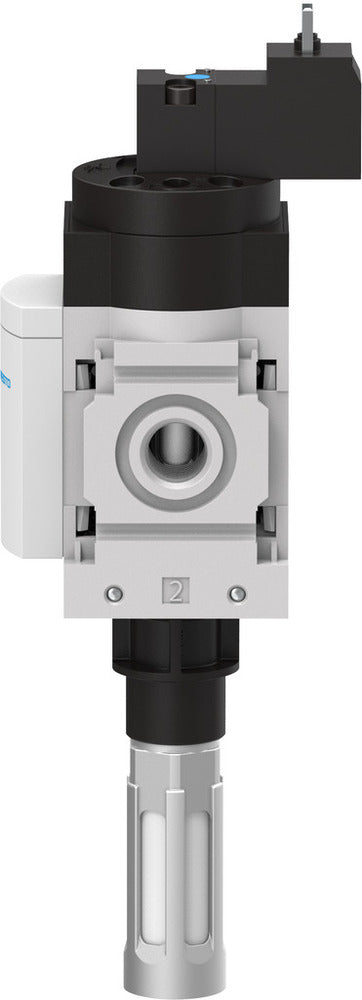

Festo Shut Off Valve G1/8'' 4-10bar 1000l/min - 542600

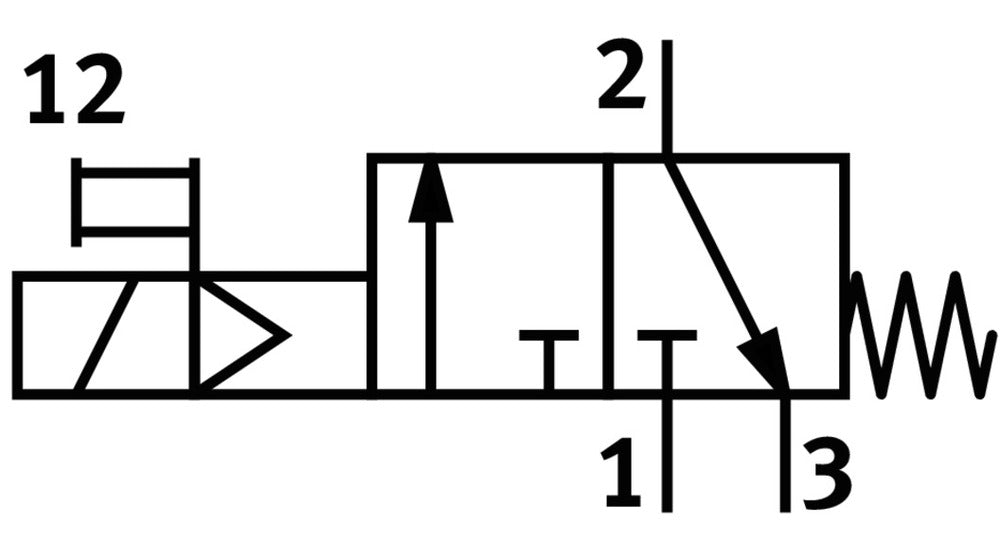

This electrically actuated shut off valve offers precise control for pneumatic systems with a G1/8 connection. Operating at pressures between 4 and 10 bar, it delivers a standard nominal flow rate of 1000 l/min. The valve's compact 40 mm width design allows for efficient integration into various pneumatic installations. It functions as a 3/2-way valve, enabling pressurization and venting of the system, with the option to attach a muffler or duct exhaust air at port 3 for noise reduction or controlled air release.
- Regular price
- $153.97 USD
We sell only to registered businesses
Description
This electrically actuated shut off valve offers precise control for pneumatic systems with a G1/8 connection. Operating at pressures between 4 and 10 bar, it delivers a standard nominal flow rate of 1000 l/min. The valve's compact 40 mm width design allows for efficient integration into various pneumatic installations. It functions as a 3/2-way valve, enabling pressurization and venting of the system, with the option to attach a muffler or duct exhaust air at port 3 for noise reduction or controlled air release.
