Reference: P2HQ9
Brand: Festo
Mfr. Part: DHPS-10-A-NC

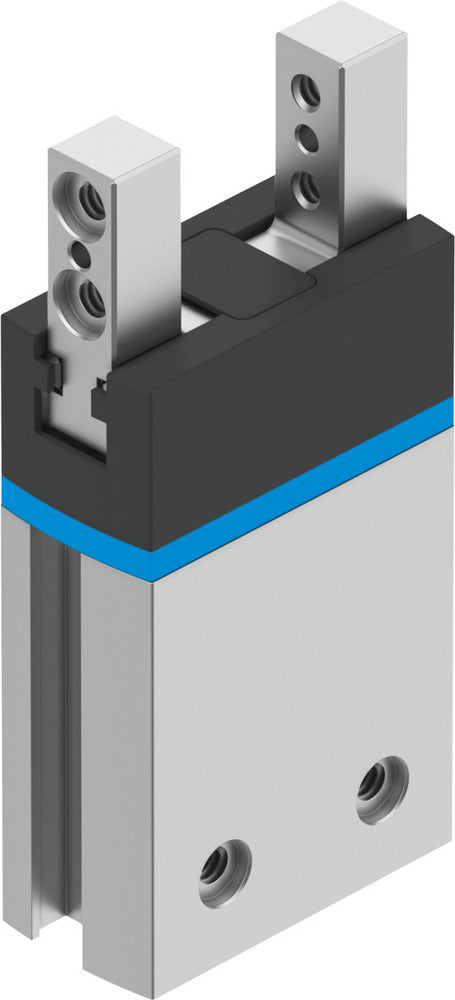

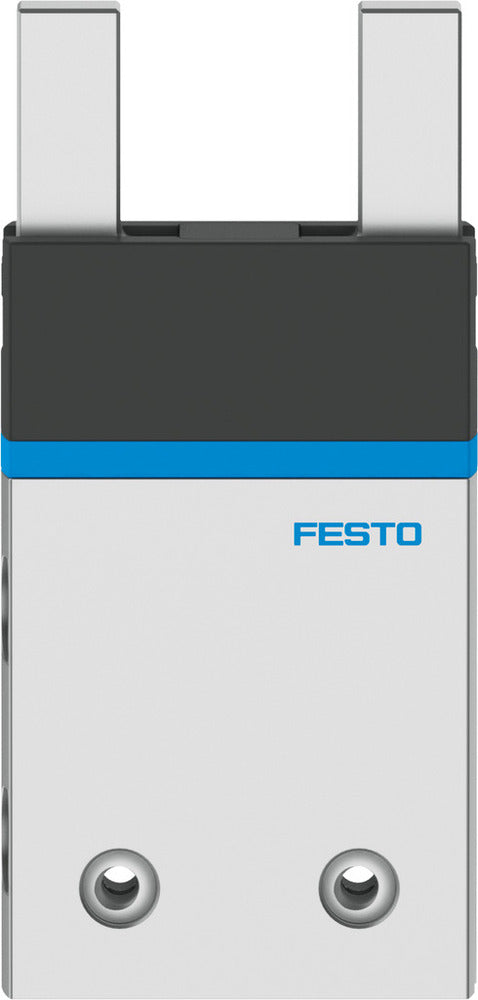

This double-acting parallel gripper offers a 3 mm stroke per jaw and is compatible with proximity sensors for position sensing. It features a gripping force backup during closing, ensuring secure hold of workpieces. The gripper's precision T-slot guide for jaws and oval piston design provide a powerful grip in a compact form factor. Its high repetition accuracy and versatile mounting options make it suitable for various industrial automation applications where reliable and precise gripping is essential.

View all
$557.01 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Expected delivery in 4 - 5 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

This double-acting parallel gripper offers a 3 mm stroke per jaw and is compatible with proximity sensors for position sensing. It features a gripping force backup during closing, ensuring secure hold of workpieces. The gripper's precision T-slot guide for jaws and oval piston design provide a powerful grip in a compact form factor. Its high repetition accuracy and versatile mounting options make it suitable for various industrial automation applications where reliable and precise gripping is essential.

Downloads

Product datasheet (EN)
pdf
Download
Brochure - DHPS_ENUS
pdf
Download
Brochure - ADAPTER-FOR-GRIPPERS_ENUS
pdf
Download

Specifications

Jaw Travel (mm)i
3
Operationi
Double acting
Pressure (bar)i
4 bar to 8 bar
Size
10
Gripper feature
Parallel,With sliding guide,Reed switch,Operation with oil lubrication possible (required in further operations)
Connection sizei
M3
Connection typei
Inner thread metric
Materiali
Wrought aluminum alloy hard-anodized
Temperature (°C)i
5 °C to 60 °C
Fingers quantityi
2
Mounting method
Centering sleeve,With through-hole,With internal thread
Closing time (max) (ms)i
24
Opening time (max) (ms)i
58
Mounting dispositioni
Any
Structural design
Lever,Positively driven motion sequence
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
1 - Low corrosion stress
Note on materials
RoHS-compliant
Max. interchangeability (mm)
0.2
Max. mass per external gripper finger (g)
60
