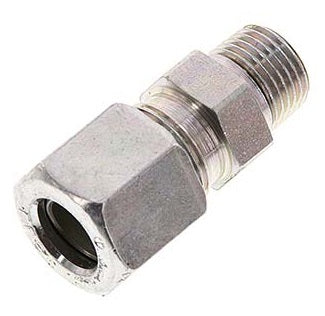

R 3/8'' Male x 12LL Zinc plated Steel Straight Cutting Ring 100 Bar DIN 2353
Notice: This product is discontinued
This steel straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has R 3/8 inch threads. Connection 2 is a 12 mm cutting ring. Suitable for temperatures from -40 °C to 120 °C (-40 °F to 248 °F). Max pressure of 100 bar (1450 psi). Rated for an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353).
Notice: This product is discontinued
Description
This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has R 3/8 inch threads. Connection 2 is a 12 mm cutting ring. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 100 bar (1450 psi). According to the DIN 2353, it has an LL (very light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.
Cons:
- Since it has a cutting ring connection, it can only be used once
FL2S-MC series
The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.
