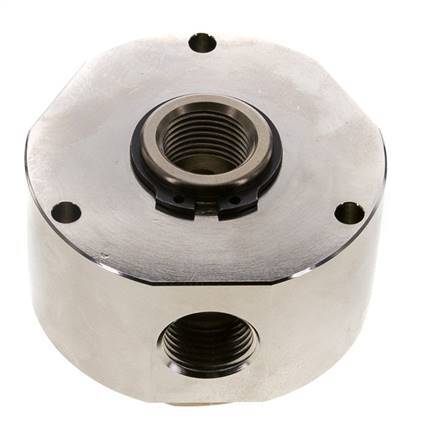

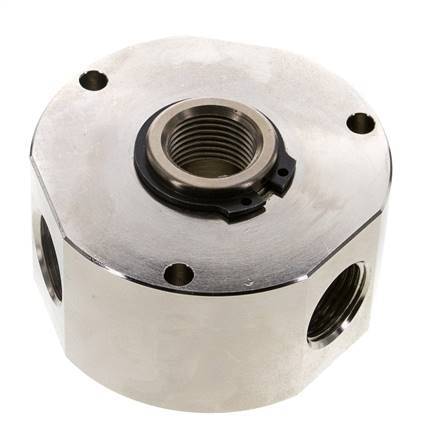

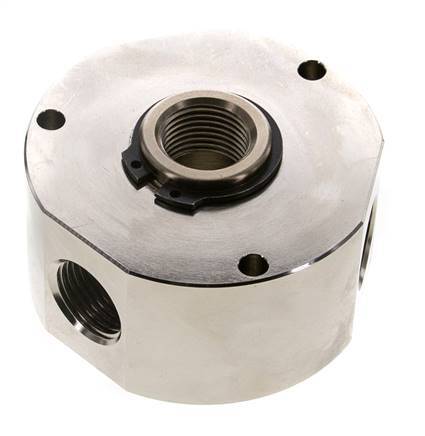

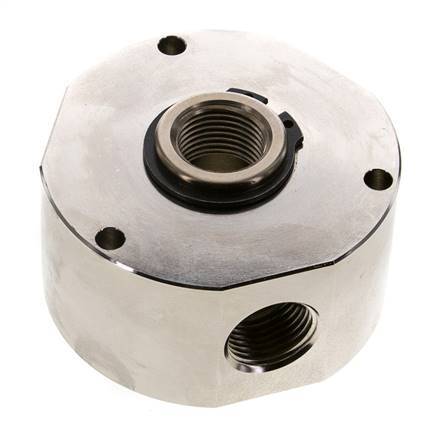

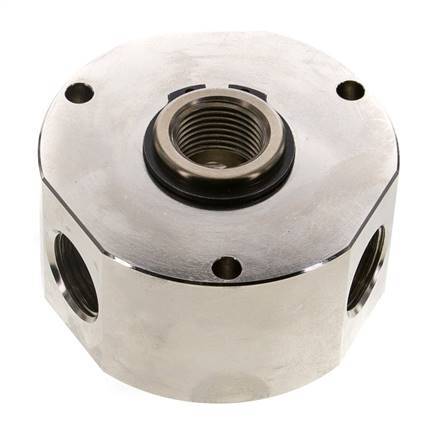

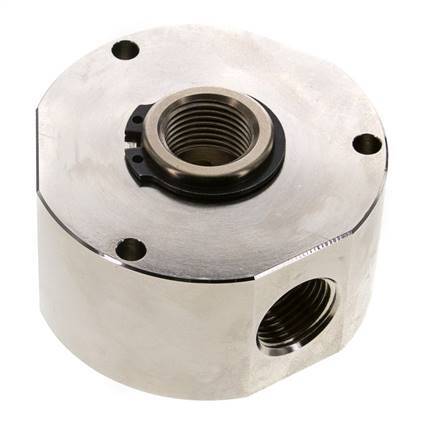

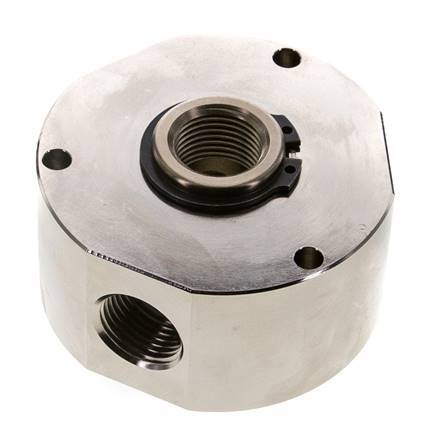

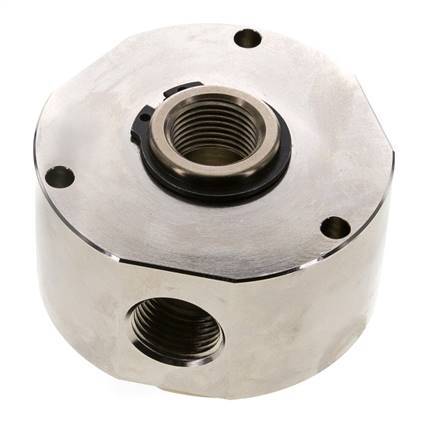

3-Way Rotary Joint 1/2'' x3/4'' Nickel-plated Brass NBR 12bar (168.6psi)

3-Way Rotary Joint 1/2'' x3/4'' Nickel-plated Brass NBR 12bar (168.6psi)
3-Way Rotary Joint 1/2'' x3/4'' Nickel-plated Brass NBR 12bar (168.6psi)
Image may vary slightly
See specifications for accurate information.
Reference: F2FGU
Brand: Tameson

This rotary joint has two inlets and three outlet ports. It is made of nickel-plated brass, which resists rust better than steel fittings and unfinished brass fittings. The maximum operating pressure is 12 bar (168.60000000000002 psi). The seal material is NBR .

View all
$411.44
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 8 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This rotary joint has two inlets and three outlet ports. It is made of nickel-plated brass, which resists rust better than steel fittings and unfinished brass fittings. The maximum operating pressure is 12 bar (168.60000000000002 psi). The seal material is NBR .

Downloads

Specifications

Thread
3/4 inch
Thread (smaller)
1/2 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Housing material.
Brass
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Nominal diameter
DN 14
Fitting features
5-way, Reducing
Min pressure (bar)
0.5
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
12
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
85
Max flow rate (l/min)
6200
Max. number of revolutions (Rpm)
160
Material connection 1
Brass
Surface protection connection 1
Nickel-plated
Material connection 2
Brass
Surface protection connection 2
Nickel-plated
Material connection 3
Brass
Surface protection connection 3
Nickel-plated
Angle adjustable
No
With drain
No
