Image may vary slightly
See specifications for accurate information.
Reference: F2EVG
Brand: Tameson

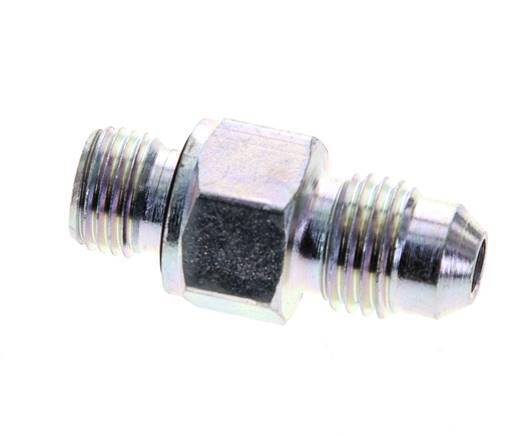

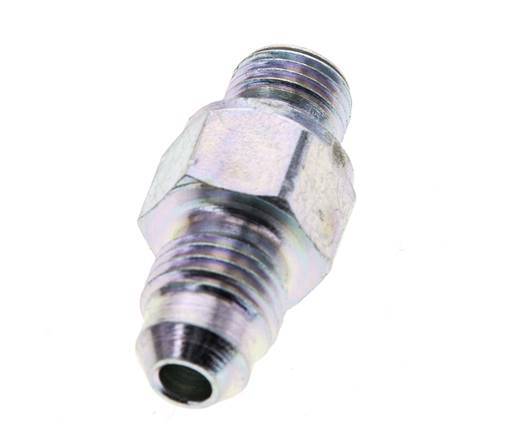

This is a JIC double nipple with M and UNF threads. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The seal material is NBR. The maximum operating pressure is 310 bar (4355.5 psi).

View all
$7.06 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 17 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Related products

Description

This is a JIC double nipple with M and UNF threads. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The seal material is NBR. The maximum operating pressure is 310 bar (4355.5 psi).

Specifications

Thread
UNF 7/16-20
Thread (smaller)
M10 x 1
Connection type
Outer thread metric, Outer thread flare (UNF)
Materiali
Steel
Seal materiali
NBR (nitrile rubber)
Max pressure at 20 °Ci
310 bar
Min temperaturei
-30 °C
Max temperaturei
100 °C
Fitting features
Reducing
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Surface protection connection 2
Galvanic zink plated
Shape
Straight
With drain
No
