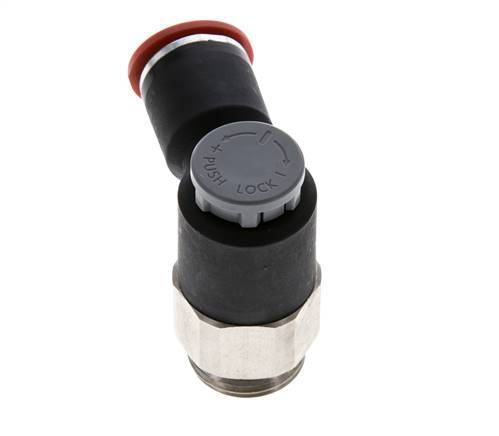

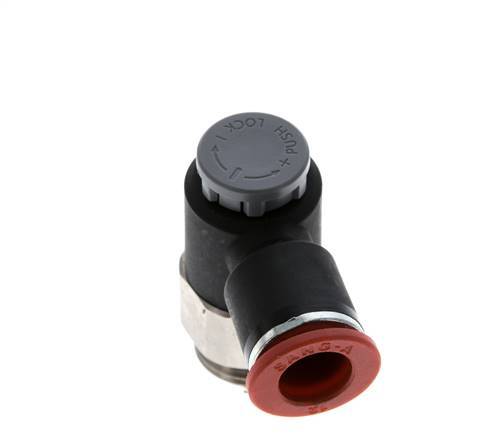

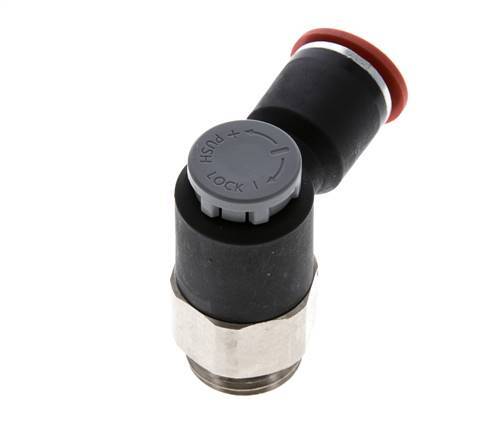

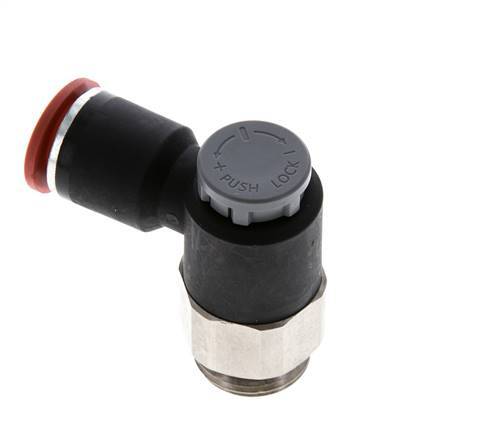

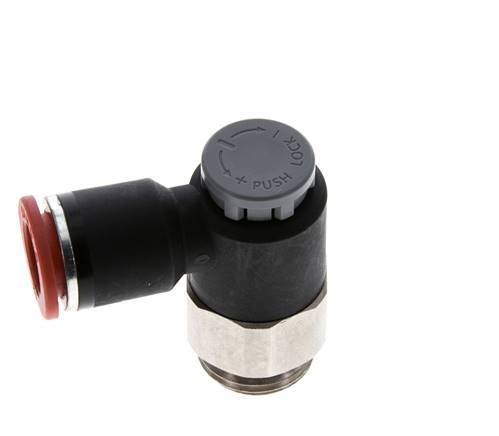

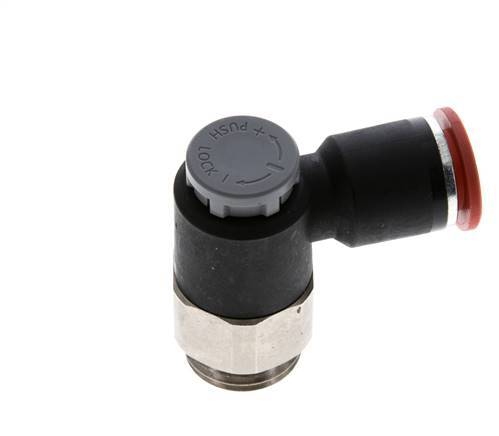

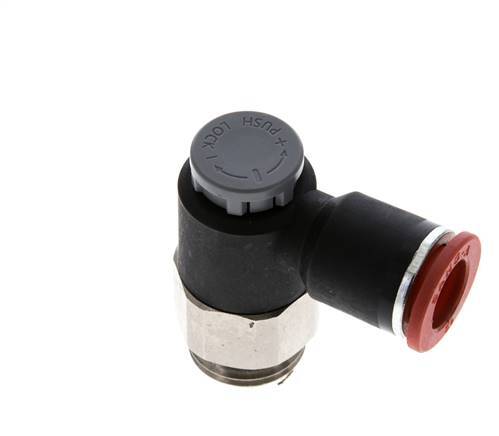

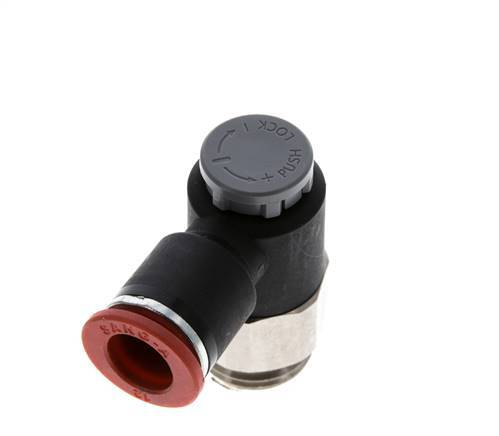

Flow Control Valve Meter-In Elbow 12 mm - G1/2'' Brass/PA 66 Locknut
This is a nickel-plated brass/PA 66 meter-in elbow pneumatic flow control valve for one-directional adjustable control of the air flow. It has a 12 mm push-in fitting on one side and a G 1/2 inch male threaded port on the other side. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction and fix it with a locknut.
- Regular price
- $24.71 USD
We sell only to registered businesses
Description
This is a nickel-plated brass/PA 66 meter-in elbow pneumatic flow control valve for one-directional adjustable control of the air flow. It has a 12 mm push-in fitting on one side and a G 1/2 inch male threaded port on the other side. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction and fix it with a locknut.
Pros:
- It has a push-in connection for easy installation and release for pneumatic hosing
- It can be used for vacuum applications
- After adjustment it can be locked by pressing the cap
