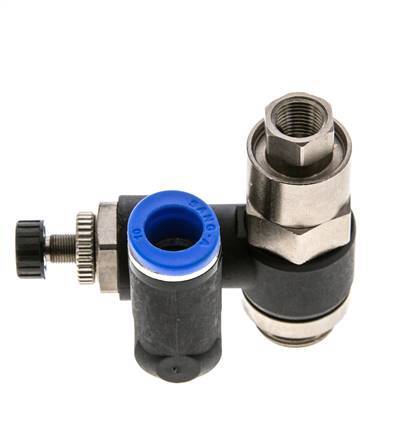

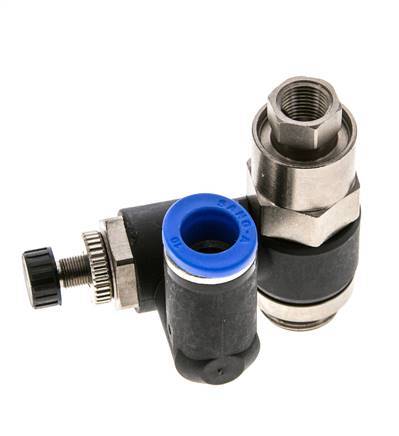

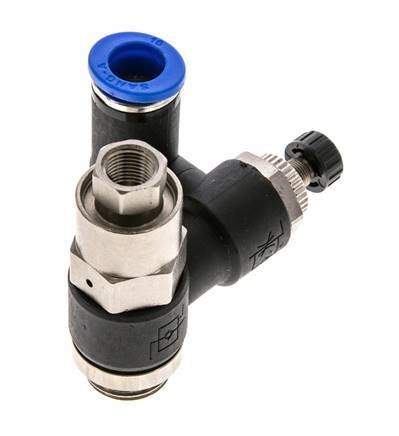

Flow Control Silencer Meter-Out Rotatable 10 mm - G3/8''-G1/8'' Brass/PA 66 with Pilot Operated Check Valve
This is a nickel-plated brass/PA 66 meter-out rotatable pneumatic flow control silencer for one-directional adjustable control of the air flow. It has a 10 mm push-in fitting on one side and a G 3/8 inch male threaded port on the other side. It has pilot operated check valve with G 1/8 inch female threaded port. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0 to 10 bar (0 to 145 psi). Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction. The check valve function can be used for a brief stop. If a control pressure is applied to the fitting, the air flows through the fitting. If no control pressure is applied, the valve blocks the flow.
- Regular price
- $93.05 USD
We sell only to registered businesses
Description
This is a nickel-plated brass/PA 66 meter-out rotatable pneumatic flow control silencer for one-directional adjustable control of the air flow. It has a 10 mm push-in fitting on one side and a G 3/8 inch male threaded port on the other side. It has pilot operated check valve with G 1/8 inch female threaded port. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0 to 10 bar (0 to 145 psi). Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction. The check valve function can be used for a brief stop. If a control pressure is applied to the fitting, the air flows through the fitting. If no control pressure is applied, the valve blocks the flow.
Pros:
- It has a push-in connection for easy installation and release for pneumatic hosing
- The threaded connection is positionable
- It has pilot operated check valve
