1-1/2'' SAE Flange Halves 6000 PSI Stainless Steel ISO 6162-2

1-1/2'' SAE Flange Halves 6000 PSI Stainless Steel ISO 6162-2
1-1/2'' SAE Flange Halves 6000 PSI Stainless Steel ISO 6162-2
Image may vary slightly
See specifications for accurate information.
Reference: F2DHP
Brand: Tameson

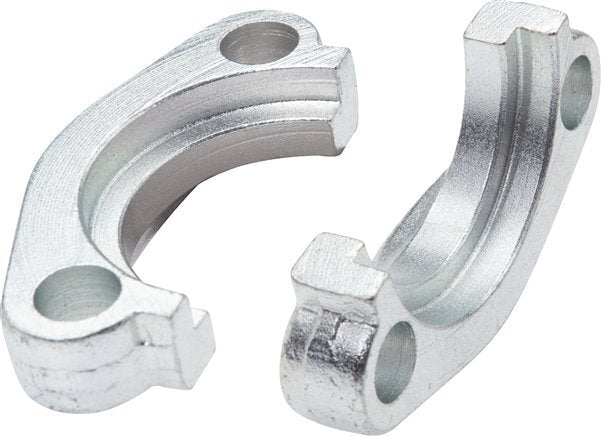

These are SAE flange halves for SAE fittings with a flange diameter of 63.5 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 1-1/2 inch. The body is made of stainless steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.

Note: The operating pressure is dependent on the strength of the screws.

View all
$296.41
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

These are SAE flange halves for SAE fittings with a flange diameter of 63.5 mm. They adhere to SAE Code 62 (6000 psi working pressure) and have an SAE-4 mounting pattern size of 1-1/2 inch. The body is made of stainless steel. The maximum pressure is 400 bar (5800 psi). It is made in accordance with the ISO 6162-2.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

  • Adheres to ISO 6162-2
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
SAE - hole pattern
1-1/2 inch - SAE (6000 PSI)
Number of bolt holes
4
Diameter bolt hole (mm)
17
Max pressure (bar)
400
Standard
Meet the requirements of an ISO or DIN Standard
ISO 6162-2
