1'' SAE Flange Halves 3000 PSI Steel ISO 6162-1

1'' SAE Flange Halves 3000 PSI Steel ISO 6162-1
1'' SAE Flange Halves 3000 PSI Steel ISO 6162-1
Image may vary slightly
See specifications for accurate information.
Reference: F2DGY
Brand: Tameson

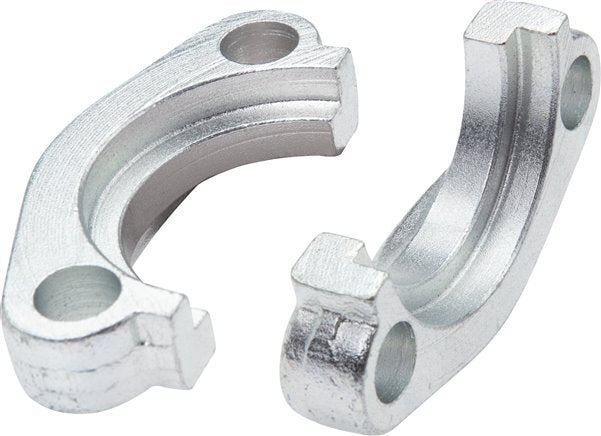

These are SAE flange halves for SAE fittings with a flange diameter of 44.5 mm. They adhere to SAE Code 61 (3000 psi working pressure) and have an SAE-4 mounting pattern size of 1 inch. The body is made of zinc plated steel. The maximum pressure is 315 bar (4568 psi). It is made in accordance with the ISO 6162-1.

Note: The operating pressure is dependent on the strength of the screws.

View all
$13.78 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days

We sell only to registered businesses

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications

Description

These are SAE flange halves for SAE fittings with a flange diameter of 44.5 mm. They adhere to SAE Code 61 (3000 psi working pressure) and have an SAE-4 mounting pattern size of 1 inch. The body is made of zinc plated steel. The maximum pressure is 315 bar (4568 psi). It is made in accordance with the ISO 6162-1.

Note: The operating pressure is dependent on the strength of the screws.

Pros:

  • Adheres to ISO 6162-1
  • Suitable for hydraulic applications

Specifications
