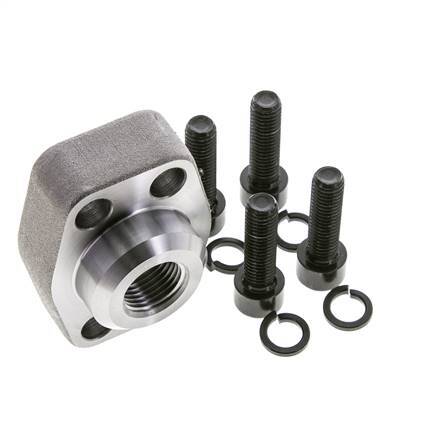

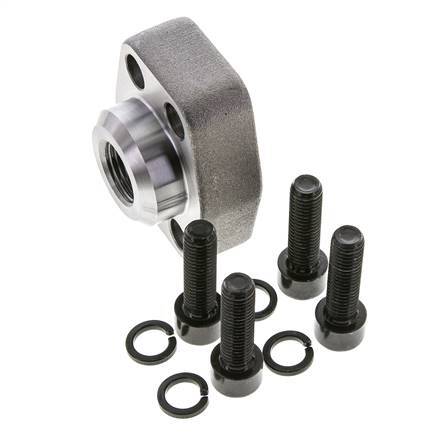

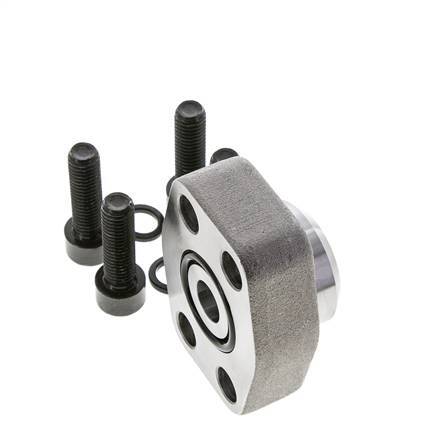

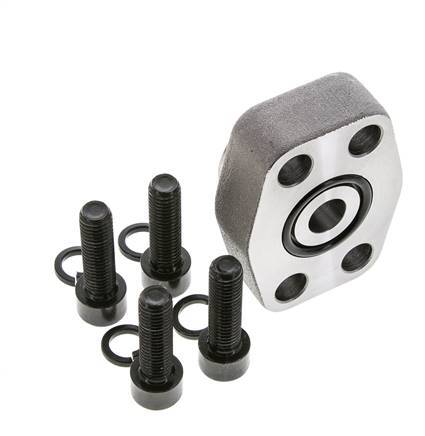

3/4'' SAE Flange 6000 PSI Plain Steel with G1/2'' Female Threads ISO 6162-2
This is an SAE flange with a female thread connection. It adheres to SAE Code 62 (6000 psi working pressure) and has an SAE-4 mounting pattern size of 3/4 inch. Connection 2 has G 1/2" female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 420 bar (6090 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-2.
- Regular price
- $54.66 USD
Description
This is an SAE flange with a female thread connection. It adheres to SAE Code 62 (6000 psi working pressure) and has an SAE-4 mounting pattern size of 3/4 inch. Connection 2 has G 1/2" female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 420 bar (6090 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-2.
Pros:
- Adheres to ISO 6162-2
- Suitable for hydraulic applications
