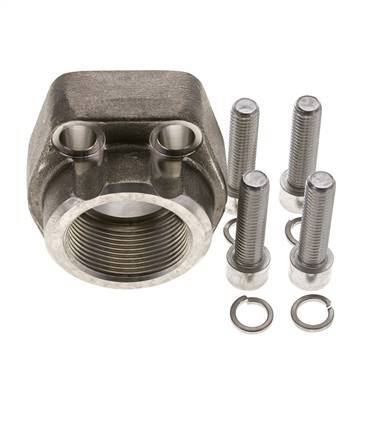

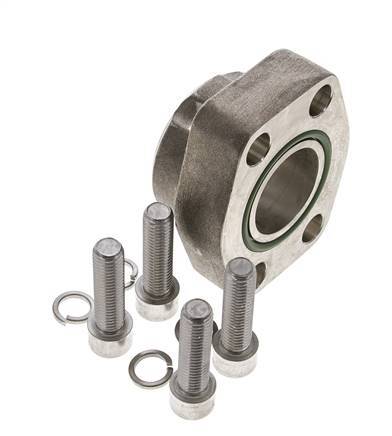

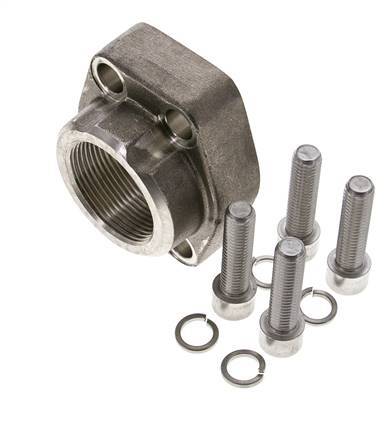

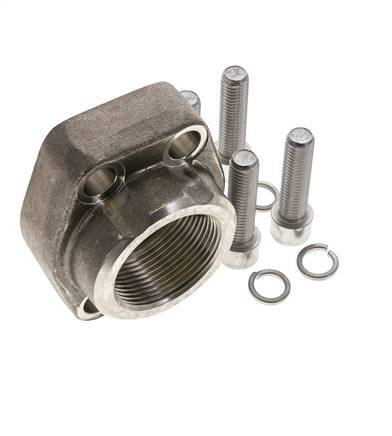

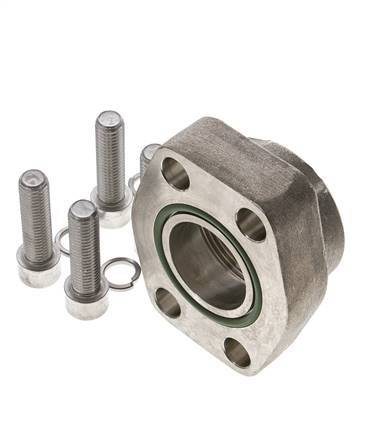

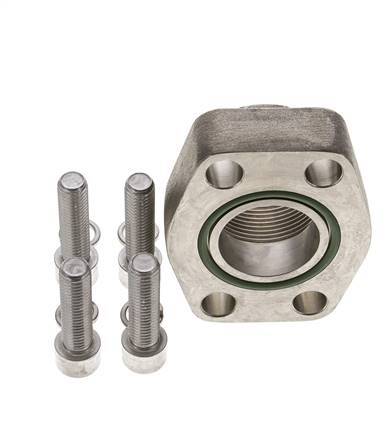

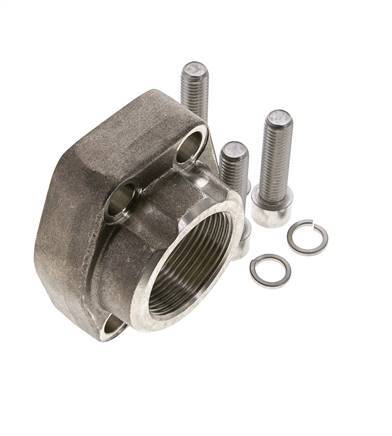

1-1/2'' SAE Flange 3000 PSI Stainless Steel with G1-1/2'' Female Threads ISO 6162-1
This is an SAE flange with a female thread connection. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/2 inch. Connection 2 has G 1-1/2" female threads. The body is made of stainless steel with an NBR seal. The maximum pressure is 210 bar (3045 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.
- Regular price
- $414.88
Description
This is an SAE flange with a female thread connection. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/2 inch. Connection 2 has G 1-1/2" female threads. The body is made of stainless steel with an NBR seal. The maximum pressure is 210 bar (3045 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.
Pros:
- Adheres to ISO 6162-1
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
