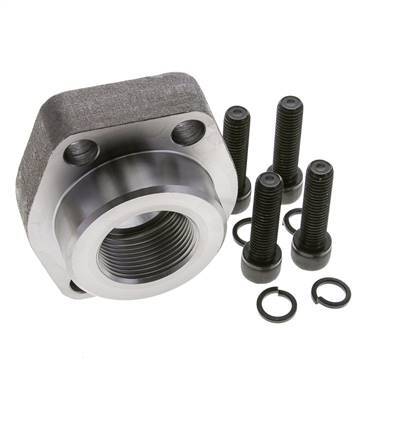

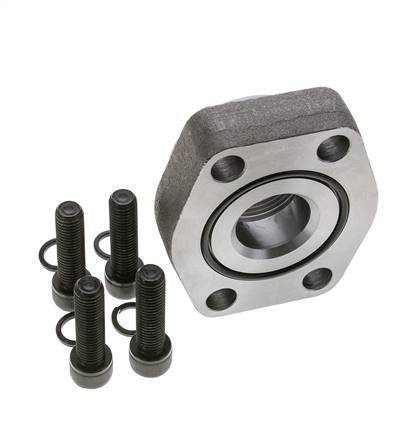

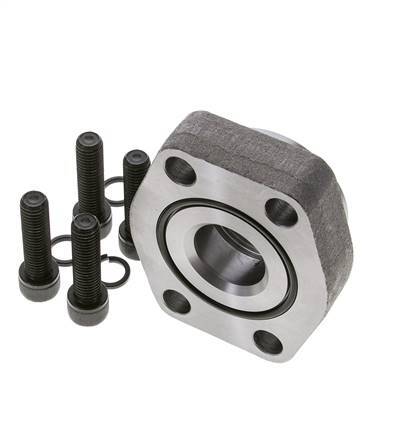

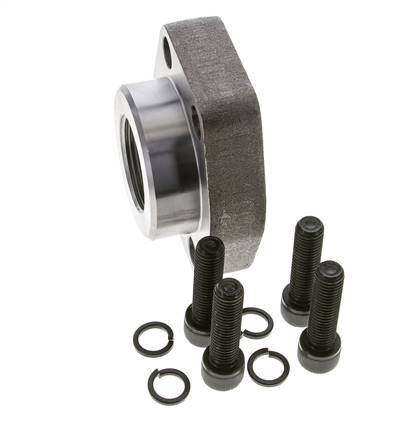

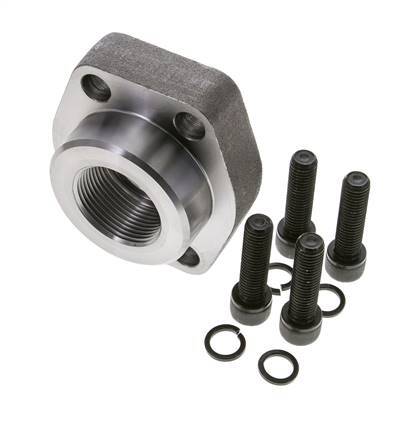

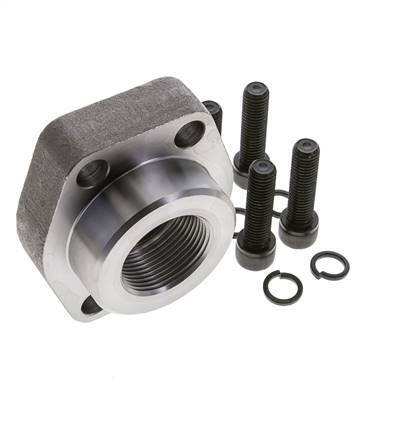

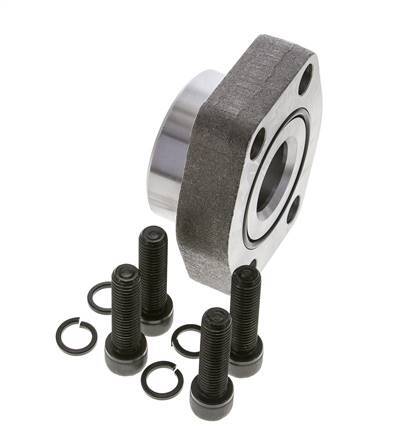

2'' SAE Flange 3000 PSI Plain Steel with G1-1/4'' Female Threads ISO 6162-1

2'' SAE Flange 3000 PSI Plain Steel with G1-1/4'' Female Threads ISO 6162-1
2'' SAE Flange 3000 PSI Plain Steel with G1-1/4'' Female Threads ISO 6162-1
Image may vary slightly
See specifications for accurate information.
Reference: F2DFQ
Brand: Tameson

This is an SAE flange with a female thread connection. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 2 inch. Connection 2 has G 1-1/4" female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 210 bar (3045 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

View all
$106.24
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is an SAE flange with a female thread connection. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 2 inch. Connection 2 has G 1-1/4" female threads. The body is made of plain steel with an NBR seal. The maximum pressure is 210 bar (3045 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

Pros:

  • Adheres to ISO 6162-1
  • Suitable for hydraulic applications

Downloads

Specifications

Thread
1 1/4 inch
SAE - hole pattern
2 inch - SAE (3000 PSI)
Connection type
Flange, Inner thread cylindrical BSPP-G
Material
Housing material.
Plain steel
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
210
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-30
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
90
Standard
Meet the requirements of an ISO or DIN Standard
ISO 6162-1
Material connection 1
Plain steel
Material connection 2
Plain steel
Shape
Straight
With drain
No
