1-1/2'' SAE Flange 3000 PSI Stainless Steel with 38S (M52x2) ISO 6162-1

1-1/2'' SAE Flange 3000 PSI Stainless Steel with 38S (M52x2) ISO 6162-1
1-1/2'' SAE Flange 3000 PSI Stainless Steel with 38S (M52x2) ISO 6162-1
Image may vary slightly
See specifications for accurate information.
Reference: F2DDY
Brand: Tameson

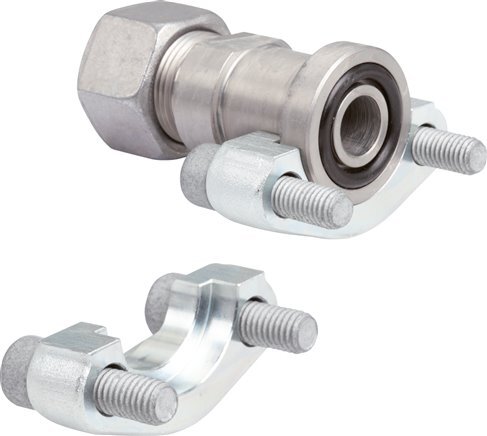

This is an SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/2 inch. Connection 2 is a 38 mm cutting ring with an M52x2 union nut. It has a flange diameter of 60.3 mm. The body is made of stainless steel with an NBR seal. The maximum pressure is 210 bar (3045 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

View all
$716.58 USD
excl VAT
In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 2 - 4 business days

We sell only to registered businesses

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications

Description

This is an SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1-1/2 inch. Connection 2 is a 38 mm cutting ring with an M52x2 union nut. It has a flange diameter of 60.3 mm. The body is made of stainless steel with an NBR seal. The maximum pressure is 210 bar (3045 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

Pros:

  • Adheres to ISO 6162-1
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Specifications
