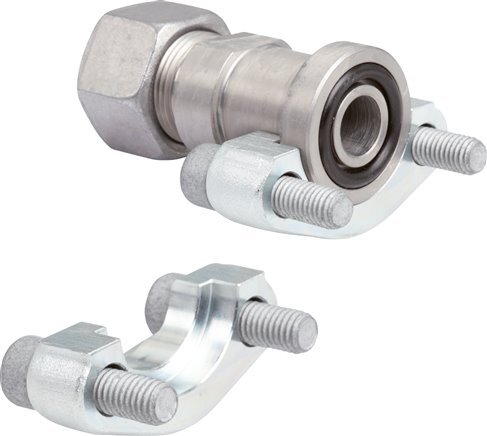

1'' SAE Flange 3000 PSI Stainless Steel with 25S (M36x2) ISO 6162-1

1'' SAE Flange 3000 PSI Stainless Steel with 25S (M36x2) ISO 6162-1
1'' SAE Flange 3000 PSI Stainless Steel with 25S (M36x2) ISO 6162-1
Image may vary slightly
See specifications for accurate information.
Reference: F2DDT
Brand: Tameson

This is an SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1 inch. Connection 2 is a 25 mm cutting ring with an M36x2 union nut. It has a flange diameter of 44.5 mm. The body is made of stainless steel with an NBR seal. The maximum pressure is 320 bar (4640 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

View all
$465.95
excl VAT
In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 2 - 3 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is an SAE flange with a cutting ring connection port. It adheres to SAE Code 61 (3000-5000 psi working pressure) and has an SAE-4 mounting pattern size of 1 inch. Connection 2 is a 25 mm cutting ring with an M36x2 union nut. It has a flange diameter of 44.5 mm. The body is made of stainless steel with an NBR seal. The maximum pressure is 320 bar (4640 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). It is made in accordance with the ISO 6162-1.

Pros:

  • Adheres to ISO 6162-1
  • Stainless steel material has better chemical resistance than other materials
  • Suitable for hydraulic applications

Downloads

Specifications

Flange diameter (mm)
44.5
Union nut thread
Thread size of the union nut
M36x2
SAE - hole pattern
1 inch - SAE (3000 PSI)
Load class (DIN 2353)
S (heavy)
Cutting ring connection (mm)
Size of the cutting ring connection
25
Connection type
Cutting ring, Flange
Material
Housing material.
Stainless steel
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
320
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-30
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
90
Standard
Meet the requirements of an ISO or DIN Standard
ISO 6162-1
Quality of material
Stainless steel (1.4571)
Material connection 1
Stainless steel
Material quality connection 1
Stainless steel (1.4571)
Material connection 2
Stainless steel
Material quality connection 2
Stainless steel (1.4571)
Shape
Straight
With drain
No
