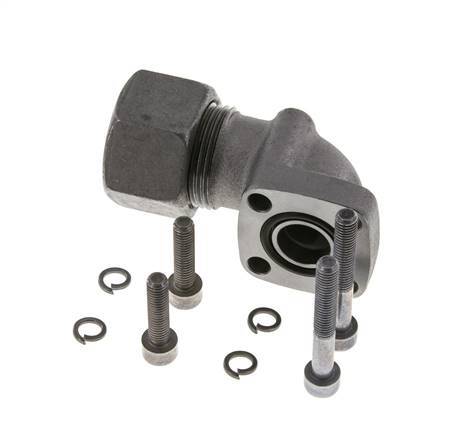

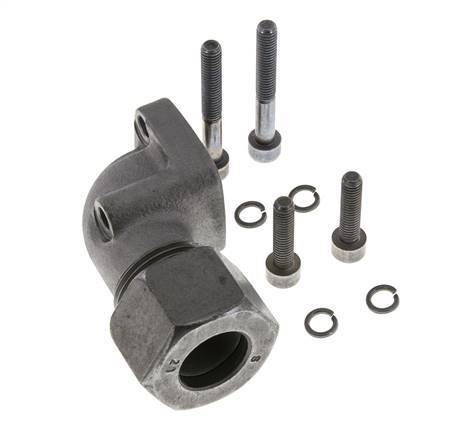

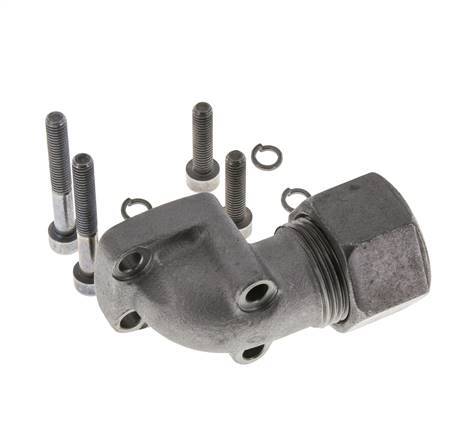

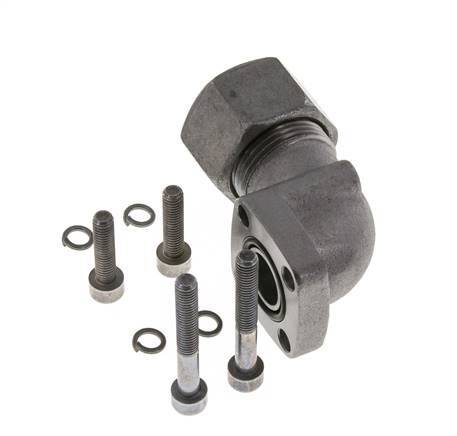

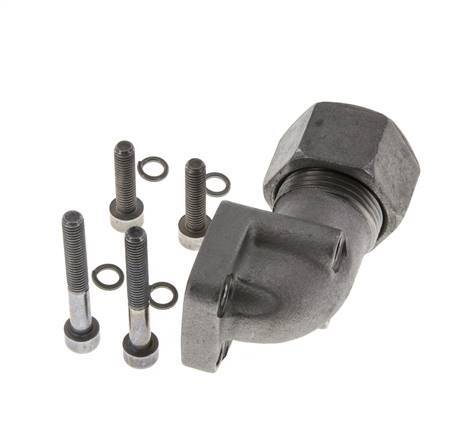

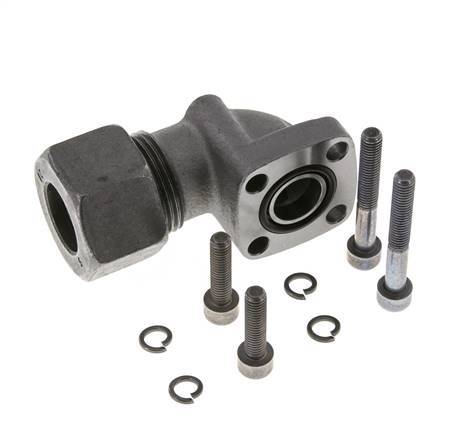

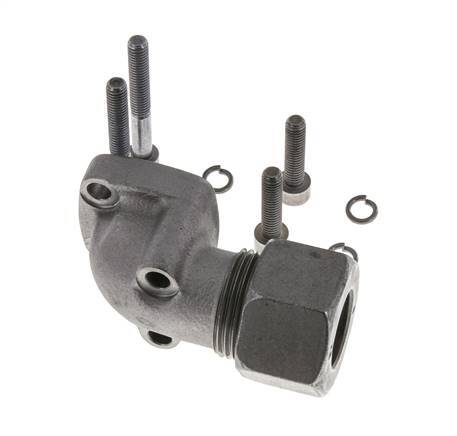

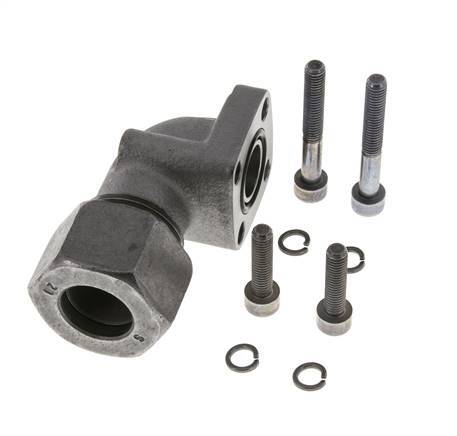

LK 35 Elbow Pump Flange Malleable cast iron with 20S (M30x2)
This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 35 flange size (square hole pattern). Connection 2 is a 20 mm cutting ring with an M30x2 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 315 bar (4568 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The two M6x22 bolts and two M6x45 bolts are included.
- Regular price
- $59.56 USD
We sell only to registered businesses
Description
This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 35 flange size (square hole pattern). Connection 2 is a 20 mm cutting ring with an M30x2 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 315 bar (4568 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The two M6x22 bolts and two M6x45 bolts are included.
Pros:
- Suitable for hydraulic applications
