Image may vary slightly
See specifications for accurate information.
Reference: F2DCP
Brand: Tameson

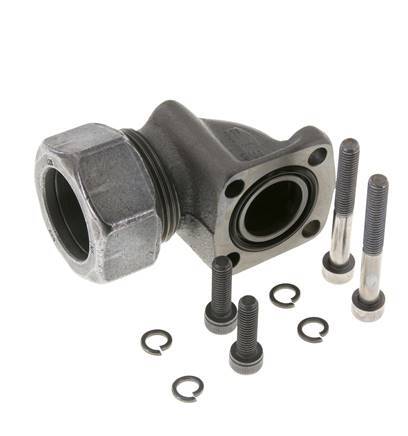

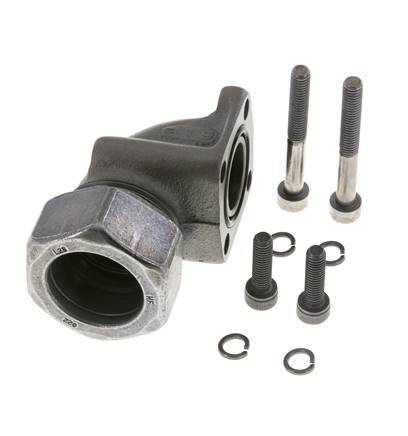

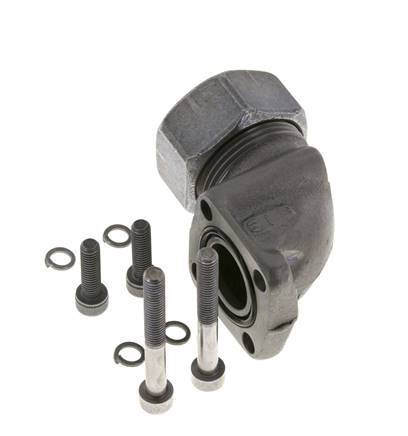

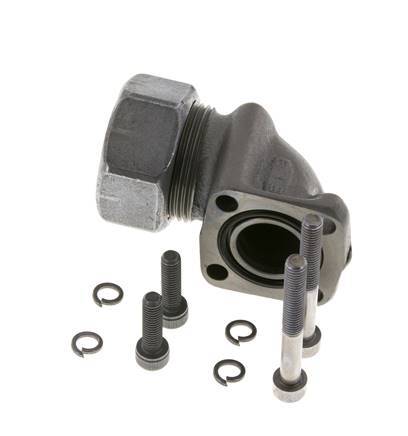

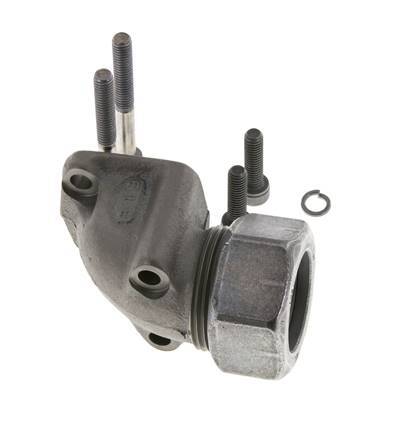

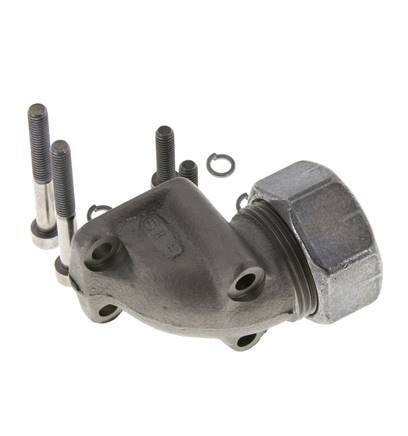

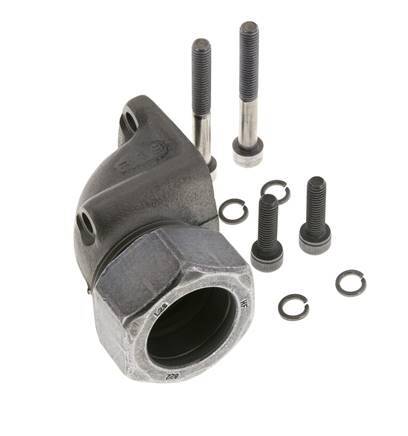

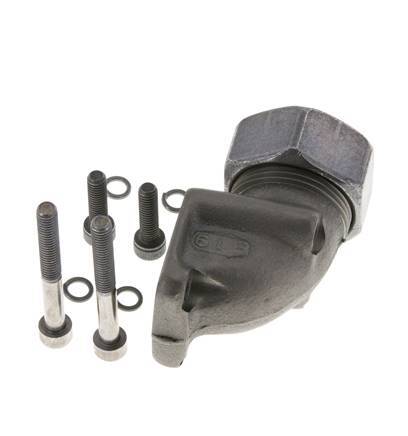

This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 40 flange size (square hole pattern). Connection 2 is a 28 mm cutting ring with an M36x2 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The two M6x22 bolts and two M6x50 bolts are included.

View all
$57.01 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 4 - 6 business days

We sell only to registered businesses

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications

Description

This is an elbow square pump flange with a cutting ring connection port. The flange connection point is an LK 40 flange size (square hole pattern). Connection 2 is a 28 mm cutting ring with an M36x2 union nut. The body is made of zinc plated malleable cast iron with an NBR seal. The maximum pressure is 100 bar (1450 psi) and the fitting is suitable for temperatures from -30 to 90 °C (-22 to 194 °F). The two M6x22 bolts and two M6x50 bolts are included.

Pros:

  • Suitable for hydraulic applications

Specifications
