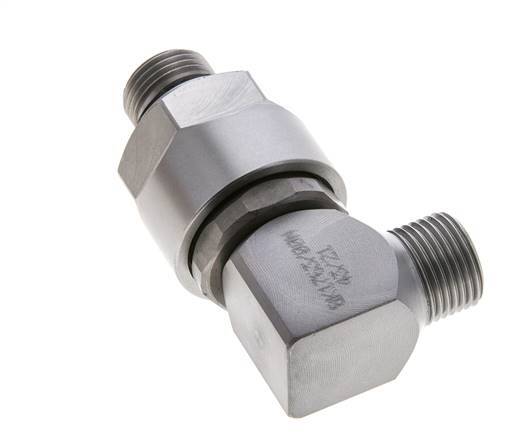

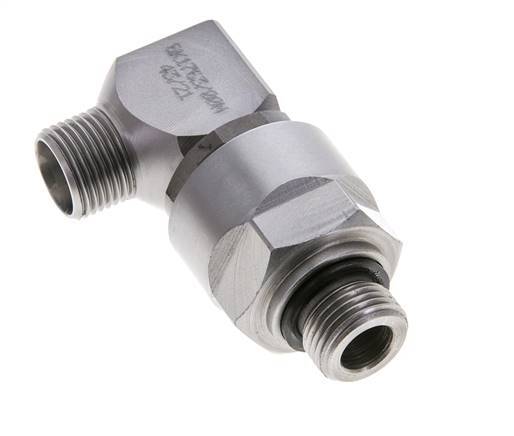

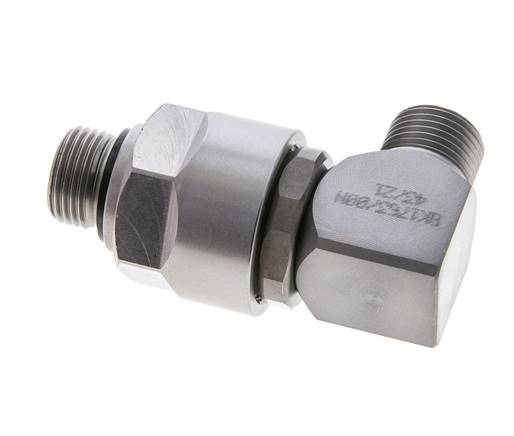

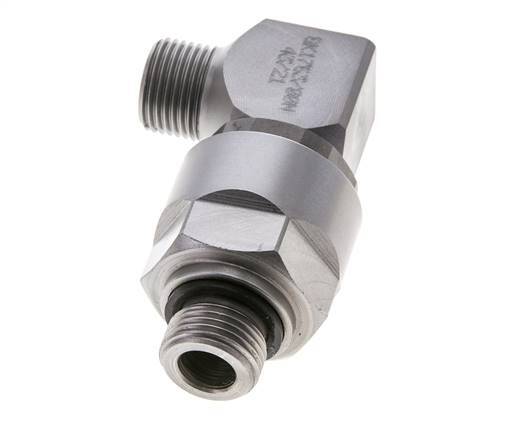

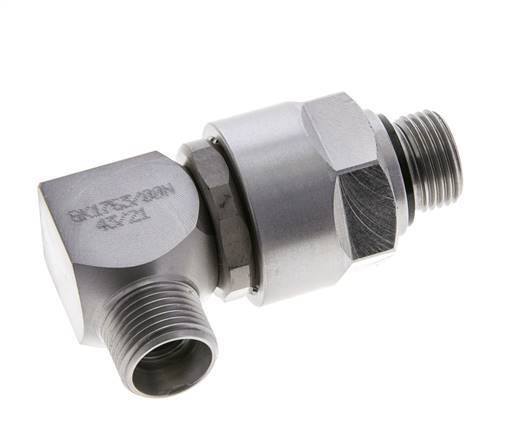

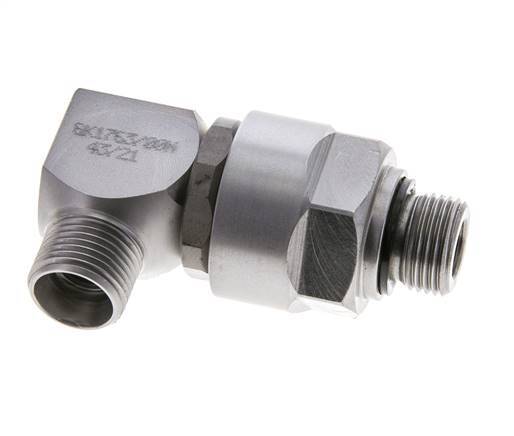

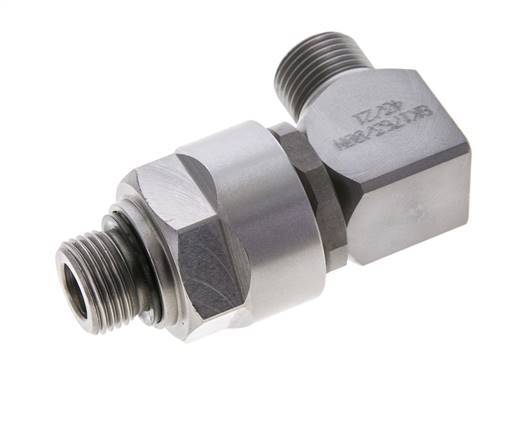

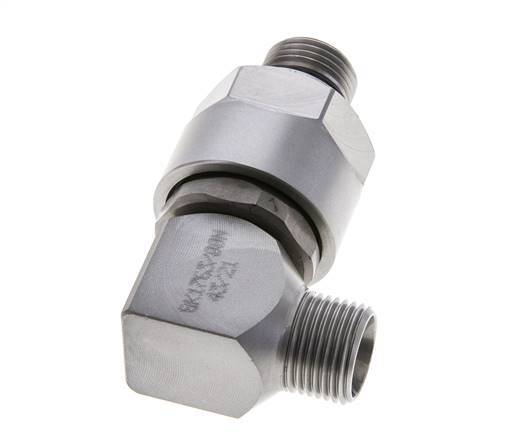

12L & M18x1.5 Zink plated Steel Elbow Ball-Guided Swivel Joint Cutting Fitting with Male Threads DN 10315 bar NBR ISO 8434-1
This zink plated steel elbow ball-guided screw connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 has male M 18x1.5 threads. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 10 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $199.93
Description
This zink plated steel elbow ball-guided screw connection is designed with one male threaded connection and one cutting ring connection port. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 has male M 18x1.5 threads. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 10 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
