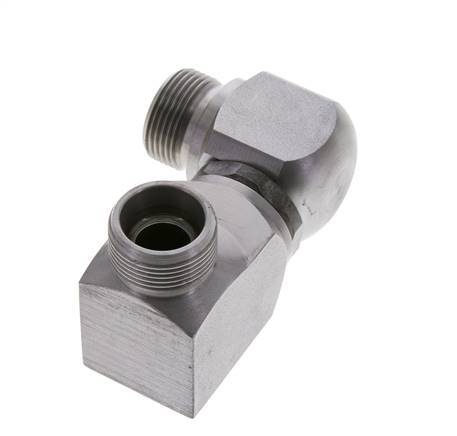

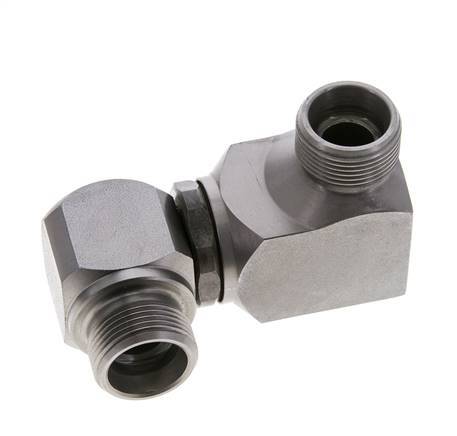

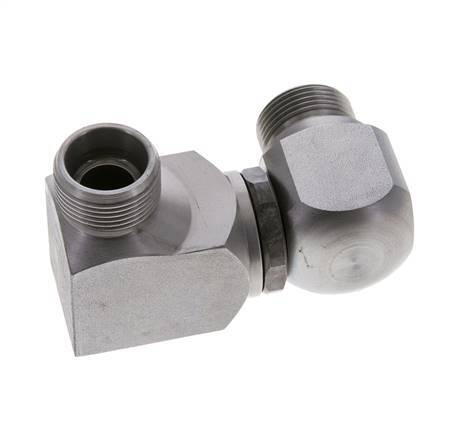

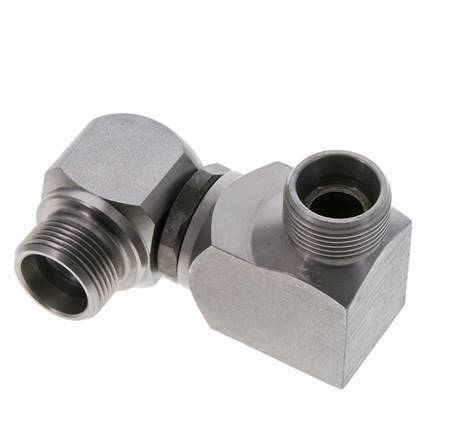

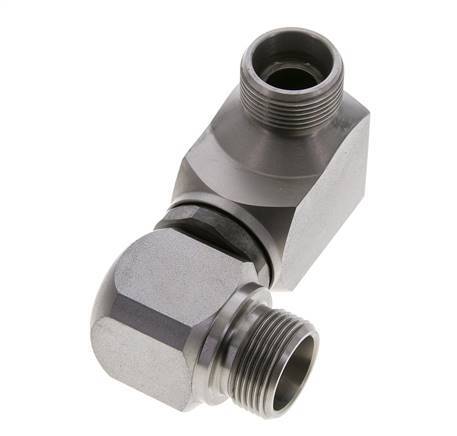

16S Zink plated Steel Ball-Guided Double Swivel Joint Cutting Fitting DN 12350 bar NBR ISO 8434-1
This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. The seal material is NBR. The maximum pressure is 350 bar (5075 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 12 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $300.02
Description
This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 16 mm cutting ring with a M24x1.5 union nut. Connection 2 is a 16 mm cutting ring with a M24x1.5 union nut. The seal material is NBR. The maximum pressure is 350 bar (5075 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 12 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
