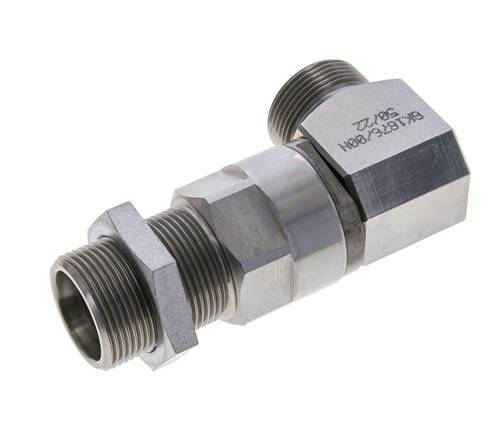

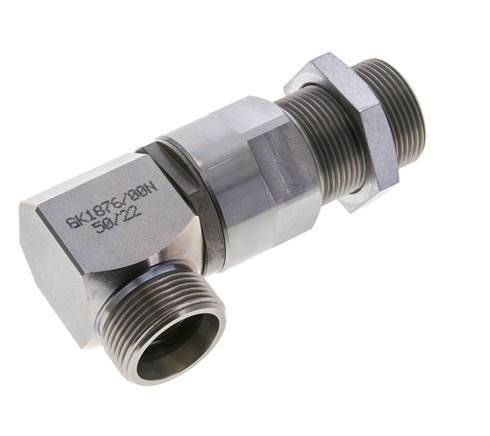

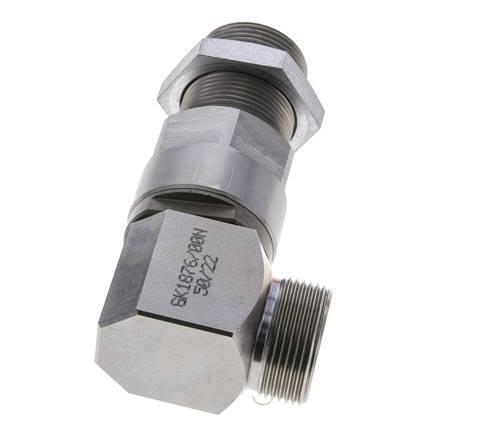

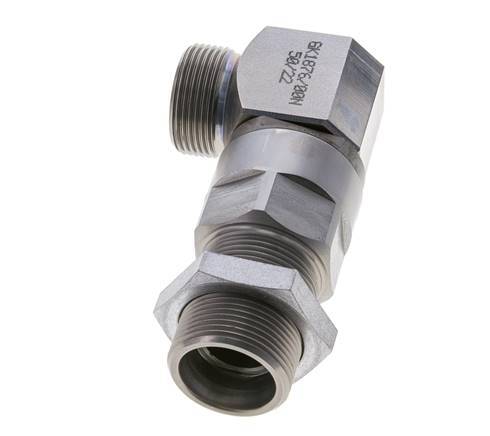

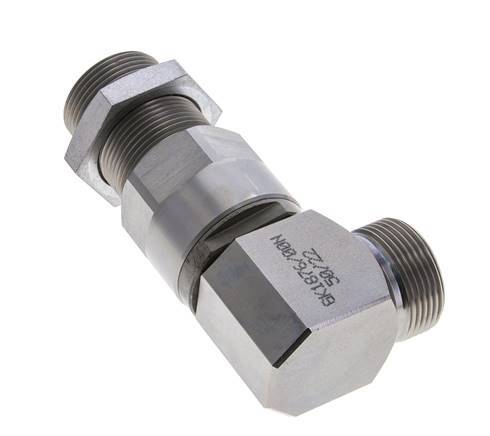

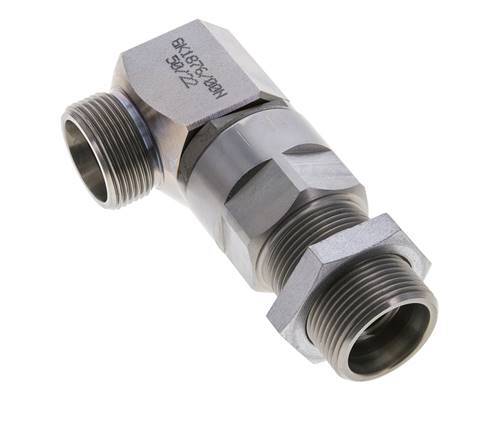

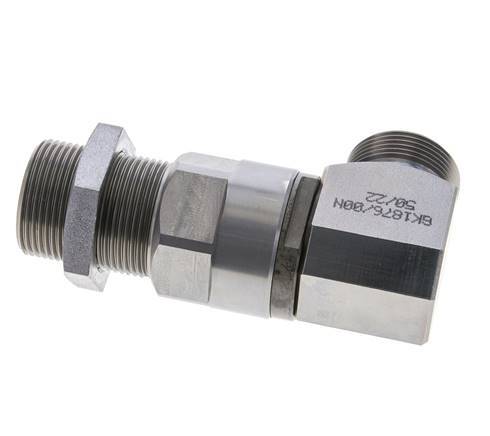

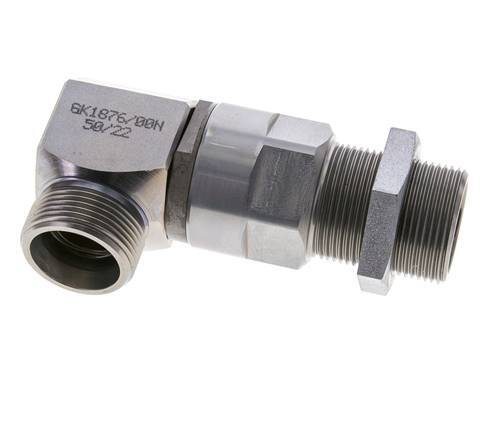

This zink plated steel elbow ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 25 mm cutting ring with a M36x2 union nut. Connection 2 is a 25 mm cutting ring with a M36x2 union nut. The seal material is NBR. The maximum pressure is 350 bar (5075 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 20 mm. The bulkhead thread has an M 36x2 thread with a length of 18 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

View all
$544.50
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 3 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This zink plated steel elbow ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 25 mm cutting ring with a M36x2 union nut. Connection 2 is a 25 mm cutting ring with a M36x2 union nut. The seal material is NBR. The maximum pressure is 350 bar (5075 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The nominal diameter is 20 mm. The bulkhead thread has an M 36x2 thread with a length of 18 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).

Pros:

  • Adheres to DIN EN ISO 8434-1 (DIN 2353)
  • Suitable for hydraulic applications

Downloads

Specifications

Union nut thread
Thread size of the union nut
M36x2
Load class (DIN 2353)
S (heavy)
Cutting ring connection (mm)
Size of the cutting ring connection
25
Connection type
Cutting ring
Material
Housing material.
Steel
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Nominal diameter (mm)
20
Max pressure at 20 °C (bar)
Maximum line pressure at room temperature.
350
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-20
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
90
Standard
Meet the requirements of an ISO or DIN Standard
DIN EN ISO 8434-1 (DIN 2353)
Fitting features
Bulkhead, Ball guided, High pressure
Bulkhead length (mm)
18
Bulkhead nut
M36x2.0
Max. number of revolutions (Rpm)
20
Material connection 1
Steel
Surface protection connection 1
Galvanic zink plated
Material connection 2
Steel
Shape
Elbow
Bend angle (°)
90
With drain
No
