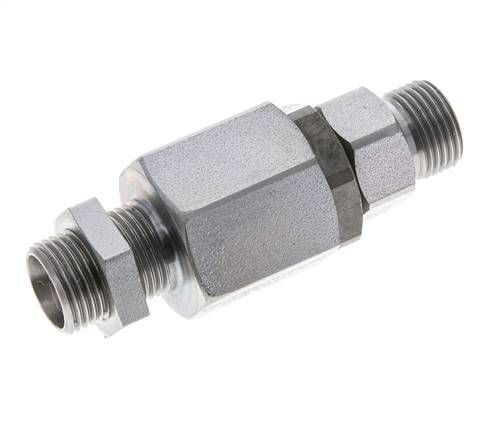

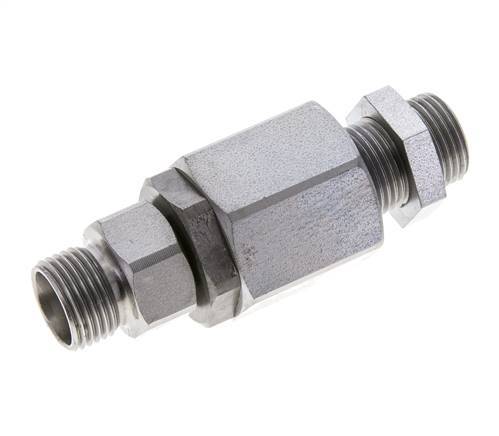

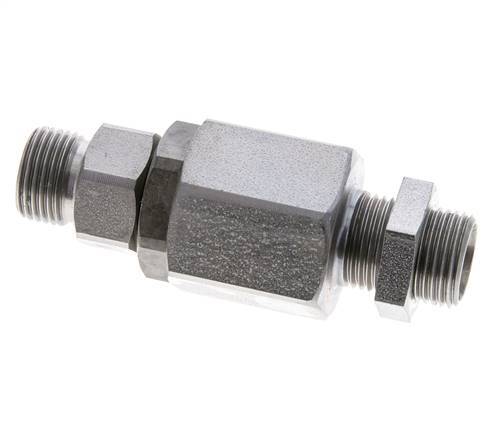

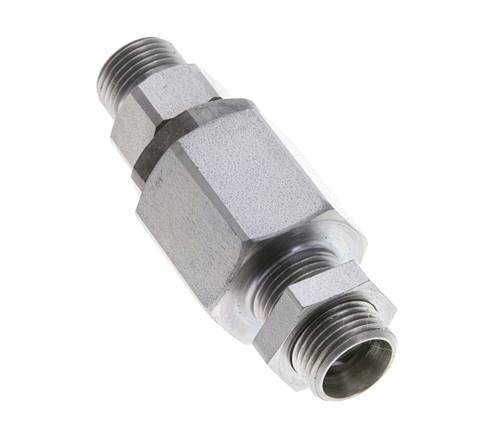

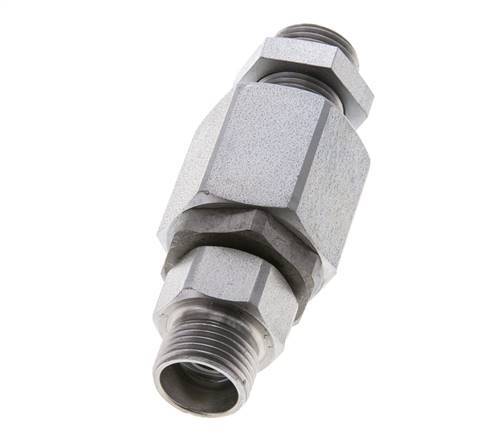

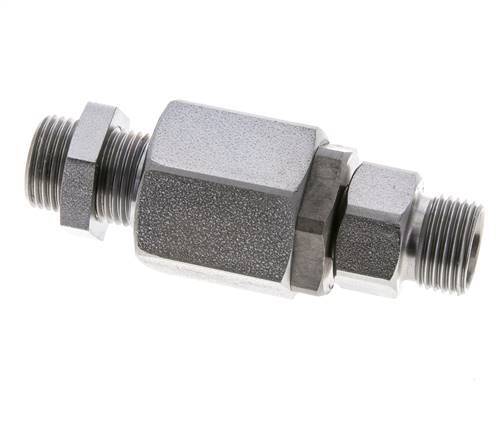

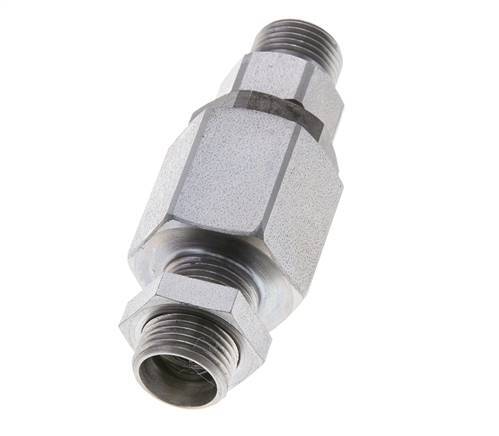

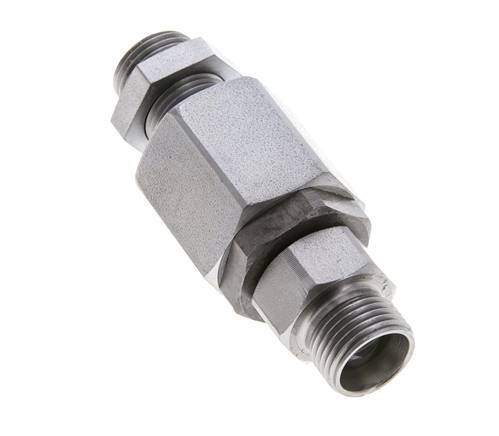

12L Zink plated Steel Ball-Guided Swivel Joint Cutting Fitting Bulkhead 315 bar NBR ISO 8434-1
This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 is a 12 mm cutting ring with a M18x1.5 union nut. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The bulkhead thread has an M 18x1.5 thread with a length of 7 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
- Regular price
- $259.87 USD
We sell only to registered businesses
Description
This zink plated steel straight ball-guided screw connection is designed with two cutting ring connection points. Connection 1 is a 12 mm cutting ring with a M18x1.5 union nut. Connection 2 is a 12 mm cutting ring with a M18x1.5 union nut. The seal material is NBR. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -20 to 90 °C (-4 to 194 °F). The bulkhead thread has an M 18x1.5 thread with a length of 7 mm. It can withstand 20 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for hydraulic applications
