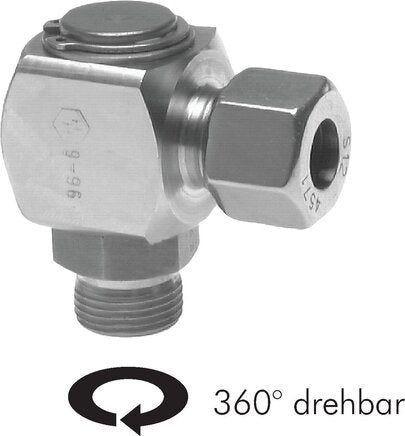

20S & M27x2 Stainless Steel Swivel Joint Cutting Fitting with Male Threads DN 16250 bar FKM Rotatable ISO 8434-1
Image may vary slightly
See specifications for accurate information.
Reference:
F2D8D
Brand:
Tameson
This stainless steel 1.4404 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connecti
- Regular price
- $803.52 USD
excl VAT
Shipping to United States: Free
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 2 - 4 business days
We sell only to registered businesses
Description
Specifications
Description
This stainless steel 1.4404 elbow swivel joint is designed with one male threaded connection and one cutting ring connection port. The thread connection is rotatable. Connection 1 is a 20 mm cutting ring with a M30x2 union nut. Connection 2 has male M 27x2 threads. The seal material is FKM. The maximum pressure is 250 bar (3625 psi). The fitting is suitable for temperatures from -20 to 120 °C (-4 to 248 °F). The nominal diameter is 16 mm. It can withstand 1 rotations per minute. It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Thread connection is rotatable
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
Cons:
- It is necessary to use a flexible connection
