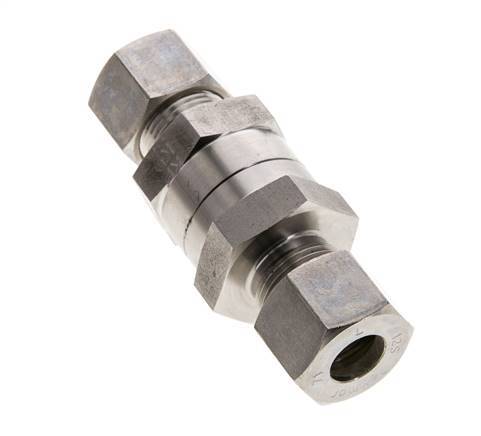

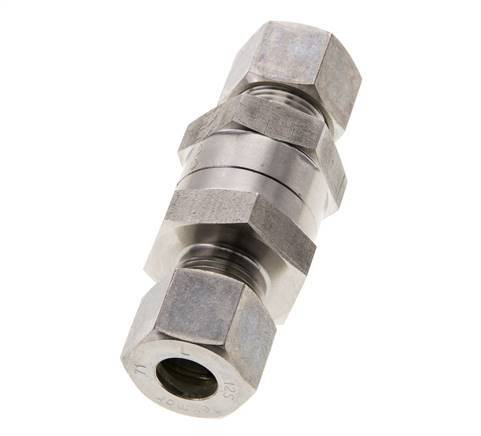

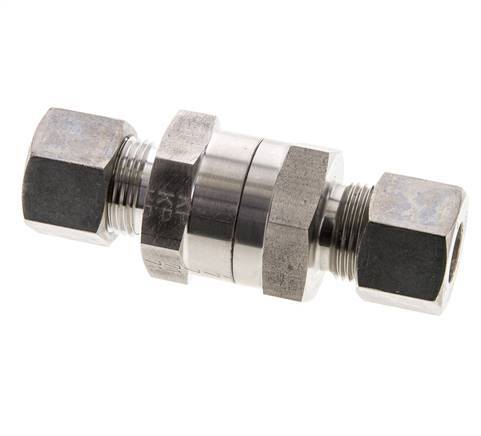

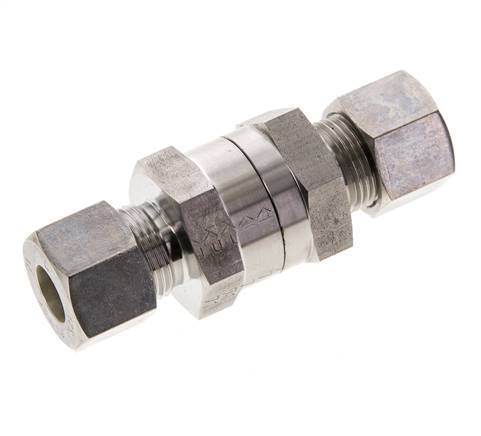

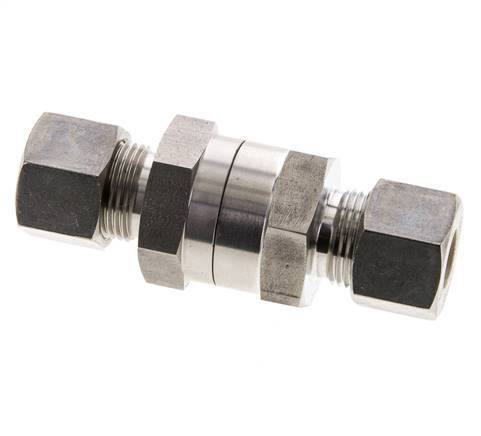

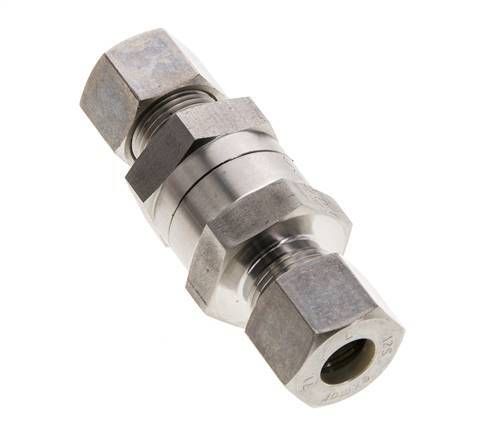

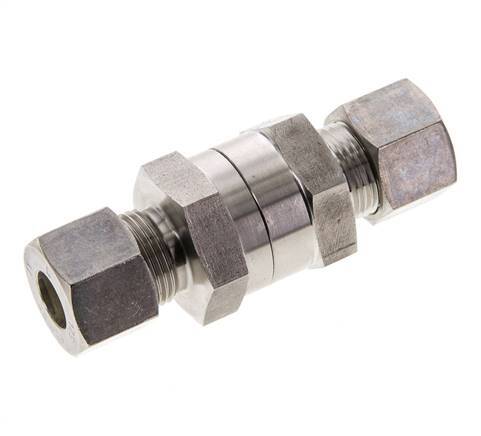

Hydraulic Check Valve Compression Ring 12S (M20x1.5) Stainless Steel 1-400bar (15-5800)psi ISO 8434-1
This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 12 mm compression ring with a M20x1.5 union nut on both sides. Rated for S (heavy) load classes. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 400 bar (15 to 5800 psi). It is made in accordance with ISO 8434-1.
- Regular price
- $150.18
Description
This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 12 mm compression ring with a M20x1.5 union nut on both sides. Rated for S (heavy) load classes. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 400 bar (15 to 5800 psi). It is made in accordance with ISO 8434-1.
Pros:
- Adheres to ISO 8434-1
- Stainless steel material has better chemical resistance than other materials
- Suitable for hydraulic applications
